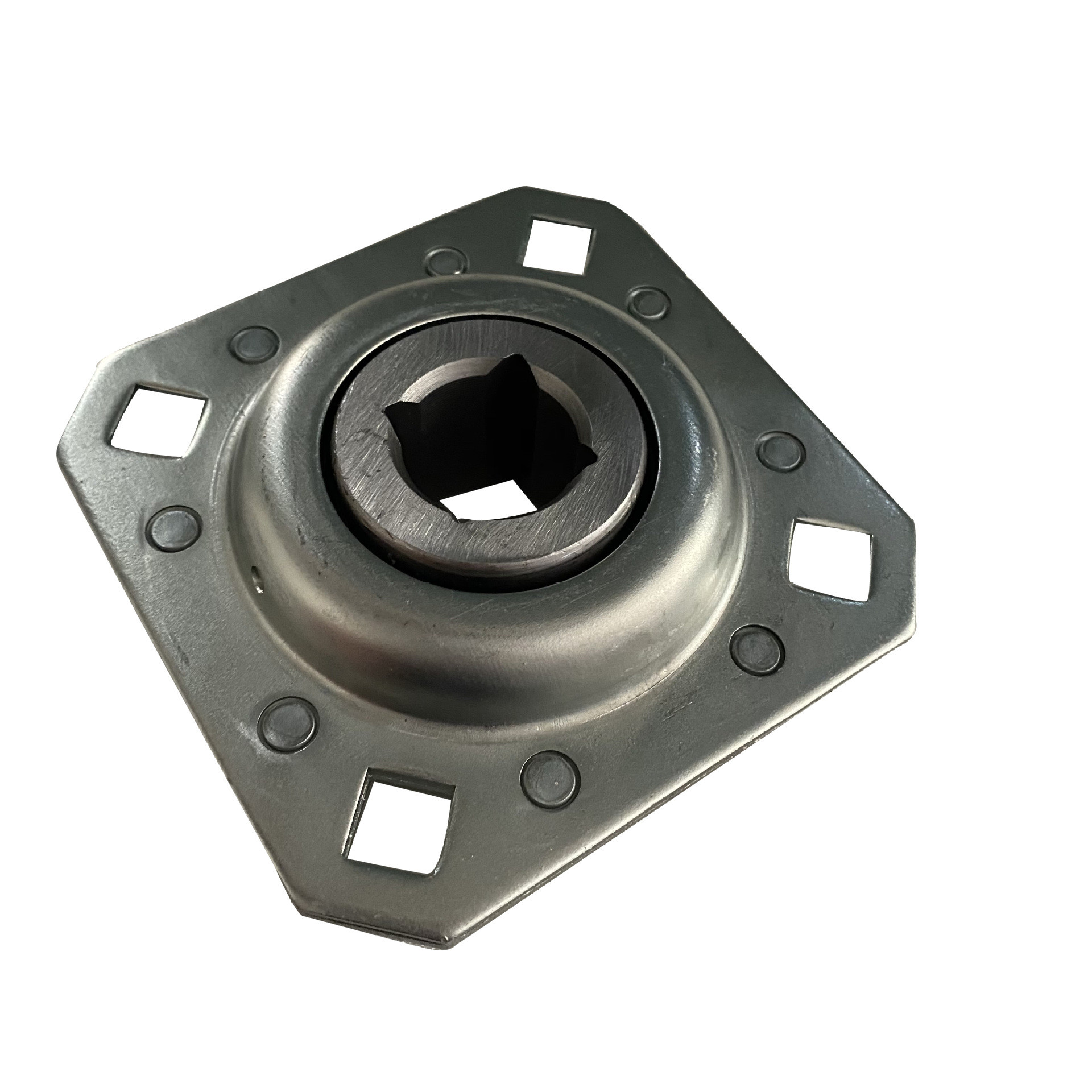

Agricultural Ball Bearing The Disk Harrow Unit Pillow Block Bearing FD209RB ST491 ST491A

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Pillow blocks, the most commonly used type of mounted units, are designed to provide shaft support where the mounting surface is parallel to the shaft axis. The bolt holes are usually slotted for adjustmentduring mounting. Pillow blocks are supplied in a variety of configurations. Pressed steel pillow block bearings are also available for light-duty applications.


Agricultural Ball Bearing The Disk Harrow Unit Pillow Block Bearing( FD209RB ST491 ST491A DHU1-3/4" R-211 FD211RJA FD211RJ FD211RB ST740 ST491B)

Product Parameters

Technical specification:

Agricultural bearings are used in conveyors, lawn mowers, combines, hay balers, planters/grain drills, augers, cotton strippers, and more. They are designed to stand up to extreme conditions and loads. There are many different designs available. Their basic components are inner and outer rings, balls, and retainers. The inner race can be round, square, or hex, and the outer race can be either cylindrical or spherical. Most agricultural bearings are sealed on both sides with single, double, or triple lip.

Agricultural Ball Bearing The Disk Harrow Unit Pillow Block Bearing( FD209RB ST491 ST491A DHU1-3/4" R-211 FD211RJA FD211RJ FD211RB ST740 ST491B)

Agricultural Ball Bearing The Disk Harrow Unit Pillow Block Bearing( FD209RB ST491 ST491A DHU1-3/4" R-211 FD211RJA FD211RJ FD211RB ST740 ST491B)
Agricultural Ball Bearing The Disk Harrow Unit Pillow Block Bearing( FD209RB ST491 ST491A DHU1-3/4" R-211 FD211RJA FD211RJ FD211RB ST740 ST491B)



Bearing NO. Dimensions(mm) Weight(kg)
D A C F J K
FD209RB 38.7 13.5 42.86 127 127 41.7 6.75 1.86
ST491 44.83 13.5 42.8 127 127 41.7 6.75 1.53
ST491A 45 13.5 42.7 127 127 41.7 6.75 1.52
DHU1-3/4" R-211 45 13.5 54 139.7 139.7 46 8 2.67
FD211RJA 49.21 13.5 49 139.7 139.7 46 8 2.58
FD211RJ 49.21 13.5 49 139.7 139.7 46 8 2.58
FD211RB 55.57 13.5 55.6 139.7 139.7 46 8 2.42
ST740 55.57 13.5 55.6 141.3 141.3 45 7 2.42
ST491B 38.7   42.86 127 127 41.7 6.75 1.58
FD209RM DHU1-1/8" S-209     42.86 127 127 41.7 6.75 1.86



Packaging & Shipping



Agricultural Ball Bearing The Disk Harrow Unit Pillow Block Bearing( FD209RB ST491 ST491A DHU1-3/4" R-211 FD211RJA FD211RJ FD211RB ST740 ST491B)


Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
