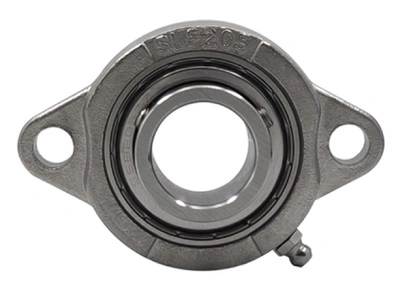

Pillow Block Bearing(SBLF206 SBLF206-17 SBLF206-18 )

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description


SBLF/SALF Light duty, Setscrew/Eccentric locking,Cast gray iron housing .

Product Parameters



Technical specification:

We can also offer stainless steel Pillow Block Bearing.


SBLF Series Pillow Block Bearing(SBLF206 SBLF206-17 SBLF206-18 SBLF206-19 SBLF206-20 SBLF207 SBLF207-20 SBLF207-21 SBLF207-22 SBLF207-23 SBLF208 SBLF208-24)
SBLF Series Pillow Block Bearing(SBLF206 SBLF206-17 SBLF206-18 SBLF206-19 SBLF206-20 SBLF207 SBLF207-20 SBLF207-21 SBLF207-22 SBLF207-23 SBLF208 SBLF208-24)
SBLF Series Pillow Block Bearing(SBLF206 SBLF206-17 SBLF206-18 SBLF206-19 SBLF206-20 SBLF207 SBLF207-20 SBLF207-21 SBLF207-22 SBLF207-23 SBLF208 SBLF208-24)
SBLF Series Pillow Block Bearing(SBLF206 SBLF206-17 SBLF206-18 SBLF206-19 SBLF206-20 SBLF207 SBLF207-20 SBLF207-21 SBLF207-22 SBLF207-23 SBLF208 SBLF208-24)

SBLF200 Seriers

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight
d H J A2 A1 A N L B s z (kg)
(in) (mm)
SBLF201   12 81 63.5 9.5 9.5 18.0 8 56 22 6.0 25.5 M6 0.27
SBLF201-8 1/2   81 63.5 9.5 9.5 18.0 8 56 22 6.0 25.5 M6 0.27
SBLF202   15 81 63.5 9.5 9.5 18.0 8 56 22 6.0 25.5 M6 0.25
SBLF202-9 9/16   81 63.5 9.5 9.5 18.0 8 56 22 6.0 25.5 M6 0.25
SBLF202-10 5/8   81 63.5 9.5 9.5 18.0 8 56 22 6.0 25.5 M6 0.25
SBLF203   17 81 63.5 9.5 9.5 18.0 8 56 22 6.0 25.5 M6 0.25
SBLF203-11 11/16   81 63.5 9.5 9.5 18.0 8 56 22 6.0 25.5 M6 0.25
SBLF204   20 90 71.5 11.0 11.0 20.0 10 61 25 7.0 29.0 M8 0.33
SBLF204-12 3/4   90 71.5 11.0 11.0 20.0 10 61 25 7.0 29.0 M8 0.33
SBLF205   25 95 76.0 11.0 11.0 20.0 10 64 27 7.5 30.5 M8 0.38
SBLF205-14 7/8   95 76.0 11.0 11.0 20.0 10 64 27 7.5 30.5 M8 0.38
SBLF205-15 15/16   95 76.0 11.0 11.0 20.0 10 64 27 7.5 30.5 M8 0.38
SBLF205-16 1   95 76.0 11.0 11.0 20.0 10 64 27 7.5 30.5 M8 0.38
SBLF206   30 113 90.5 12.0 12.0 22.5 12 76 30 8.0 34.0 M10 0.56
SBLF206-17 1-11/16   113 90.5 12.0 12.0 22.5 12 76 30 8.0 34.0 M10 0.56
SBLF206-18 1-1/8   113 90.5 12.0 12.0 22.5 12 76 30 8.0 34.0 M10 0.56
SBLF206-19 1-3/16   113 90.5 12.0 12.0 22.5 12 76 30 8.0 34.0 M10 0.56
SBLF206-20 1-1/4   113 90.5 12.0 12.0 22.5 12 76 30 8.0 34.0 M10 0.56
SBLF207   35 122 100 13 13.0 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-20 1-1/4   122 100 13 13.0 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-21 1-5/16   122 100 13 13.0 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-22 1-3/8   122 100 13 13.0 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-23 1-7/16   122 100 13 13.0 24 12 89 32 8.5 36.5 M10 0.8
SBLF208   40 150 119 13.5 13.0 25 14 106 34 9 38.5 M12 1.48
SBLF208-24 1-1/2   150 119 13.5 13.0 25 14 106 34 9 38.5 M12 1.48
SBLF208-25 1-9/16   150 119 13.5 13.0 25 14 106 34 9 38.5 M12 1.48

SALF200 Seriers

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A1 A N L B1 B s Z d1
(in) (mm)
SALF201   12 81 63.5 9.5 9.5 18.0 8 56 28.6 19.1 6.0 32.1 28.6 M6 0.28
SALF201-8 1/2   81 63.5 9.5 9.5 18.0 8 56 28.6 19.1 6.0 32.1 28.6 M6 0.28
SALF202   15 81 63.5 9.5 9.5 18.0 8 56 28.6 19.1 6.0 32.1 28.6 MS 0.28
SALF202-9 9/16   81 63.5 9.5 9.5 18.0 8 56 28.6 19.1 6.0 32.1 28.6 MS 0.28
SALF202-10 5/8   81 63.5 9.5 9.5 18.0 8 56 28.6 19.1 6.0 32.1 28.6 MS 0.28
SALF203   17 81 63.5 9.5 9.5 18.0 8 56 28.6 19.1 6.0 32.1 28.6 M6 0.28
SALF203-11 11/16   81 63.5 9.5 9.5 18.0 8 56 28.6 19.1 6.0 32.1 28.6 M6 0.28
SALF204   20 90 71.5 11.0 11.0 20.0 10 61 31 21.5 7.0 35 33.3 M8 0.33
SALF204-12 3/4   90 71.5 11.0 11.0 20.0 10 61 31 21.5 7.0 35 33.3 M8 0.33
SALF205   25 95 76.0 11.0 11.0 20.0 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF205-14 7/8   95 76.0 11.0 11.0 20.0 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF205-15 15/16   95 76.0 11.0 11.0 20.0 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF205-16 1   95 76.0 11.0 11.0 20.0 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF206   30 113 90.5 12.0 12.0 22.5 12 76 35.7 23.8 8.0 39.7 44.5 M10 0.6
SALF206-17 1-11/16   113 90.5 12.0 12.0 22.5 12 76 35.7 23.8 8.0 39.7 44.5 M10 0.6
SALF206-18 1-1/8   113 90.5 12.0 12.0 22.5 12 76 35.7 23.8 8.0 39.7 44.5 M10 0.6
SALF206-19 1-3/16   113 90.5 12.0 12.0 22.5 12 76 35.7 23.8 8.0 39.7 44.5 M10 0.6
SALF206-20 1-1/4   113 90.5 12.0 12.0 22.5 12 76 35.7 23.8 8.0 39.7 44.5 M10 0.6
SALF207   35 122 100 13.0 13.0 24.0 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-20 1-1/4   122 100 13.0 13.0 24.0 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-21 1-5/16   122 100 13.0 13.0 24.0 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-22 1-3/8   122 100 13.0 13.0 24.0 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-23 1-7/16   122 100 13.0 13.0 24.0 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF208   40 150 119 13.5 13 25 14 106 43.7 30.2 9 48.2 60.3 M12 1.48
SALF208-24 1-1/2   150 119 13.5 13 25 14 106 43.7 30.2 9 48.2 60.3 M12 1.48
SALF208-25 1-9/16   150 119 13.5 13 25 14 106 43.7 30.2 9 48.2 60.3 M12 1.48



Packaging & Shipping



SBLF Series Pillow Block Bearing(SBLF206 SBLF206-17 SBLF206-18 SBLF206-19 SBLF206-20 SBLF207 SBLF207-20 SBLF207-21 SBLF207-22 SBLF207-23 SBLF208 SBLF208-24)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
