Inch Size Needle Roller Thrust Bearing(TC2031 TC2233 TC2435 TC2840)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

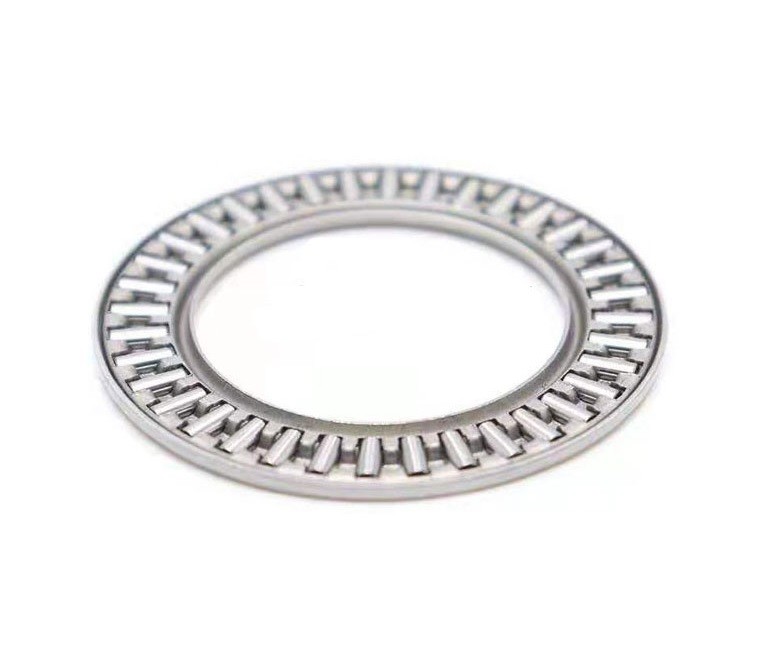

Needle Roller Thrust Bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer.


Inch Size Needle Roller Thrust Bearing(TC2031 TC2233 TC2435 TC2840) 0Needle Roller Bearings.pdf


Applications:

Product Parameters
Inch Size Needle Roller Thrust Bearing(TC2031 TC2233 TC2435 TC2840 TC3244 TC3648 TC4052 TC4860 TC5266 TC6681)
Inch Size Needle Roller Thrust Bearing(TC2031 TC2233 TC2435 TC2840 TC3244 TC3648 TC4052 TC4860 TC5266 TC6681)
Bearing No. Thrust Washer Boundary Dimensions (mm) Basic Load Rating (KN) Limited
Speed
Mass
B1=0.81 B1=1.6 B=2.337 B=3.2 d D Dw C Co rpm kg
TC411 TWA411 TWB411 TWC411 TWD411 6.350 17.450 1.984 4.88 10.64 16000 0.005
TC512 TWA512 TWB512 TWC512 TWD512 7.938 19.050 1.984 5.52 12.96 14400 0.006
TC613 TWA613 TWB613 TWC613 TWD613 7.525 20.638 1.984 5.76 14.24 12800 0.007
  TWA812 TWB812 TWC812 TWD812 12.700 19.050         0.004
TC815 TWA815 TWB815 TWC815 TWD815 12.700 23.813 1.984 6.80 18.88 10400 0.008
  TWA916 TWB916 TWC916 TWD916 14.290 25.400         0.009
TC1018 TWA1018 TWB1018 TWC1018 TWD1018 15.875 28.575 1.984 7.76 23.60 8800 0.011
  TWA1120 TWB1120 TWC1120 TWD1120 17.463 31.750         0.014
TC1220 TWA1220 TWB1220 TWC1220 TWD1220 19.050 31.750 1.984 8.56 28.40 7600 0.013
TC1423 TWA1423 TWB1423 TWC1423 TWD1423 22.225 36.513 1.984 10.32 37.20 6400 0.017
TC1427 TWA1427 TWB1427 TWC1427 TWD1427 22.225 42.863 1.984 15.68 66.40 6000 0.026
TC1625 TWA1625 TWB1625 TWC1625 TWD1625 25.400 39.688 1.984 11.20 43.20 6000 0.018
TC1726         26.988 41.275 1.984 13.84 58.40 5600
TC1828 TWA1828 TWB1828 TWC1828 TWD1828 28.575 44.450 1.984 13.68 58.40 5200 0.023
TC1931         30.163 49.213 1.984 16.00 72.80 4800
TC2031 TWA2031 TWB2031 TWC2031 TWD2031 31.750 49.213 1.984 16.00 72.80 4800 0.028
TC2233 TWA2233 TWB2233 TWC2233 TWD2233 34.925 52.388 1.984 16.40 76.80 4400 0.030
TC2435 TWA2435 TWB2435 TWC2435 TWD2435 38.100 55.563 1.984 17.28 84.00 4000 0.032
TC2840 TWA2840 TWB2840 TWC2840 TWD2840 44.450 63.500 1.984 19.92 106.4 3520 0.020
TC3244 TWA3244 TWB3244 TWC3244 TWD3244 50.800 69.850 1.984 20.80 116.00 3200 0.045
  TWA3446 TWB3446 TWC3446 TWD3446 53.975 73.020         0.048
TC3648 TWA3648 TWB3648 TWC3648 TWD3648 57.150 76.200 1.984 21.20 124.80 2880 0.050
TC4052 TWA4052 TWB4052 TWC4052 TWD4052 63.500 82.550 1.984 22.00 133.60 2640 0.055
  TWA4458 TWB4458 TWC4458 TWD4458 69.850 92.070
TC4860 TWA4860 TWB4860 TWC4860 TWD4860 76.200 95.000 1.984 23.60 151.20 2240
TC5266 TWA5266 TWB5266 TWC5266 TWD5266 82.550 104.775 3.175 38.80 216.00 2080 0.082
  TWA6074 TWB6074 TWC6074 TWD6074 95.250 117.475         0.093
TC6681 TWA6681 TWB6681 TWC6681 TWD6681 104.775 128.588 3.175 50.40 328.00 1680 0.109
Packaging & Shipping

Inch Size Needle Roller Thrust Bearing(TC2031 TC2233 TC2435 TC2840 TC3244 TC3648 TC4052 TC4860 TC5266 TC6681)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
