| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-10 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |

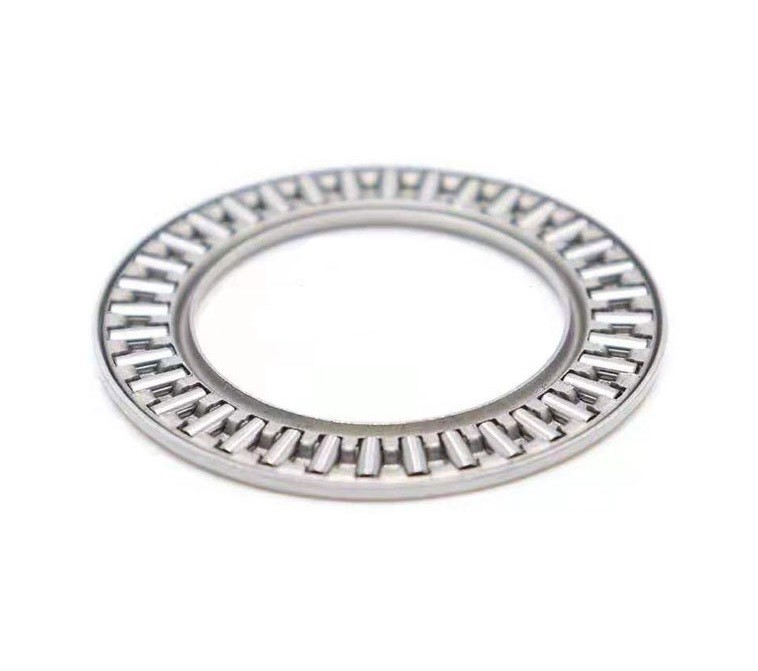

Needle Roller Thrust Bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer.
Applications:
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) |
Limited Speed |
Mass | |||||||
| d | D | B | Eb | Ea | C | Co | rpm | kg | |||
| AR4.5 10 22 | 10 | 22.0 | 4.50 | 12.2 | 18.5 | 6.56 | 14.32 | 12400 | 0.007 | ||
| AR5 12 26 | 12 | 26.0 | 5.00 | 14.8 | 22.9 | 10.16 | 23.60 | 10400 | 0.011 | ||
| AR5 15 28 | 15 | 28.0 | 5.00 | 16.8 | 24.9 | 11.20 | 27.20 | 9200 | 0.011 | ||
| AR5 17 30 | 17 | 30.0 | 5.00 | 18.8 | 26.9 | 12.00 | 31.20 | 8400 | 0.013 | ||
| AR7 20 35 | 20 | 35.0 | 7.00 | 22.0 | 31.5 | 17.60 | 43.20 | 7200 | 0.022 | ||
| AR7 25 42 | 25 | 42.0 | 7.00 | 27.7 | 37.3 | 20.40 | 56.00 | 6000 | 0.031 | ||
| AR7 25 52 | 25 | 52.0 | 7.00 | 29.0 | 47.0 | 26.00 | 97.60 | 5200 | 0.070 | ||
| AR7 30 47 | 30 | 47.0 | 7.00 | 32.7 | 42.3 | 21.20 | 61.60 | 5200 | 0.036 | ||
| AR81206 | 30 | 52.0 | 11.75 | 32.8 | 47.0 | 38.40 | 93.60 | 5040 | 0.085 | ||
| AR9 30 60 | 30 | 60.0 | 9.00 | 33.5 | 53.5 | 36.80 | 129.60 | 4480 | 0.113 | ||
| AR8 35 53.4 | 35 | 53.4 | 8.00 | 37.8 | 47.8 | 27.04 | 75.20 | 4400 | 0.052 | ||
| AR81207 | 35 | 62.0 | 12.75 | 38.6 | 54.8 | 52.80 | 132.00 | 4240 | 0.132 | ||
| AR9 35 68 | 35 | 68.0 | 9.00 | 39.0 | 60.6 | 40.80 | 155.20 | 3920 | 0.144 | ||
| AR9 40 60.4 | 40 | 60.4 | 9.00 | 42.8 | 54.8 | 36.80 | 103.20 | 4000 | 0.070 | ||
| AR81208 | 40 | 68.0 | 14.00 | 43.6 | 61.8 | 65.60 | 167.20 | 3840 | 0.169 | ||
| AR11 40 78 | 40 | 78.0 | 11.00 | 44.0 | 70.0 | 56.80 | 212.00 | 3360 | 0.225 | ||
| AR9 45 65.4 | 45 | 65.4 | 9.00 | 47.8 | 59.8 | 39.20 | 114.40 | 3600 | 0.077 | ||
| AR81209 | 45 | 73.0 | 14.50 | 48.6 | 66.8 | 68.00 | 180.00 | 3440 | 0.197 | ||
| AR14 45 85 | 45 | 85.0 | 14.00 | 49.0 | 77.0 | 65.60 | 272.00 | 3040 | 0.350 | ||
| AR9 50 70.4 | 50 | 70.4 | 9.00 | 52.8 | 64.8 | 40.80 | 125.60 | 3200 | 0.082 | ||
| AR81210 | 50 | 78.0 | 15.50 | 53.6 | 71.8 | 74.40 | 204.00 | 3200 | 0.234 | ||
| AR14 50 95 | 50 | 95.0 | 14.00 | 54.0 | 86.0 | 86.40 | 344.00 | 2720 | 0.448 | ||
| AR10 55 78.4 | 55 | 78.4 | 10.00 | 58.5 | 72.5 | 48.80 | 162.40 | 3040 | 0.125 | ||
| AR81211 | 55 | 90.0 | 18.00 | 59.8 | 82.0 | 99.20 | 284.00 | 2880 | 0.381 | ||
| AR14 55 105 | 55 | 105.0 | 14.00 | 60.2 | 96.2 | 100.00 | 424.00 | 2480 | 0.537 | ||
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
