Single Direction 29 Series Thrust Ball Bearings (2908 2909 2910 2911 2912 2913 2914 2915)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Thrust ball bearing is designed to withstand thrust load when running at high speed and is composed of washer-like rings with ball rolling raceway groove. Because the ring is in the shape of seat, thrust ball bearings are divided into two types: flat base cushion type and aligning spherical cushion type. In addition, these bearings can withstand axial loads but not radial loads.

According to the force, it is divided into single direction or double direction thrust ball bearings. Single direction thrust ball bearing, can bear single direction axial load. Double direction thrust ball bearing, can withstand double direction axial load, wherein shaft ring and shaft match.
The mounting surface of the seat ring is spherical bearing with self-aligning performance, which can reduce the influence of installation error.

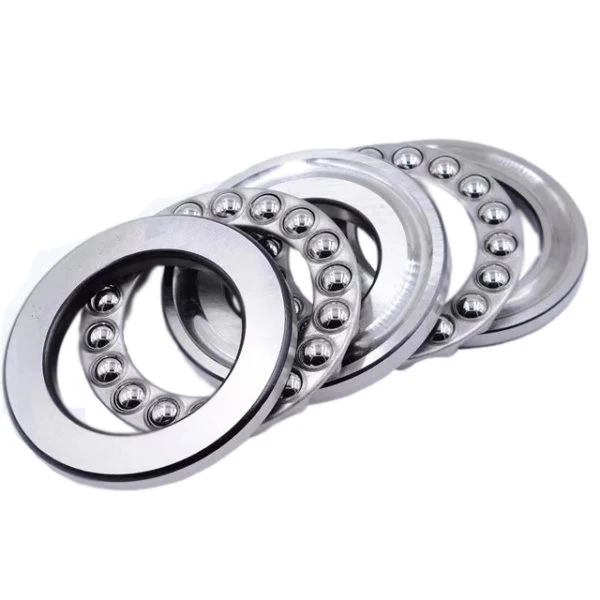

Thrust ball bearing is composed of three parts: seat ring, shaft ring and ball cage assembly.
The shaft ring matched with the shaft ring and the seat ring matched with the housing.

Applications:
Crane Hook,
Vertical Water Pump
Vertical Centrifuge
Jack
Low Speed Reducer etc.

Product Parameters

29 Series Single Direction Thrust Ball Bearings


Single Direction 29 Series Thrust Ball Bearings (2908 2909 2910 2911 2912 2913 2914 2915)
Single Direction 29 Series Thrust Ball Bearings (2908 2909 2910 2911 2912 2913 2914 2915)
Bearing No. Boundry Dimension (mm) Mass
d d2 D T kg
2900 10 10.2 26 12 0.033
2901 12 12.2 28 12 0.037
2902 15 15.2 31 12 0.041
2903 18 18.2 35 12 0.045
2904 20 20.2 37 12 0.055
2904 1/2 22 22.5 42 14 0.084
2905 25 25.2 45 14 0.094
2906 30 30.2 50 14 0.108
2907 35 35.2 55 16 0.138
2908 40 40.2 60 16 0.154
2909 45 45.2 68 16 0.200
2910 50 50.2 74 18 0.257
2911 55 55.2 78 18 0.264
2912 60 60.2 82 18 0.270
2913 65 65.2 90 20 0.372
2914 70 70.2 95 20 0.396
2915 75 75.2 100 20 0.420
Packaging & Shipping

Single Direction 29 Series Thrust Ball Bearings (2908 2909 2910 2911 2912 2913 2914 2915)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
