Miniature Thrust Ball Bearings( F2-6 F2X-7 F3-8 F4-9 F4-10 F5-11 F6-12 F7-15 F8-16 F9-17 F10-18)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Thrust ball bearing is designed to withstand thrust load when running at high speed and is composed of washer-like rings with ball rolling raceway groove. Because the ring is in the shape of seat, thrust ball bearings are divided into two types: flat base cushion type and aligning spherical cushion type. In addition, these bearings can withstand axial loads but not radial loads.

According to the force, it is divided into single direction or double direction thrust ball bearings. Single direction thrust ball bearing, can bear single direction axial load. Double direction thrust ball bearing, can withstand double direction axial load, wherein shaft ring and shaft match.
The mounting surface of the seat ring is spherical bearing with self-aligning performance, which can reduce the influence of installation error.

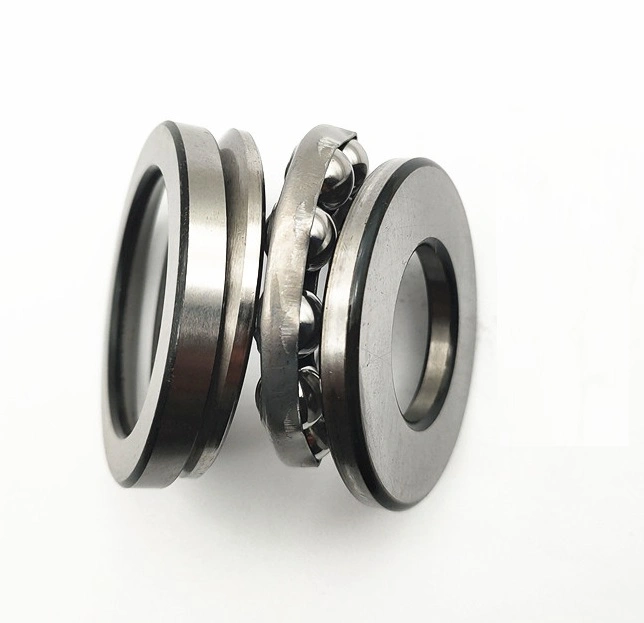

Thrust ball bearing is composed of three parts: seat ring, shaft ring and ball cage assembly.
The shaft ring matched with the shaft ring and the seat ring matched with the housing.

Applications:
Crane Hook,
Vertical Water Pump
Vertical Centrifuge
Jack
Low Speed Reducer etc.

Product Parameters

F Series Single Direction Thrust Ball Bearings

These miniature thrust bearings have two types with flat or grooved raceway, grooved raceway has higher load than flat raceway.

Miniature Thrust Ball Bearings( F2-6 F2X-7 F3-8 F4-9 F4-10 F5-11 F6-12 F7-15 F8-16 F9-17 F10-18)
Miniature Thrust Ball Bearings( F2-6 F2X-7 F3-8 F4-9 F4-10 F5-11 F6-12 F7-15 F8-16 F9-17 F10-18)

F series with flat raceway

model d(mm)
bore
D(mm)
outer
d1(mm)
outer ring bore
D1(mm)
inner ring outer
H(mm)
height
Dynamic Load
Cr(N)
Static Load
Cor(N)
grease
limiting
speed
(rpm)
oil
limiting
speed
(rpm)
Mass
(g)
F2-6 2 6 2 6 3 117 83 16000 13000 0.6
F2X-7 2.5 7 2.5 7 3.5 156 117 15000 12000 0.9
F3-8 3 8 3.2 7.8 3.5 166 137 11000 15000 0.6
F4-9 4 9 4.2 8.8 4 166 156 8000 12000 1.5
F4-10 4 10 4.2 9.8 4 274 245 6000 10000 2
F5-11 5 11 5.2 10.8 4.5 284 284 5000 8000 2.4
F6-12 6 12 6.2 11.8 4.5 274 284 5000 7000 2.5
F7-15 7 15 7.2 14.8 5 558 548 3600 7100 4.4
F8-16 8 16 8.2 15.8 5 597 627 4000 8000 5
F9-17 9 17 9.2 16.8 5 437 542 8000 13000 5.1
F10-18 10 18 10.2 17.8 5.5 617 705 2500 4500 6

FM series with grooved raceway

model d(mm)
bore
D(mm)
outer
d1(mm)
outer ring bore
D1(mm)
inner ring outer
H(mm)
height
Dynamic load
Cr(N)
Static load
Cor(N)
grease
limiting
speed
(rpm)
oil
limiting
speed
(rpm)
weight
(g)
F3-8M 3 8 3.2 7.8 3.5 600 480 11000 15000 0.9
F4-9M 4 9 4.2 8.8 4 800 520 8000 12000 1.2
F4-10M 4 10 4.2 9.8 4 658 580 6000 10000 1.5
F5-10M 5 10 5.2 9.8 4 950 830 5100 8100 2.1
F5-11M 5 11 5.2 10.8 4.5 988 880 5000 8000 2.1
F5-12M 5 12 5.2 11.8 4 988 880 5000 8000 2.1
F6-12M 6 12 6.2 11.8 4.5 1600 1255 5000 7000 2.2
F6-13M 6 13 6.2 12.8 5 1600 1255 5000 7000 2.2
F6-14M 6 14 6.25 13.8 5 1800 1588 4000 7000 3.5
F7-13M 7 13 7.2 16.8 4.5 1422 1255 4000 7000 2.6
F7-15M 7 15 7.2 14.8 5 2200 2000 3600 7100 6.5
F7-17M 7 17 7.2 16.8 6 2600 2256 3500 7000 6.5
F8-16M 8 16 8.2 15.8 5 2500 3000 4000 8000 4.5
F8-19M 8 19 8.2 18.8 7 3452 3000 3000 5000 9.1
F9-20M 9 20 9.2 19.8 7 3356 2999 2500 4500 9.9
F10-18M 10 18 10.2 17.8 5.5 2230 2721 2500 4500 5.4
