| Place of Origin: | Sweden |
|---|---|
| Certification: | ISO |
| Model Number: | 2314 |
| Minimum Order Quantity: | 1 |
| Price: | 1-20 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |

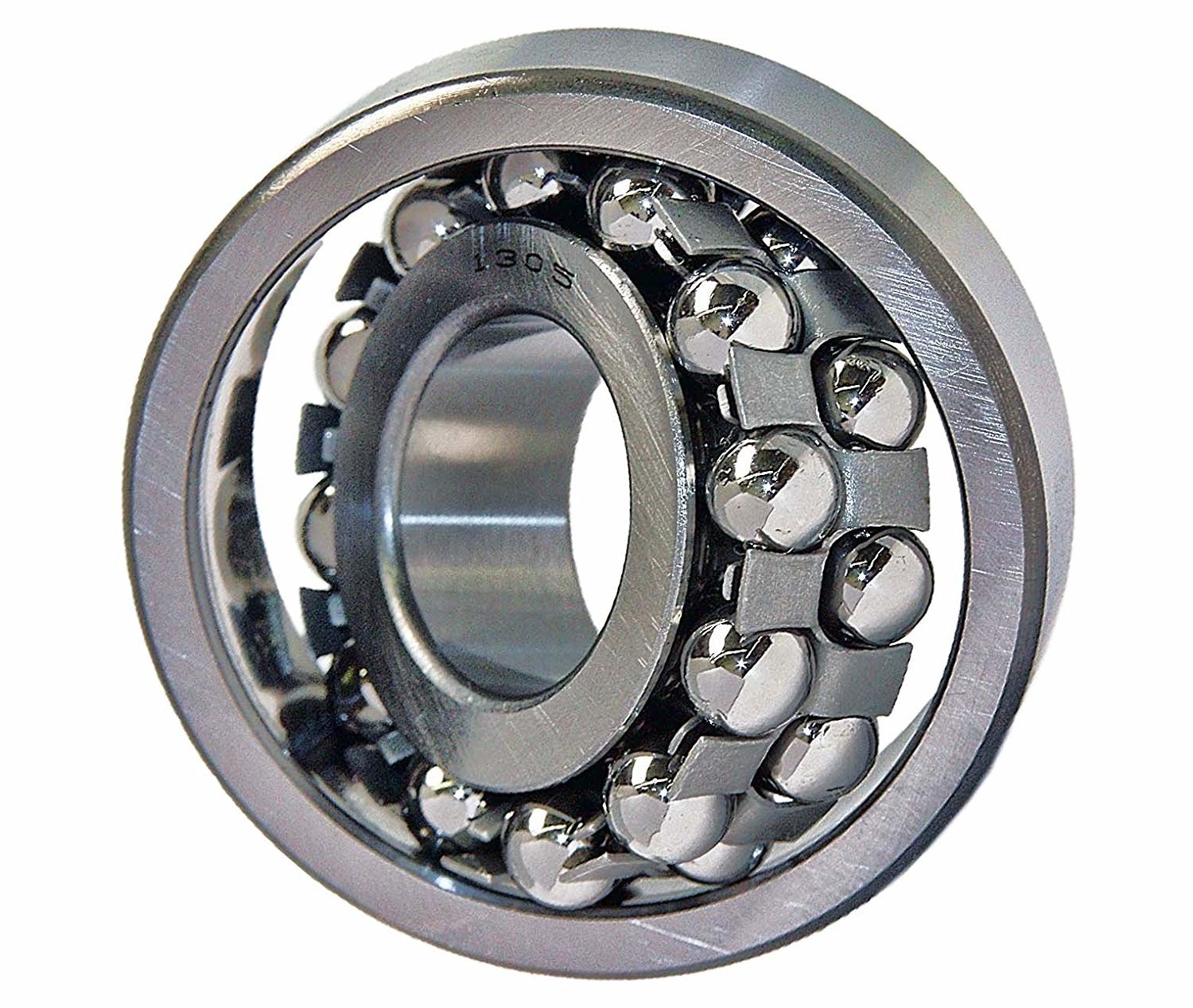

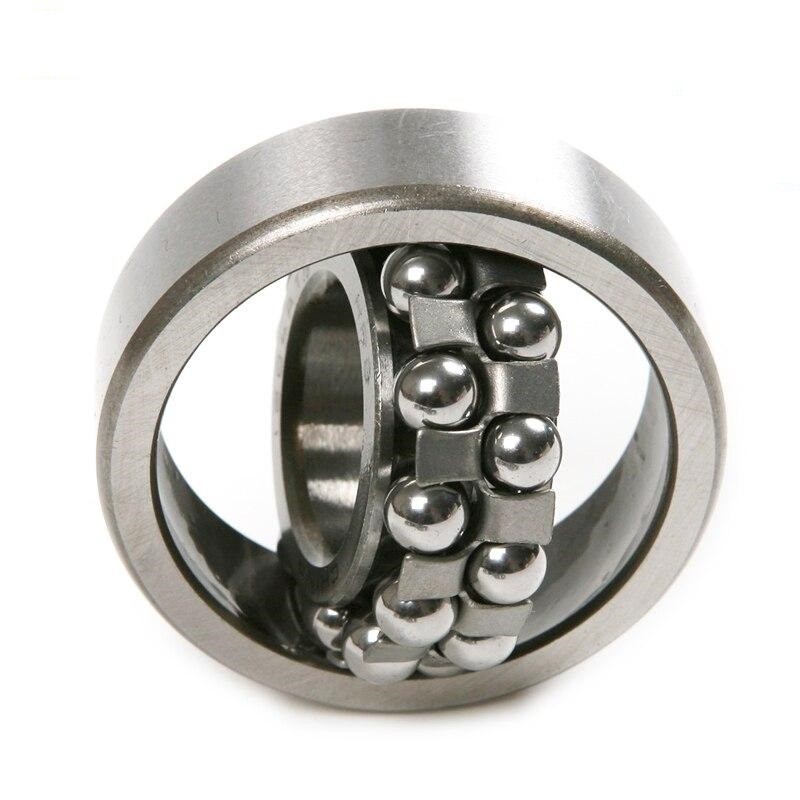

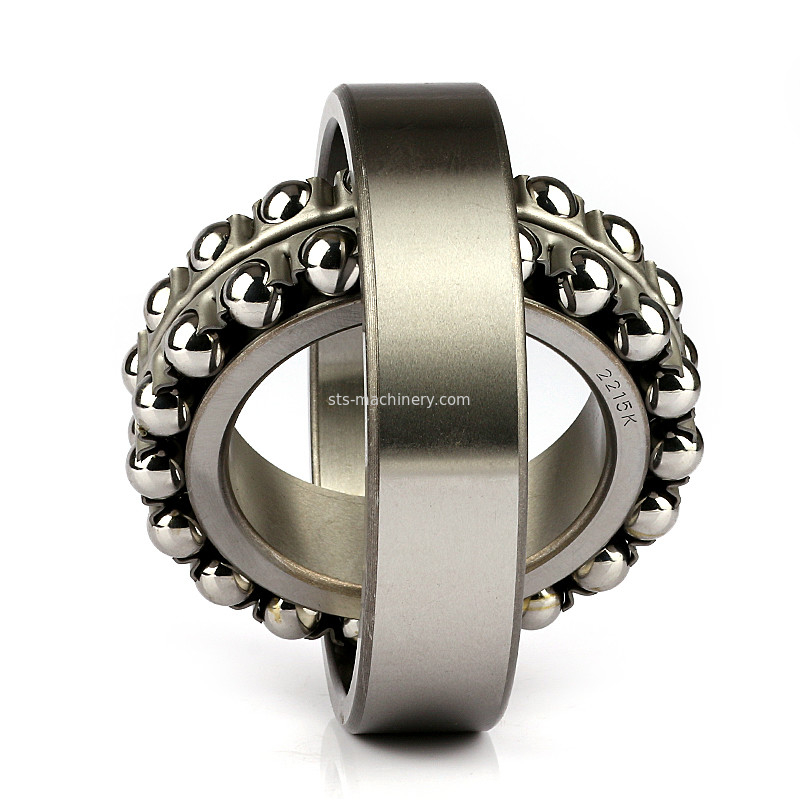

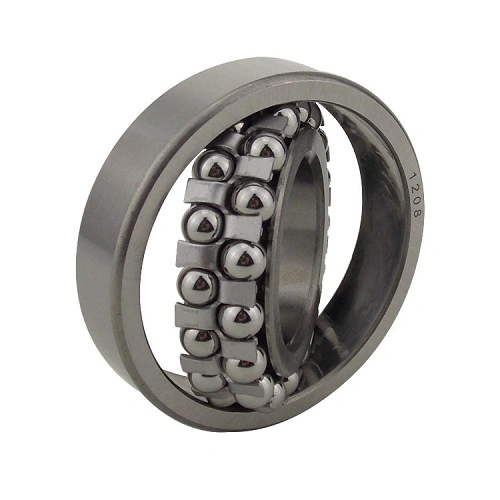

A self-aligning ball bearing has two rows of balls with common spherical raceways in the outer ring.

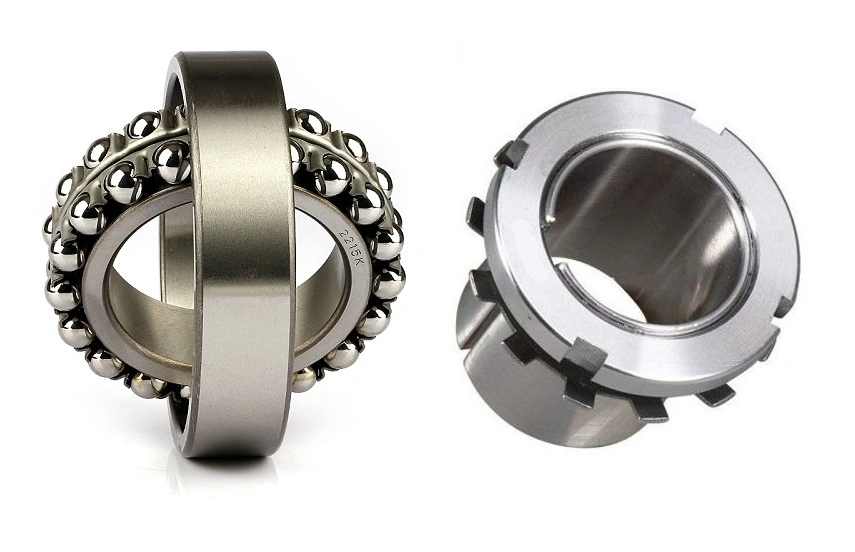

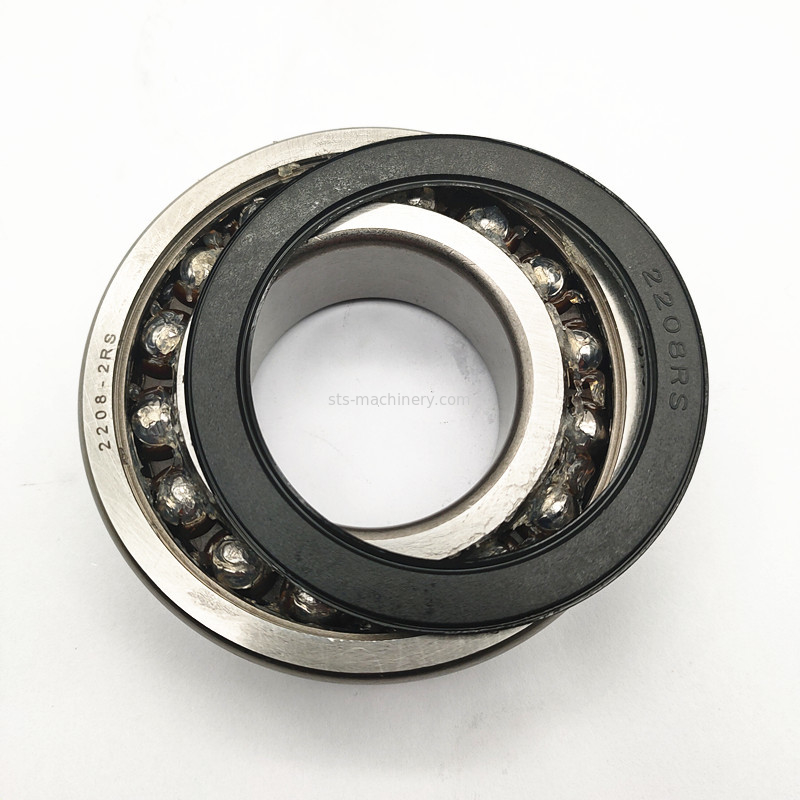

These bearings are made with seal or without seal. They are also available with tapered bore and adapter sleeve.
It has the ability to conciliate the angle error, and also the design of sealed and non-lubricated, so it's suitable for working conditions without maintenance.
Applications and Industry:
Industrial fans
Agriculture
Material handling
Food and beverage
Pulp and paper
Textile machines
Plastic machinery
Medical equipment
Various industrial machinery.
Technical specification
Suffix 'K'---- Tapered bore
Prefix 'S'--- Stainless steel
We can also provide stainless steel self-aligning ball bearings.
| Bearing No. | Boundary Dimensions ( mm ) | Mass (kg) | ||
| Model # | d | D | B | |
| 2300 | 10 | 35 | 17 | 0.08 |
| 2301 | 12 | 37 | 17 | 0.09 |
| 2302 | 15 | 42 | 17 | 0.11 |
| 2302 2RS | 15 | 42 | 17 | 0.11 |
| 2303 | 17 | 47 | 19 | 0.17 |
| 2303 2RS | 17 | 47 | 19 | 0.17 |
| 2304 | 20 | 52 | 21 | 0.21 |
| 2304 2RS | 20 | 52 | 21 | 0.22 |
| 2304 K | 20 | 52 | 21 | 0.21 |
| 2305 | 25 | 62 | 24 | 0.34 |
| 2305 2RS | 25 | 62 | 24 | 0.35 |
| 2305 K | 25 | 62 | 24 | 0.34 |
| 2306 | 30 | 72 | 27 | 0.50 |
| 2306 2RS | 30 | 72 | 27 | 0.50 |
| 2306 K | 30 | 72 | 27 | 0.50 |
| 2307 | 35 | 80 | 31 | 0.68 |
| 2307 2RS | 35 | 80 | 31 | 0.68 |
| 2307 K | 35 | 80 | 31 | 0.68 |
| 2308 | 40 | 90 | 33 | 0.93 |
| 2308 2RS | 40 | 90 | 33 | 0.93 |
| 2308 K | 40 | 90 | 33 | 0.93 |
| 2309 | 45 | 100 | 36 | 1.23 |
| 2309 2RS | 45 | 100 | 36 | 1.23 |
| 2309 K | 45 | 100 | 36 | 1.23 |
| 2310 | 50 | 110 | 40 | 1.63 |
| 2310 2RS | 50 | 110 | 40 | 1.63 |
| 2310 K | 50 | 110 | 40 | 1.63 |
| 2311 | 55 | 120 | 43 | 2.09 |
| 2311 2RS | 55 | 120 | 43 | 2.12 |
| 2311 K | 55 | 120 | 43 | 2.09 |
| 2312 | 60 | 130 | 46 | 2.60 |
| 2312 2RS | 60 | 130 | 46 | 2.62 |
| 2312 K | 60 | 130 | 46 | 2.60 |
| 2313 | 65 | 140 | 48 | 3.20 |
| 2314 | 70 | 150 | 51 | 3.92 |
| 2315 | 75 | 160 | 55 | 4.78 |
| 2316 | 80 | 170 | 58 | 5.65 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
