Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts .

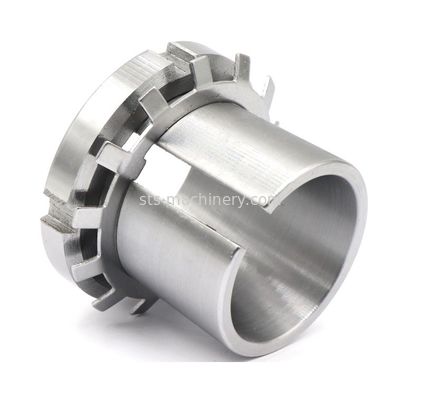

Adapter sleeve (H)
Adapter sleeves are the most commonly used components for locating bearings that has a tapered bore, onto cylindrical shaft seating's as they can be employed both on smooth shafts and stepped shafts.
They are easy to mount and require no additional fixation on the shaft. Using adapter sleeves on smooth shafts, the bearing can be located at any position on the shaft . EESCO adapter sleeves are supplied complete with lock nut and locking device.
Adapter sleeve for oil injection (OH)
These sleeves have an oil supply duct (or ducts) at the threaded side of the sleeve and distributor grooves in the bore as well as the outside surface.
Sleeves up to and including size 40 have on supply duct, larger sleeves have two.
Withdrawal sleeve (AH)
Withdrawal sleeves can be used to mount bearings with tapered bore on cylindrical seating's of stepped shafts. The sleeve is pressed into the bore of the bearing that abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. The sleeves are slotted and have an external taper of 1:12 or 1:30.
Withdrawal sleeves for oil injection (AOH)
These AOH sleeves have two oil supply ducts at the threaded side as well as oil distributor grooves in the circumferential and axial directions, both in the outside surface and the sleeve bore. If oil is injected through these ducts and grooves, an oil film is formed between the mating surfaces of the bearing and sleeve and between the shaft and sleeve, and the force required to mount the bearing is considerably reduced.
| No. | Dimension(mm) | Bearing No. | Weight(kg) | ||||
| d | d1 | B1 | d2 | Spherical Ball Bearing | Spherical Roller Bearing | ||
| H302 | 15 | 12 | 22 | 25 | 1302K 2202K | ||
| H303 | 17 | 14 | 24 | 28 | 1303K 2203K | ||
| H304 | 20 | 17 | 28 | 32 | 1304K 2204K | 21304K | 0.04 |
| H305 | 25 | 20 | 29 | 38 | 1305K 2205K | 21305K | 0.071 |
| H306 | 30 | 25 | 31 | 45 | 1306K 2206K | 21306K | 0.095 |
| H307 | 35 | 30 | 35 | 52 | 1307K 2207K | 21307K | 0.14 |
| H308 | 40 | 35 | 36 | 58 | 1308K 2208K | 21308K 22208K | 0.17 |
| H309 | 45 | 40 | 39 | 65 | 1309K 2209K | 21309K 22209K | 0.23 |
| H310 | 50 | 45 | 42 | 70 | 1310K 2210K | 21310K 22210K | 0.27 |
| H311 | 55 | 50 | 45 | 75 | 1311K 2211K | 21311K 22211K | 0.32 |
| H312 | 60 | 55 | 47 | 80 | 1312K 2212K | 21312K 22212K | 0.36 |
| H313 | 65 | 60 | 50 | 85 | 1313K 2213K | 21313K 22213K | 0.42 |
| H314 | 70 | 60 | 52 | 92 | 1314K 2214K | 21314K 22214K | 0.67 |
| H315 | 75 | 65 | 55 | 98 | 1315K 2215K | 21315K 22215K | 0.78 |
| H316 | 80 | 70 | 59 | 105 | 1316K 2216K | 21316K 22216K | 0.95 |
| H317 | 85 | 75 | 63 | 110 | 1317K 2217K | 21317K 22217K | 1.1 |
| H318 | 90 | 80 | 65 | 120 | 1318K 2218K | 21318K 22218K | 1.3 |
| H319 | 95 | 85 | 68 | 125 | 1319K 2219K | 21319K 22219K | 1.4 |
| H320 | 100 | 90 | 71 | 130 | 1320K 2220K | 21320K 22220K | 1.6 |
| H322 | 110 | 100 | 77 | 145 | 1322K 2222K | 21322K 22222K | 2.05 |
