61816 Deep Groove Ball Bearing

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

Deep groove ball bearings are the most widely used bearing type and are suitable for many different industries. Matching that versatility across many different applications, they are available in a wide range of designs, variants and sizes.

Here are examples of applications in which deep groove ball bearings might be used:

61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)

61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)
61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)
61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)
Product Parameters

Technical specification:

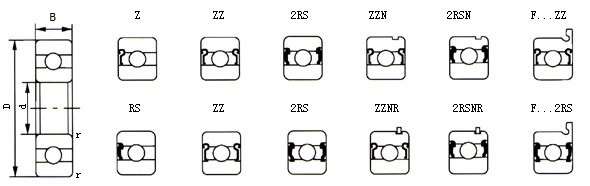

Seal type
Open (without cover), metal shields (ZZ), rubber seals (2RS).
N-Snap Ring Groove, NR-Snap Ring Groove And Snap Ring On Outer Ring, F-Flanged


Cage
Cage is an important parts. Usually steel cage will be used in deep groove ball bearings, but there are customers
who prefer nylon cage and bronze cage.


Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.

ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2

61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)
Bearing No. Dimension Load rating (KN) Weight
d D B Dynamin Static approx.
mm mm mm Cr Cor KG
6800 61800 10 19 5 1.83 0.925 0.005
6800 W7 63800 10 19 7 1.83 0.925 0.006
6801 61801 12 21 5 1.92 1.04 0.006
63801   12 21 7 1.92 1.04 0.0085
6802 61802 15 24 5 2.08 1.26 0.007
63802   15 24 7 2.08 1.26 0.01
6803 61803 17 26 5 2.81 1.72 0.008
63803   17 26 7 2.81 1.72 0.011
6804 61804 20 32 7 4 2.47 0.019
6805 61805 25 37 7 4.3 2.95 0.022
6806 61806 30 42 7 4.7 3.65 0.026
6807 61807 35 47 7 4.9 4.05 0.029
6808 61808 40 52 7 4.95 4.2 0.033
6809 61809 45 58 7 6.2 5.4 0.04
6810 61810 50 65 7 6.6 6.1 0.052
6811 61811 55 72 9 8.8 8.1 0.083
6812 61812 60 78 10 11.5 10.6 0.104
6813 61813 65 85 10 11.9 11.5 0.126
6814 61814 70 90 10 12.1 11.9 0.134
6815 61815 75 95 10 12.5 12.9 0.142
6816 61816 80 100 10 12.7 13.3 0.15
6817 61817 85 110 13 18.7 19 0.266
6818 61818 90 115 13 19 19.7 0.279
6819 61819 95 120 13 19.3 19.7 0.704
6820 61820 100 125 13 45.6 62.6 0.5
6821 61821 105 130 13 49.5 65.3 0.56
6822 61822 110 140 16 50.6 73.6 0.6
6824 61824 120 150 16 58.7 76 0.65
6826 61826 130 165 18 60.3 79.2 0.94
6828 61828 140 175 18 65.5 81 0.99
6830 61830 150 190 20 68.9 85 1.5
6832 61832 160 200 20 70.4 88.2 1.7
6834 61834 170 215 22 74.8 90.8 1.9
6836 61836 180 225 24 78.4 99.4 2
6838 61838 190 240 24 109.5 140.1 2.03
Packaging & Shipping



61800 Series Deep Groove Ball Bearing(61816 61817 61818 61819 61820 61821 61822 61824 61826 61828 61830 61832 61834 61836 61838)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
