| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-10 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |

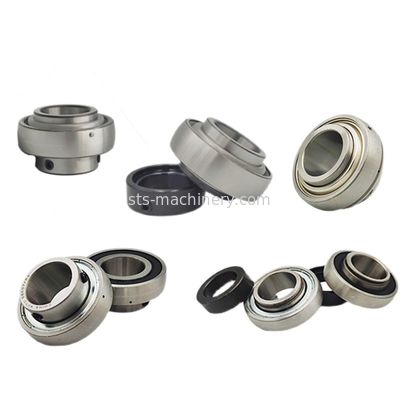

UEL200 Series: Outer Spherical Bearing With Eccentric Sleeve
1. Because the eccentric sleeve's strength is larger than the top wire, so with the same internal diameter size with the top silk-shaped outer spherical bearings can withstand a larger axial load, suitable for vibration, impact load parts, such as the agricultural machinery with more eccentric sleeve rotation direction should be consistent with the rotation direction of the shaft.
2. Table UG201-UG203 is the code name of Japan's Asahi company, the form factor is consistent with the international (GB/T3882) UEL201-UEL203.
Description: can withstand large radial, axial joint load. suitable for cases with vibration and shock loads, the direction of rotation of eccentric sleeves and the direction of rotation of shafts are consistent.
| P/N | Dimensions(mm) | Weight (KG) |
Rated Dynamic Load Cr(KN) |
Rated Static Load Cor(KN) |
The Limit Speed (R/Min) |
With Eccentric Sleeve Code | ||||||||||
| d | D | B1 | B | B2 | S | C | R(min) | D1 | G | DS | ||||||
| UEL201 | 12 | 40 | 37.3 | 27.8 | 13.5 | 13.9 | 15 | 0.6 | 28.6 | 4.8 | M6X1 | 0.26 | 7.36 | 4.48 | 4500 | E201 |
| UEL202 | 15 | 40 | 37.3 | 27.8 | 13.5 | 13.9 | 15 | 0.6 | 28.6 | 4.8 | M6X1 | 0.23 | 7.36 | 4.48 | 4500 | E202 |
| UEL203 | 17 | 40 | 37.3 | 27.8 | 13.5 | 13.9 | 15 | 0.6 | 28.6 | 4.8 | M6X1 | 0.21 | 7.36 | 4.48 | 4500 | E203 |
| UEL204 | 20 | 47 | 43.7 | 34.2 | 13.5 | 17.1 | 17 | 1.0 | 33.3 | 4.8 | M6X1 | 0.18 | 9.88 | 6.2 | 4000 | E204 |
| UEL205 | 25 | 52 | 44.4 | 34.9 | 13.5 | 17.5 | 17 | 1.0 | 38.1 | 4.8 | M6X1 | 0.25 | 10.78 | 6.98 | 3400 | E3205 |
| UEL206 | 30 | 62 | 48.4 | 36.5 | 15.9 | 18.3 | 19 | 1.0 | 44.5 | 6.0 | M6X1 | 0.4 | 14.97 | 10.04 | 2800 | E206 |
| UEL207 | 35 | 72 | 51.1 | 37.6 | 17.5 | 18.8 | 20 | 1.1 | 55.6 | 6.8 | M8X1 | 0.61 | 14.75 | 13.67 | 2400 | E207 |
| UEL208 | 40 | 80 | 56.3 | 42.8 | 18.3 | 21.4 | 21 | 1.1 | 60.3 | 6.8 | M8X1 | 0.75 | 22.71 | 15.94 | 2200 | E208 |
| UEL209 | 45 | 85 | 56.3 | 42.8 | 18.3 | 21.4 | 22 | 1.1 | 63.5 | 6.8 | M8X1 | 0.81 | 24.36 | 17.71 | 1900 | E3209 |
| UEL210 | 50 | 90 | 62.7 | 49.2 | 18.3 | 24.6 | 24 | 1.1 | 69.9 | 7.0 | M10X1 | 0.98 | 26.98 | 19.84 | 1800 | E210 |
| UEL211 | 55 | 100 | 71.4 | 55.5 | 20.7 | 27.8 | 25 | 1.5 | 76.2 | 7.0 | M10X1 | 1.3 | 33.37 | 25.11 | 1600 | E211 |
| UEL212 | 60 | 110 | 77.8 | 61.9 | 22.3 | 31 | 27 | 1.5 | 84.2 | 8.0 | M10X1 | 1.78 | 36.74 | 27.97 | 1500 | E212 |
| UEL213 | 65 | 120 | 85.7 | 69.2 | 23.5 | 34.1 | 27 | 1.5 | 86 | 8.5 | M12X1.5 | 2.48 | 44.04 | 34.18 | 1400 | E213 |
| UEL214 | 70 | 125 | 85.7 | 69.2 | 23.5 | 34.1 | 29 | 1.5 | 90 | 8.5 | M12X1.5 | 2.5 | 46.79 | 37.59 | 1300 | E214 |
| UEL215 | 75 | 130 | 92.1 | 76.6 | 23.5 | 37.3 | 30 | 1.5 | 102 | 8.5 | M12X1.5 | 2.86 | 50.85 | 41.26 | 1200 | E215 |
| UEL216 | 80 | 140 | 92 | 70 | 30 | 33.3 | 33 | 2.0 | 110 | 11 | M12X1.5 | 3.3 | 55.04 | 45.09 | 1100 | E216 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
