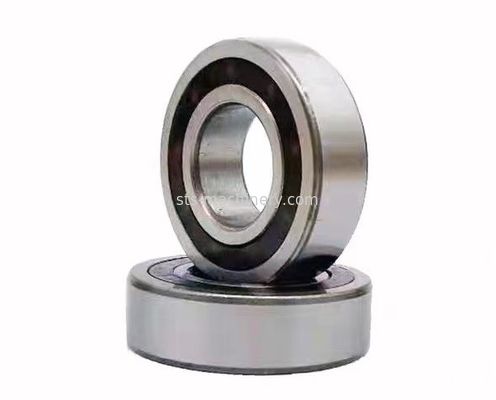

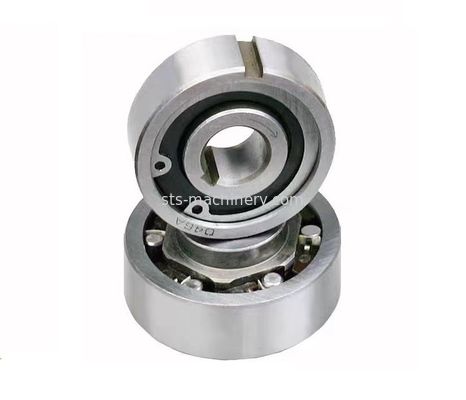

CSK12P2RS One Way Clutch Bearing Sprag Clutch Bearing

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

One Way Bearings are divided into open type and sealed type. The keyway can be machined on the inner ring and outer ring.

Freewheel clutch is mainly used in such applications as speed conversion, reversal preventing, intermittent movement and etc. Working principle is to use friction generated by wedge, spring and such compression elements to transmit torque.



One Way Clutch Bearing Sprag Clutch Bearing (CSK12P2RS  CSK15P2RS CSK17P2RS CSK20P2RS CSK25P2RS CSK30P2RS CSK35P2RS CSK40P2RS)
One Way Clutch Bearing Sprag Clutch Bearing (CSK12P2RS  CSK15P2RS CSK17P2RS CSK20P2RS CSK25P2RS CSK30P2RS CSK35P2RS CSK40P2RS)
One Way Clutch Bearing Sprag Clutch Bearing (CSK12P2RS  CSK15P2RS CSK17P2RS CSK20P2RS CSK25P2RS CSK30P2RS CSK35P2RS CSK40P2RS)
Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static
d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
CSK..P 12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 - 325 3000 80 22     15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 - 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS 12 - 9.3 10000 32 14     6.1 2.77 0.05 3
15 - 17 8400 35 16     7.4 3.42 0.07 4
17 - 30 7350 40 17     7.9 3.8 0.09 5.6
20 - 50 6000 47 19     9.4 4.46 0.145 6
25 - 85 5200 52 20     10.7 5.46 0.175 6
30 - 138 4200 62 21     11.7 6.45 0.27 7.5
35 - 175 3600 72 22     12.6 7.28 0.4 8.2
40 - 325 3000 80 27     15.54 12.25 0.6 10



Packaging & Shipping



One Way Clutch Bearing Sprag Clutch Bearing (CSK12P2RS  CSK15P2RS CSK17P2RS CSK20P2RS CSK25P2RS CSK30P2RS CSK35P2RS CSK40P2RS)



Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
