| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-20 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In Stock |
| Payment Terms: | T/T, Western Union, PayPal |

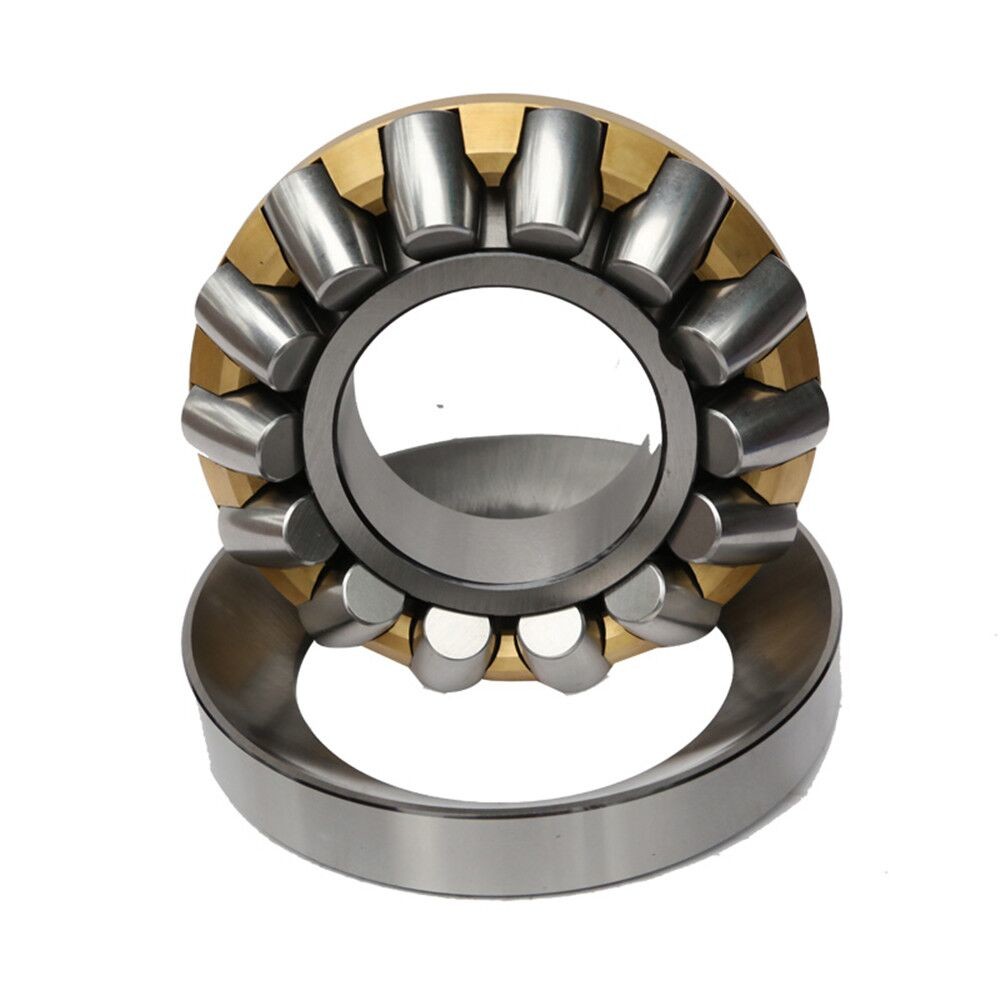

Spherical roller thrust bearings is a rolling element bearing of thrust type that permits rotation with low friction and permits angular misalignment. Spherical roller thrust bearings have asymmetrically sphered rollers. The bearing is designed to take radial loads and heavy axial loads in one direction.
Applications
Technical specification
Spherical roller thrust bearings are a kind of separable bearings with rolling-element bearing of thrust type. With this feature, it's possible to mount or dismount the housing separately from the shaft. Meanwhile it's easier to assemble the rollers and cages. Maintenance is also convenient and fast with this feature.
Spherical roller thrust bearings are usually with a pressed steel cage and machined brass cage. In general, we recommend the brass cage for horizontal shaft or high-speed application.
Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
| ANSI Standard* | DIN 620* | ISO 492* |
| ABEC 1 | P0 | Class Normal |
| ABEC 3 | P6 | Class 6 |
| ABEC 5 | P5 | Class 5 |
| ABEC 7 | P4 | Class 4 |
| ABEC 9 | P2 | Class 2 |
| Dimension(mm) | Bearing No. | Basic load ratings(N) | Mass kg |
|||||||||
| d | D | T | d1 | D1 | B | C | A | r min | Cr | Cor | ||
| 120 | 250 | 78 | 170 | 225.4 | 28 | 36.6 | 74 | 4 | 39424 | 915 | 2770 | 18.5 |
| 190 | 270 | 48 | 224 | 254 | 15 | 24 | 103 | 2 | 9069238 | 400 | 1250 | 7.95 |
| 110 | 190 | 48 | 144 | 177 | 16 | 22.1 | 64 | 2 | 9069322 | 344 | 655 | 5.67 |
| 120 | 210 | 54 | 156 | 194.4 | 18 | 25.9 | 70 | 2.1 | 9069324 | 416 | 1040 | 7.96 |
| 130 | 225 | 58 | 168 | 208.7 | 19 | 27.8 | 76 | 2.1 | 9069326 | 480 | 1180 | 9.45 |
| 150 | 250 | 60 | 191.5 | 232 | 20 | 29.8 | 87 | 2.1 | 9069330 | 556 | 1460 | 11.7 |
| 160 | 270 | 67 | 205 | 250.5 | 23 | 31.7 | 92 | 3 | 9069332 | 652 | 1660 | 15.5 |
| 170 | 280 | 67 | 216.5 | 260.2 | 23 | 31.4 | 96 | 3 | 9069334 | 692 | 1800 | 16.3 |
| 180 | 300 | 73 | 227.5 | 278.4 | 25 | 34.6 | 103 | 3 | 9069336 | 785 | 2080 | 20.7 |
| 220 | 360 | 85 | 278.5 | 334.4 | 29 | 40.7 | 125 | 4 | 9069344 | 1070 | 2900 | 34.5 |
| 240 | 380 | 85 | 299 | 353.7 | 29 | 41.7 | 135 | 4 | 9069348 | 1100 | 3100 | 36.3 |
| 260 | 420 | 95 | 325 | 393.1 | 32 | 47.5 | 148 | 5 | 9069352 | 1090 | 3900 | 51.5 |
| 280 | 440 | 95 | 364 | 412.5 | 32 | 46.3 | 158 | 5 | 9069356 | 1460 | 4250 | 54 |
| 300 | 480 | 109 | 371.5 | 447.8 | 37 | 53.1 | 168 | 5 | 9069360 | 1700 | 4900 | 75.4 |
| 320 | 500 | 109 | 393 | 468 | 37 | 53 | 180 | 5 | 9069364 | 1790 | 5200 | 80 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
