| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-20 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In Stock |
| Payment Terms: | T/T, Western Union, PayPal |

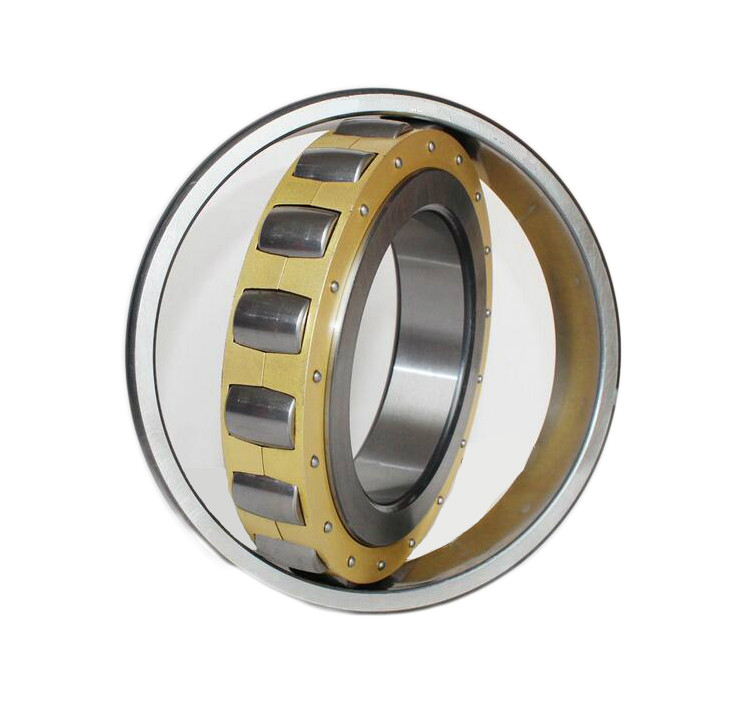

Single row spherical roller bearings are self-retaining radial roller bearings. They also belong to self-aligning bearings. Benefit from the concave raceway on the outer ring, they are able to compensate the static and dynamic angular misalignment under certain limits.
We offer single row spherical roller bearings, double row spherical roller bearings,spherical roller thrust bearings.
Applications
Technical specification
Single row spherical roller bearings cannot transmit large axial loads and cannot be separated under normal circumstances.The angular deviation of the inner ring can be compensated up to 4° during rotating.
Inner ring is equipped with two fixed ribs and a formed raceway. The rollers are guided between the two inner ring ribs.
| Bearing No. | Dimensions mm |
Mass kg |
Load ratings KN |
|||||
| d | D | B | Is | H | C | Co | ||
| 20204T | 20 | 47 | 14 | 1 | 39 | 0.114 | 20.4 | 19.3 |
| 20304T | 20 | 52 | 15 | 1.1 | 43.5 | 0.152 | 27 | 24.5 |
| 20205T | 25 | 52 | 15 | 1 | 43.9 | 0.134 | 24 | 25 |
| 20205K.T.C3 | 25 | 52 | 15 | 1 | 43.9 | 0.132 | 24 | 25 |
| 20305T | 25 | 62 | 17 | 1.1 | 51.9 | 0.243 | 36 | 34.5 |
| 20206T | 30 | 62 | 16 | 1 | 53 | 0.207 | 27.5 | 28.5 |
| 20206K.T.C3 | 30 | 62 | 16 | 1 | 53 | 0.203 | 27.5 | 28.5 |
| 20306T | 30 | 72 | 19 | 1.1 | 60.7 | 0.37 | 49 | 49 |
| 20207T | 35 | 72 | 17 | 1.1 | 62.3 | 0.301 | 40.5 | 43 |
| 20207K.T.C3 | 35 | 72 | 17 | 1.1 | 62.3 | 0.296 | 40.5 | 43 |
| 20307T | 35 | 80 | 21 | 1.5 | 67.4 | 0.493 | 58.5 | 61 |
| 20208T | 40 | 80 | 18 | 1.1 | 70 | 0.386 | 49 | 53 |
| 20208K.T.C3 | 40 | 80 | 18 | 1.1 | 70 | 0.38 | 49 | 53 |
| 20308T | 40 | 90 | 23 | 1.5 | 76.8 | 0.671 | 76.5 | 81.5 |
| 20209T | 45 | 85 | 19 | 1.1 | 74.6 | 0.441 | 52 | 57 |
| 20209K.T.C3 | 45 | 85 | 19 | 1.1 | 74.6 | 0 433 | 52 | 57 |
| 20309T | 45 | 100 | 25 | 1.5 | 85.2 | 0.914 | 86.5 | 95 |
| 20210T | 50 | 90 | 20 | 1.1 | 79.5 | 0.499 | 58.5 | 68 |
| 20210K.T.C3 | 50 | 90 | 20 | 1.1 | 79.5 | 0.489 | 58.5 | 68 |
| 20310T | 50 | 110 | 27 | 2 | 94.4 | 1.17 | 108 | 118 |
| 20211T | 55 | 100 | 21 | 1.5 | 89.2 | 0.653 | 73.5 | 85 |
| 20211K.T.C3 | 55 | 100 | 21 | 1.5 | 89.2 | 0.642 | 73.5 | 85 |
| 20311T | 55 | 120 | 29 | 2 | 101.8 | 1.53 | 120 | 137 |
| 20311K.T.C3 | 55 | 120 | 29 | 2 | 101.8 | 1.49 | 120 | 137 |
| 20212T | 60 | 110 | 22 | 1.5 | 97.8 | 0.836 | 85 | 100 |
| 20212K.T.C3 | 60 | 110 | 22 | 1.5 | 97.8 | 0.822 | 85 | 100 |
| 20312T | 60 | 130 | 31 | 2.1 | 111.2 | 1.92 | 146 | 170 |
| 20312K.T.C3 | 60 | 130 | 31 | 2.1 | 111.2 | 1.89 | 146 | 170 |
| 20213T | 65 | 120 | 23 | 1.5 | 105.1 | 1.08 | 95 | 116 |
| 20213K.T.C3 | 65 | 120 | 23 | 1.5 | 105.1 | 1.06 | 95 | 116 |
| 20313MB | 65 | 140 | 33 | 2.1 | 105.1 | 2.18 | 170 | 196 |
| 20313K.MB.C3 | 65 | 140 | 33 | 2.1 | 105.1 | 2.14 | 170 | 196 |
| 20214T | 70 | 125 | 24 | 1.5 | 111 | 1.17 | 106 | 134 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
