Yoke Type Track Roller Bearings PWTR3072.2RS PWTR40.2RS

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In Stock
Payment Terms: T/T, Western Union, MoneyGram

Product Description

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

Applications Of Track Roller Bearings

  • Metals
  • Mining, mineral processing and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

  • RSTO Series
  • RNA Series
Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)

Support Rollers Without Flange Rings, With An Inner Ring

  • STO Series
  • NA Series
Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)

Support Rollers With Flange Rings, With An Inner Ring

  • NATR Series
  • NATV Series
  • PWTR Series
  • NUTR Series
  • NAST Series
  • CYR Series
Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)

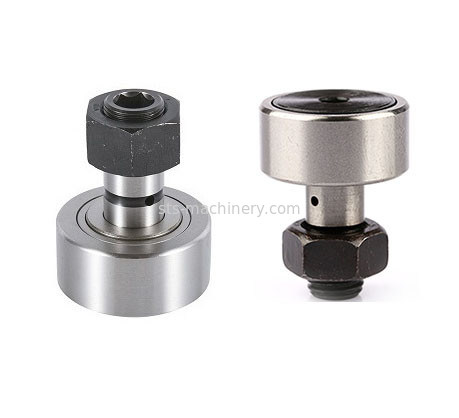

Cam Followers

  • KR,KRE,KRV,KRVE Series
  • NUKR,NUKRE Series
  • PWKR,PWKRE Series
  • CF,CFE,CFH Series
Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)
Product Parameters

Technical specification

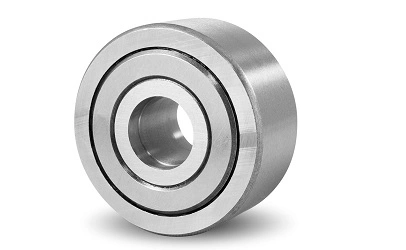

PWTR series Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and suitable for cam drives, slideways, conveying equipment, etc. Metric series, with two row full complement cylindrical rollers design, with lip seals at both sides.

Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)
Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)
Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)




Bearing No. Dimensions (mm) Basic Load Rating (KN) Limited
Speed
Mass
Shield Type Sealed Type d D B C d1 r min r1 min C Co rpm kg
PWTR 15 PWTR 15.2RS 15 35 19 18 20 0.6 0.3 9.28 9.04 4800 0.099
PWTR 17 PWTR 17.2RS 17 40 21 20 22 1.0 0.5 10.56 11.04 4000 0.147
PWTR 1542 PWTR 1542.2RS 15 42 19 18 20 0.6 0.3 10.80 11.28 4800 0.158
PWTR 20 PWTR 20.2RS 20 47 25 24 27 1.0 0.5 18.56 20.40 3040 0.245
PWTR 1747 PWTR 1747.2RS 17 47 21 20 22 1.0 0.5 11.84 13.12 4000 0.220
PWTR 25 PWTR 25.2RS 25 52 25 24 31 1.0 0.5 19.36 22.40 3040 0.281
PWTR 2052 PWTR 2052.2RS 20 52 25 24 27 1.0 0.5 20.40 23.60 3040 0.321
PWTR 30 PWTR 30.2RS 30 62 29 28 38 1.0 0.5 28.00 31.60 1760 0.465
PWTR 2562 PWTR 2562.2RS 25 62 25 24 31 1.0 0.5 23.20 28.80 3040 0.450
PWTR 35 PWTR 35.2RS 35 72 29 28 44 1.1 0.6 30.80 37.20 1440 0.630
PWTR 3072 PWTR 3072.2RS 30 72 29 28 38 1.0 0.5 32.80 39.20 1760 0.697
PWTR 40 PWTR 40.2RS 40 80 32 30 51 1.1 0.6 35.60 42.40 1200 0.816
PWTR 3580 PWTR 3580.2RS 35 80 29 28 44 1.1 0.6 34.80 44.00 1440 0.836
PWTR 45 PWTR 45.2RS 45 85 32 30 55 1.1 0.6 36.00 44.00 1040 0.883
PWTR 50 PWTR 50.2RS 50 90 32 30 60 1.1 0.6 36.40 45.60 880 0.950
PWTR 4090 PWTR 4090.2RS 40 90 32 30 51 1.1 0.6 41.60 52.80 1200 1.129
PWTR 45100 PWTR 45100.2RS 45 100 32 30 55 1.1 0.6 44.80 59.20 1040 1.396
PWTR 50110 PWTR 50110.2RS 50 110 32 30 60 1.1 0.6 47.20 65.60 880 1.690
Packaging & Shipping

Yoke Type Track Roller Bearings(PWTR3072.2RS PWTR40.2RS PWTR3580.2RS PWTR45.2RS PWTR50.2RS PWTR4090.2RS PWTR45100.2RS PWTR50110.2RS)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
