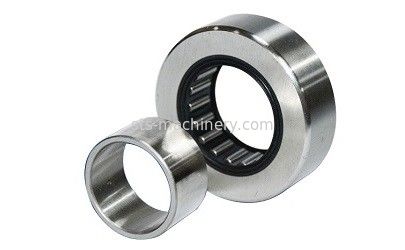

RNA22/6.2RS Yoke Type Track Roller Bearings

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In Stock
Payment Terms: T/T, Western Union, MoneyGram

Product Description

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

Applications Of Track Roller Bearings

  • Metals
  • Mining, mineral processing and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

  • RSTO Series
  • RNA Series
Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)

Support Rollers Without Flange Rings, With An Inner Ring

  • STO Series
  • NA Series
Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)

Support Rollers With Flange Rings, With An Inner Ring

  • NATR Series
  • NATV Series
  • PWTR Series
  • NUTR Series
  • NAST Series
  • CYR Series
Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)

Cam Followers

  • KR,KRE,KRV,KRVE Series
  • NUKR,NUKRE Series
  • PWKR,PWKRE Series
  • CF,CFE,CFH Series
Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)
Product Parameters

Technical specification

RNA22...2RS series Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and suitable for cam drives, slideways, conveying equipment, etc. Metric series, without inner ring, without axial guidance, available with cylindrical OD (suffix X), with lip seals at both sides.


Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)
Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)
Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)

Bearing No. Dimensions (mm) Basic Load Rating (KN) Limited Speed Mass
D C Fw r min r1 min C Co rpm kg
RNA22/6.2RS 19 11.8 10 0.3 0.3 3.12 2.92 7200 0.018
RNA22/8.2RS 24 11.8 12 0.3 0.3 3.84 3.84 5600 0.029
RNA2200.2RS 30 13.8 14 0.6 0.3 5.60 6.40 4400 0.052
RNA2201.2RS 32 13.8 16 0.6 0.3 6.00 7.20 3760 0.057
RNA2202.2RS 35 13.8 20 0.6 0.3 6.08 7.60 2720 0.060
RNA2203.2RS 40 15.8 22 1.0 0.3 7.92 10.96 2400 0.094
RNA2204.2RS 47 17.8 25 1.0 0.3 12.16 14.64 1840 0.152
RNA2205.2RS 52 17.8 30 1.0 0.3 12.56 16.00 1440 0.179
RNA2206.2RS 62 19.8 35 1.0 0.3 14.72 20.40 1120 0.284
RNA2207.2RS 72 22.7 42 1.1 0.6 18.40 28.40 880 0.432
RNA2208.2RS 80 22.7 48 1.1 0.6 22.00 32.40 680 0.530
RNA2209.2RS 85 22.7 52 1.1 0.6 22.80 34.40 640 0.545
RNA2210.2RS 90 22.7 58 1.1 0.6 22.40 34.00 520 0.563
Packaging & Shipping


Yoke Type Track Roller Bearings(RNA2205.2RS RNA2206.2RS RNA2207.2RS RNA2208.2RS RNA2209.2RS RNA2210.2RS)
