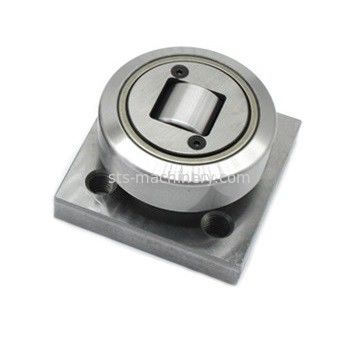

4.0 Series Standard Combined Bearing(4.053 4.054 4.055 4.056 4.058 4.061 4.062 4.063 4.011 4.037 4.039)

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

• Metals
• Mining, mineral processing and cement
• Railways
• Material handling
• Agriculture
• Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

• RSTO Series
• RNA Series

Support Rollers Without Flange Rings, With An Inner Ring

• STO Series
• NA Series

Support Rollers With Flange Rings, With An Inner Ring

• NATR Series
• NATV Series
• PWTR Series
• NUTR Series
• NAST Series
• CYR Series

Cam Followers

• KR,KRE,KRV,KRVE Series
• NUKR,NUKRE Series
• PWKR,PWKRE Series
• CF,CFE,CFH Series

Product Parameters

Technical specification

Combined Roller Bearings are particularly suitable for truck lift columns and all other convoying systems which require profiles.They can afford load from both axial and radial direction at the same time. With the optimzed structure, the mount space can be saved, and the usage is also simplethat just to weld the pivot in the mount plate,and it is not necessary to dismantle the whole set. The radial bearings are particularly suitable for automation and shift systems, which do not require heavy axial loads,and they come from the combined bearings and maintain the same features of construction.

According to customer's application, the OD surface can be designed to be flat , crowned and other special ones.

Part Number	Dimension(mm)
	d	T	D	H	h	B	A	S
4.053	30	40	52.5	33	27	17	5	15
4.054	30	42	62	37.5	30.5	20	2.5	20
4.055	35	48	70.1	44	36	23	2.5	22
4.056	40	53	77.7	48	36.5	23	3	24
4.058	45	59	88.4	57	44	30	3.5	26
4.061	60	71	107.7	69	55	31	4	34
4.062	60	80	123	72.3	56	37	5	40
4.063	60	108	149	78.5	58.5	45	5.5	50
4.011	60	108	149	86	67	45	5.5	50
4.037	80	120	174	95	71	55	7	63
4.039	80	120	185	95	71	55	7	63
