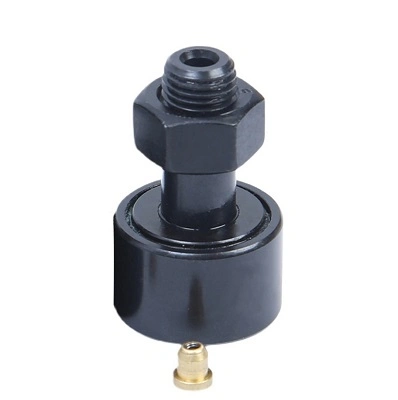

CFE-1/2-B Stud Type Cam Follower Bearings

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In Stock
Payment Terms: T/T, Western Union, PayPal

Product Description

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

Applications Of Track Roller Bearings

  • Metals
  • Mining, mineral processing and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

  • RSTO Series
  • RNA Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFE-1/2-B CFE-9/16-B CFE-5/8-B CFE-11/16-B CFE-3/4-B CFE-7/8-B CFE-1-B CFE-1 1/8-B)

Support Rollers Without Flange Rings, With An Inner Ring

  • STO Series
  • NA Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFE-1/2-B CFE-9/16-B CFE-5/8-B CFE-11/16-B CFE-3/4-B CFE-7/8-B CFE-1-B CFE-1 1/8-B)

Support Rollers With Flange Rings, With An Inner Ring

  • NATR Series
  • NATV Series
  • PWTR Series
  • NUTR Series
  • NAST Series
  • CYR Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFE-1/2-B CFE-9/16-B CFE-5/8-B CFE-11/16-B CFE-3/4-B CFE-7/8-B CFE-1-B CFE-1 1/8-B)

Cam Followers

  • KR,KRE,KRV,KRVE Series
  • NUKR,NUKRE Series
  • PWKR,PWKRE Series
  • CF,CFE,CFH Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFE-1/2-B CFE-9/16-B CFE-5/8-B CFE-11/16-B CFE-3/4-B CFE-7/8-B CFE-1-B CFE-1 1/8-B)
Product Parameters

Technical specification

Application of cam followers:

Escalator, Moving sidewalk, Elevator, Conveyor system, Lifting machinery, Automotive line machinery, Material handling equipments, Linear motion guidance equipments, Cam drives, Screw drives.


Inch Size CF-...B,CFE-...B,CFH-...B
With seals, add suffix "S"
Hex hole, add suffix "B"
Eccentric collar, add suffix "E"

Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFE-1/2-B CFE-9/16-B CFE-5/8-B CFE-11/16-B CFE-3/4-B CFE-7/8-B CFE-1-B CFE-1 1/8-B)
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFE-1/2-B CFE-9/16-B CFE-5/8-B CFE-11/16-B CFE-3/4-B CFE-7/8-B CFE-1-B CFE-1 1/8-B)



Bearing No. Dimensions (mm) Solid Eccentric Basic Load Rating(KN) Limited
Speed
Mass
Without Seals Sealed Type D C B B1 G G1 d1 B3 e C Co rpm kg
CFE-1/2-B CFE-1/2-SB 12.70 9.53 26.19 15.88 10-32 6.35 6.35 9.53 0.25 3.84 4.40 12000 0.011
CFE-9/16-B CFE-9/16-SB 14.29 9.53 26.19 15.88 10-32 6.35 6.35 9.53 0.25 4.30 5.30 10000 0.016
CFE-5/8-B CFE-5/8-SB 15.88 11.11 30.96 19.05 1/4-28 7.94 9.53 11.11 0.38 5.20 7.00 8800 0.025
CFE-11/16-B CFE-11/16-SB 17.46 11.11 30.96 19.05 1/4-28 7.94 9.53 11.11 0.38 6.50 8.50 8000 0.033
CFE-3/4-B CFE-3/4-SB 19.05 12.70 35.72 22.23 3/8-24 9.53 12.70 12.70 0.38 7.12 10.00 6400 0.042
CFE-7/8-B CFE-7/8-SB 22.23 12.70 35.72 22.23 3/8-24 9.53 12.70 12.70 0.38 7.12 10.00 6400 0.054
CFE-1-B CFE-1-SB 25.40 15.88 42.07 25.40 7/16-20 12.70 15.88 12.70 0.76 10.64 18.50 5200 0.086
CFE-1 1/8-B CFE-1 1/8-SB 28.58 15.88 42.07 25.40 7/16-20 12.70 15.88 12.70 0.76 10.64 18.50 5200 0.097
CFE-1 1/4-B CFE-1 1/4-SB 31.75 19.05 51.59 31.75 1/2-20 15.88 17.46 15.88 0.76 19.20 25.90 4400 0.154
CFE-1 3/8-B CFE-1 3/8-SB 34.93 19.05 51.59 31.75 1/2-20 15.88 17.46 15.88 0.76 19.20 25.90 4400 0.177
CFE-1 1/2-B CFE-1 1/2-SB 38.10 22.23 61.12 38.10 5/8-18 19.05 22.23 19.05 0.76 23.00 32.70 3600 0.263
CFE-1 5/8-B CFE-1 5/8-SB 41.28 22.23 61.12 38.10 5/8-18 19.05 22.23 19.05 0.76 23.00 32.70 3600 0.298
CFE-1 3/4-B CFE-1 3/4-SB 44.45 25.40 70.64 44.45 3/4-16 22.23 25.40 22.23 0.76 28.70 45.40 3200 0.418
CFE-1 7/8-B CFE-1 7/8-SB 47.63 25.40 70.64 44.45 3/4-16 22.23 25.40 22.23 0.76 28.70 45.40 3200 0.466
CFE-2-B CFE-2-SB 50.80 31.75 83.34 50.80 7/8-14 25.40 30.16 25.40 0.76 37.30 65.80 2800 0.705
CFE-2 1/4-B CFE-2 1/4-SB 57.15 31.75 83.34 50.80 7/8-14 25.40 30.16 25.40 0.76 37.30 65.80 2800 0.839
CFE-2 1/2-B CFE-2 1/2-SB 63.50 38.10 96.04 57.15 1-14 28.58 34.93 28.58 0.76 54.00 102.30   1.227
CFE-2 3/4-B CFE-2 3/4-SB 69.85 38.10 96.04 57.15 1-14 28.58 34.93 28.58 0.76 54.00 102.30   1.417
CFE-3-B CFE-3-SB 76.20 44.45 108.70 63.50 1 1/4-12 31.75 44.45 31.75 1.52 72.30 155.00   2.095
CFE-3 1/4-B CFE-3 1/4-SB 82.55 44.45 108.70 63.50 1 1/4-12 31.75 44.45 31.75 1.52 72.30 155.00   2.360
CFE-3 1/2-B CFE-3 1/2-SB 88.90 50.80 121.40 69.85 1 3/8-12 34.93 46.04 34.93 1.52 104.80 196.70   3.072
CFE-4-B CFE-4-SB 101.60 57.15 146.80 88.90 1 1/2-12 38.10 50.80 50.80 1.52 138.00 278.00   4.607

Packaging & Shipping


Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFE-1/2-B CFE-9/16-B CFE-5/8-B CFE-11/16-B CFE-3/4-B CFE-7/8-B CFE-1-B CFE-1 1/8-B)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
