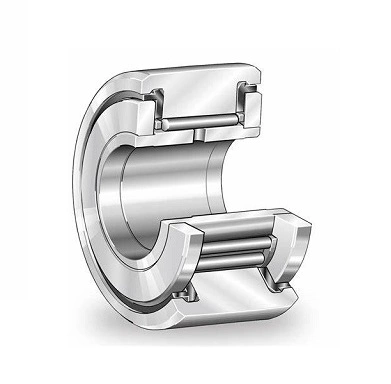

NATR5 NATR6 NATR8 Yoke Type Track Roller Bearings

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In Stock
Payment Terms: T/T, Western Union, MoneyGram

Product Description

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

Applications Of Track Roller Bearings

  • Metals
  • Mining, mineral processing and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

  • RSTO Series
  • RNA Series
Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)

Support Rollers Without Flange Rings, With An Inner Ring

  • STO Series
  • NA Series
Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)

Support Rollers With Flange Rings, With An Inner Ring

  • NATR Series
  • NATV Series
  • PWTR Series
  • NUTR Series
  • NAST Series
  • CYR Series
Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)

Cam Followers

  • KR,KRE,KRV,KRVE Series
  • NUKR,NUKRE Series
  • PWKR,PWKRE Series
  • CF,CFE,CFH Series
Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)
Product Parameters

Technical specification

NATR series Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and suitable for cam drives, slideways, conveying equipment, etc.

The bearings are available in open and sealed versions (suffix PP).

Metric series, with caged needle rollers, available with cylindrical OD (suffix X).

Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)
Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)
Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)

Bearing No. Dimensions (mm) Basic Load Rating (KN) Limited Speed Mass
Shield Type Sealed Type d D C B d1 r min C Co rpm kg
NATR 5 NATR 5 PP 5 16 11 12 12 0.2 2.52 2.64 11200 0.014
NATR 6 NATR 6 PP 6 19 11 12 14 0.2 2.80 3.12 8800 0.020
NATR 8 NATR 8 PP 8 24 14 15 19 0.3 4.40 5.12 6000 0.041
NATR 10 NATR 10 PP 10 30 14 15 23 0.6 5.44 6.72 4400 0.064
NATR 12 NATR 12 PP 12 32 14 15 25 0.6 5.52 7.04 3600 0.071
NATR 15 NATR 15 PP 15 35 18 19 27 0.6 7.76 11.28 280 0.103
NATR 17 NATR 17 PP 17 40 20 21 32 1.0 8.72 12.40 2320 0.144
NATR 20 NATR 20 PP 20 47 24 25 37 1.0 12.40 20.40 1920 0.246
NATR 25 NATR 25 PP 25 52 24 25 42 1.0 12.32 21.20 1440 0.275
NATR 30 NATR 30 PP 30 62 28 29 51 1.0 18.88 30.80 1040 0.470
  NATR 35 PP 35 72 28 29 58 1.1 20.40 35.60 800 0.635
  NATR 40 PP 40 80 30 32 66 1.1 26.40 47.20 680 0.805
  NATR 50 PP 50 90 30 32 76 1.1 25.60 47.20 520 0.960
Packaging & Shipping

Yoke Type Track Roller Bearings(NATR5 NATR6 NATR8 NATR10 NATR12)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
