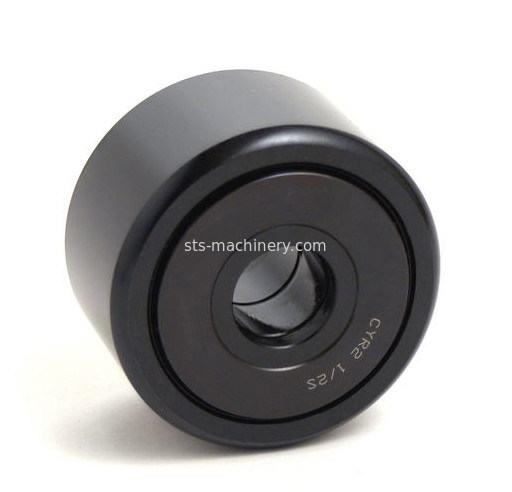

CCYR-2-S CCYR-2 1/4-S Yoke Type Track Roller Bearings

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In Stock
Payment Terms: T/T, Western Union, MoneyGram

Product Description

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

Applications Of Track Roller Bearings

  • Metals
  • Mining, mineral processing and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

  • RSTO Series
  • RNA Series
Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)

Support Rollers Without Flange Rings, With An Inner Ring

  • STO Series
  • NA Series
Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)

Support Rollers With Flange Rings, With An Inner Ring

  • NATR Series
  • NATV Series
  • PWTR Series
  • NUTR Series
  • NAST Series
  • CYR Series
Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)

Cam Followers

  • KR,KRE,KRV,KRVE Series
  • NUKR,NUKRE Series
  • PWKR,PWKRE Series
  • CF,CFE,CFH Series
Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)
Product Parameters

Technical specification

CYR series yoke-type cam follower bearing with lip seals supports high static and dynamic loads in cam type applications. This precision cam roller has a thick-walled outer ring that helps minimize deformation under heavy radial and shock loads.

Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)
Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)
Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)






Bearing No. Boundary Dimensions (mm) Basic Load Rating
(KN)
Limited
Speed
Mass
Shield Type Sealed Type With Crowned d D C B r min C Co rpm kg
CYR-3/4 CYR-3/4-S CCYR-3/4-S 6.35 19.05 12.70 14.29 0.8 7.1 10.0 3120 0.028
CYR-7/8 CYR-7/8-S CCYR-7/8-S 6.35 22.23 12.70 14.29 0.8 7.1 10.0 3120 0.037
CYR-1 CYR-1-S CCYR-1-S 7.93 25.40 15.88 17.46 1.2 10.6 18.5 2400 0.069
CYR-1 1/8 CYR-1 1/8-S CCYR-1 1/8-S 7.93 28.58 15.88 17.46 1.6 10.6 18.5 2400 0.079
CYR-1 1/4 CYR-1 1/4-S CCYR-1 1/4-S 9.53 31.75 19.05 20.64 1.6 19.2 25.8 2080 0.111
CYR-1 3/8 CYR-1 3/8-S CCYR-1 3/8-S 9.53 34.93 19.05 20.64 1.6 19.2 25.8 2080 0.139
CYR-1 1/2 CYR-1 1/2-S CCYR-1 1/2-S 11.11 38.10 22.22 23.81 1.6 23.0 32.7 1680 0.190
CYR-1 5/8 CYR-1 5/8-S CCYR-1 5/8-S 11.11 41.28 22.22 23.81 1.6 23.0 32.7 1680 0.232
CYR-1 3/4 CYR-1 3/4-S CCYR-1 3/4-S 12.70 44.45 25.40 26.99 1.6 28.7 45.4 1360 0.296
CYR-1 7/8 CYR-1 7/8-S CCYR-1 7/8-S 12.70 47.63 25.40 26.99 1.6 28.7 45.4 1360 0.370
CYR-2 CYR-2-S CCYR-2-S 15.88 50.80 31.75 33.34 1.6 37.3 65.8 1200 0.486
CYR-2 1/4 CYR-2 1/4-S CCYR-2 1/4-S 15.88 57.15 31.75 33.34 1.6 37.3 65.8 1200 0.611
CYR-2 1/2 CYR-2 1/2-S CCYR-2 1/2-S 19.05 63.50 38.10 39.69 2.4 50.8 95.2 1040 0.832
CYR-2 3/4 CYR-2 3/4-S CCYR-2 3/4-S 19.05 69.85 38.10 39.69 2.4 50.8 95.2 1040 1.040
CYR-3 CYR-3-S CCYR-3-S 25.40 76.20 44.45 46.04   67.6 144.0 880 1.370
CYR-3 1/4 CYR-3 1/4-S CCYR-3 1/4-S 25.40 82.55 44.45 46.04   67.6 144.0 880 1.640
CYR-3 1/2 CYR-3 1/2-S CCYR-3 1/2-S 28.58 88.90 50.80 52.39   98.0 183.0 790 2.140
CYR-4 CYR-4-S CCYR-4-S 31.75 101.60 57.15 58.74   130.0 260.0 740 3.160
  CYR-5-S CCYR-5-S 44.45 127.00 69.85 73.02   200.0 395.0 560 5.743
  CYR-6-S CCYR-6-S 57.15 152.40 82.55 85.72   258.0 466.0 540 9.498
  CYR-7-S CCYR-7-S 69.85 177.80 95.25 98.42   324.0 620.0 500 14.723

Yoke Type Track Roller Bearings(CCYR-2-S CCYR-2 1/4-S CCYR-2 1/2-S CCYR-2 3/4-S CCYR-3-S CCYR-3 1/4-S CCYR-3 1/2-S CCYR-4-S CCYR-5-S CCYR-6-S CCYR-7-S)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
