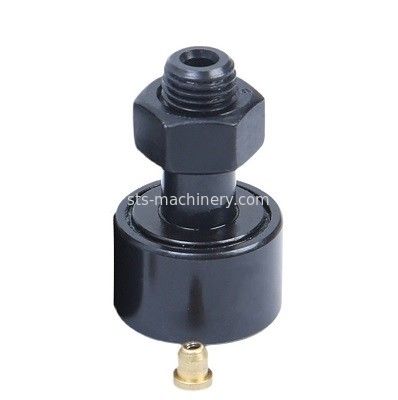

Stud Type Cam Follower Bearings CFH-1 1/4-B

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In Stock
Payment Terms: T/T, Western Union, PayPal

Product Description

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

Applications Of Track Roller Bearings

  • Metals
  • Mining, mineral processing and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

  • RSTO Series
  • RNA Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFH-1 1/4-B CFH-1 3/8-B CFH-1 1/2-B CFH-1 5/8-B CFH-1 3/4-B CFH-1 7/8-B CFH-2-B)

Support Rollers Without Flange Rings, With An Inner Ring

  • STO Series
  • NA Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFH-1 1/4-B CFH-1 3/8-B CFH-1 1/2-B CFH-1 5/8-B CFH-1 3/4-B CFH-1 7/8-B CFH-2-B)

Support Rollers With Flange Rings, With An Inner Ring

  • NATR Series
  • NATV Series
  • PWTR Series
  • NUTR Series
  • NAST Series
  • CYR Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFH-1 1/4-B CFH-1 3/8-B CFH-1 1/2-B CFH-1 5/8-B CFH-1 3/4-B CFH-1 7/8-B CFH-2-B)

Cam Followers

  • KR,KRE,KRV,KRVE Series
  • NUKR,NUKRE Series
  • PWKR,PWKRE Series
  • CF,CFE,CFH Series
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFH-1 1/4-B CFH-1 3/8-B CFH-1 1/2-B CFH-1 5/8-B CFH-1 3/4-B CFH-1 7/8-B CFH-2-B)
Product Parameters

Technical specification

Application of cam followers:

Escalator, Moving sidewalk, Elevator, Conveyor system, Lifting machinery, Automotive line machinery, Material handling equipments, Linear motion guidance equipments, Cam drives, Screw drives.


Inch Size CF-...B,CFE-...B,CFH-...B
With seals, add suffix "S"
Hex hole, add suffix "B"
Eccentric collar, add suffix "E"

Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFH-1 1/4-B CFH-1 3/8-B CFH-1 1/2-B CFH-1 5/8-B CFH-1 3/4-B CFH-1 7/8-B CFH-2-B)
Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFH-1 1/4-B CFH-1 3/8-B CFH-1 1/2-B CFH-1 5/8-B CFH-1 3/4-B CFH-1 7/8-B CFH-2-B)
Bearing No. Dimensions (mm) Basic Load Rating(KN) Limited
Speed
Mass
Hexagon Hole Sealed Type D d C B B1 B2 G G1 C Co rpm kg
CFH-1/2-B CFH-1/2-SB 12.70 6.35 9.53 26.19 15.88 - 1/4-28 6.35 3.84 4.40 12000 0.012
CFH9/16B CFH9/16-SB 14.29 6.35 9.53 26.19 15.88 - 1/4-28 6.35 4.30 5.30 10000 0.015
CFH-5/8-B CFH-5/8-SB 15.88 7.94 11.11 30.96 19.05 - 5/16-24 7.94 5.20 7.00 8800 0.023
CFH11/16-B CFH-11/16-SB 17.46 7.94 11.11 30.96 19.05 - 5/16-24 7.94 6.50 8.50 8000 0.027
CFH-3/4-B CFH-3/4-SB 19.05 11.11 12.70 35.72 22.23 6.35 7/16-20 9.53 7.12 10.00 6400 0.039
CFH-7/8-B CFH-7/8-SB 22.23 11.11 12.70 35.72 22.23 6.35 7/16-20 9.53 7.12 10.00 6400 0.049
CFH-1-B CFH-1-SB 25.40 15.88 15.88 42.07 25.40 6.35 5/8-18 12.70 10.64 18.50 5200 0.093
CFH-1 1/8-B CFH-1 1/8-SB 28.58 15.88 15.88 42.07 25.40 6.35 5/8-18 12.70 10.64 18.50 5200 0.109
CFH-1 1/4-B CFH-1 1/4-SB 31.75 19.05 19.05 51.59 31.75 7.94 3/4-16 15.88 19.20 25.90 4400 0.176
CFH-1 3/8-B CFH-1 3/8-SB 34.93 19.05 19.05 51.59 31.75 7.94 3/4-16 15.88 19.20 25.90 4400 0.200
CFH-1 1/2-B CFH-11/2SB 38.10 22.23 22.23 61.12 38.10 9.53 7/8-14 19.05 23.00 32.70 3600 0.296
CFH-1 5/8-B CFH-1 5/8-SB 41.28 22.23 22.23 61.12 38.10 9.53 7/8-14 19.05 23.00 32.70 3600 0.329
CFH-1 3/4-B CFH-1 3/4-SB 44.45 25.40 25.40 70.64 44.45 11.11 1-14 22.23 28.70 45.40 3200 0.463
CFH-1 7/8-B CFH-1 7/8-SB 47.63 25.40 25.40 70.64 44.45 11.11 1-14 22.23 28.70 45.40 3200 0.508
CFH-2-B CFH-2-SB 50.80 28.58 31.75 83.34 50.80 12.70 1 1/8-12 25.40 37.30 65.80 2800 0.722
CFH-2 1/4-B CFH-2 1/4-SB 57.15 28.58 31.75 83.34 50.80 12.70 1 1/8-12 25.40 37.30 65.80 2800 0.858
CFH-2 1/2-B CFH-2 1/2-SB 63.50 31.75 38.10 96.04 57.15 14.29 1 1/4-12 28.58 54.00 102.30   1.260
CFH-2 3/4-B CFH-2 3/4-SB 69.85 31.75 38.10 96.04 57.15 14.29 1 1/4-12 28.58 54.00 102.30   1.460
CFH-3-B CFH-3-SB 76.20 38.10 44.45 108.70 63.50 15.88 1 1/2-12 31.75 72.30 155.00   2.031
CFH-3 1/4-B CFH-3 1/4-SB 82.55 38.10 44.45 108.70 63.50 15.88 1 1/2-12 31.75 72.30 155.00   2.291
CFH-3 1/2-B CFH-3 1/2-SB 88.90 44.45 50.80 121.40 69.85 17.46 1 3/4-12 34.93 104.80 196.70   3.130
CFH-4-B CFH-4-SB 101.60 50.80 57.15 146.80 88.90 19.05 2-12 38.10 138.00 278.00   4.750
  CFH-5-SB 127.00 63.50 69.85 200.00 128.60 22.23 2 1/2-12 65.07 214.00 422.00   9.540
  CFH-6-SB 152.40 76.20 82.55 236.50 152.40 25.40 3-12 76.20 276.00 500.00   16.200
  CFH-7-SB 177.80 88.90 95.25 292.00 195.25 31.75 3 1/2-12 104.80 347.00 665.00   24.600

Packaging & Shipping


Inch Size Track Rollers, Stud Type Cam Follower Bearings(CFH-1 1/4-B CFH-1 3/8-B CFH-1 1/2-B CFH-1 5/8-B CFH-1 3/4-B CFH-1 7/8-B CFH-2-B)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
