Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.
Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.
Technical specification
NUKR series curve rollers are of double row full-roller structure, with axial guidance, full complement cylindrical roller set, labyrinth seals on both sides.
Stud type track roller (cam follower) - PWKR
- hex wrench socket in stud head
- crowned OD
- cylindrical OD is avaible , suffix " X "
- two seals is also avaialbe ( suffix " 2RS " )
- eccentric collar is also avaialbe ( prefix " PWKRE " )
Application of cam followers:
Escalator, Moving sidewalk, Elevator, Conveyor system, Lifting machinery, Automotive line machinery, Material handling equipments, Linear motion guidance equipments, Cam drives, Screw drives.

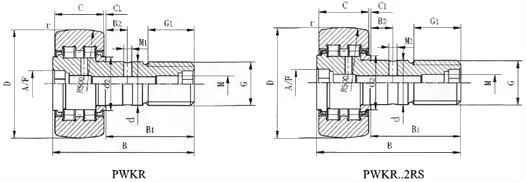

Bearing No. | Dimensions (mm) | Basic Load Rating (KN) | Limited Speed |
Mass | ||||||||||||||
Shiled Type | Sealed Type | D | d | C | r min | B | B1 | B2 | G | G1 | A/F | M1 | C1 | d2 | C | Co | rpm | kg |
PWKR 35 | PWKR 35.2RS | 35 | 16 | 18 | 0.6 | 52 | 32.5 | 7.9 | M16X1.5 | 17 | 8 | 3 | 0.8 | 20 | 9.28 | 9.04 | 4800 | 0.164 |
PWKR 40 | PWKR 40.2RS | 40 | 18 | 20 | 1.0 | 58 | 36.5 | 8.0 | M18X1.5 | 19 | 8 | 3 | 0.8 | 22 | 10.56 | 11.04 | 4000 | 0.242 |
PWKR 47 | PWKR 47.2RS | 47 | 20 | 24 | 1.0 | 66 | 40.5 | 9.0 | M20X1.5 | 21 | 10 | 4 | 0.8 | 27 | 18.56 | 20.40 | 3040 | 0.380 |
PWKR 52 | PWKR 52.2RS | 52 | 20 | 24 | 1.0 | 66 | 40.5 | 9.0 | M20X1.5 | 21 | 10 | 4 | 0.8 | 31 | 19.36 | 22.40 | 3040 | 0.450 |
PWKR 62 | PWKR 62.2RS | 62 | 24 | 28 | 1.0 | 80 | 49.5 | 11.0 | M24X1.5 | 25 | 14 | 4 | 1.3 | 38 | 28.00 | 31.60 | 1760 | 0.795 |
PWKR 72 | PWKR 72.2RS | 72 | 24 | 28 | 1.1 | 80 | 49.5 | 11.0 | M24X1.5 | 25 | 14 | 4 | 1.3 | 44 | 30.80 | 37.20 | 1760 | 1.020 |
PWKR 80 | PWKR 80.2RS | 80 | 30 | 35 | 1.1 | 100 | 63.0 | 15.0 | M30X1.5 | 32 | 14 | 4 | 1.0 | 47 | 44.80 | 56.00 | 1440 | 1.600 |
PWKR 90 | PWKR 90.2RS | 90 | 30 | 35 | 1.1 | 100 | 63.0 | 15.0 | M30X1.5 | 32 | 14 | 4 | 1.0 | 47 | 50.40 | 65.60 | 1440 | 1.960 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
