Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.
Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.
Technical specification

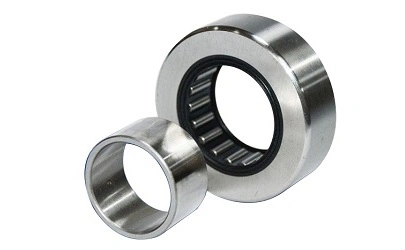

NAST is a separable type of bearing system that combines a thick-wall outer ring, an inner ring and needle rollers equipped with a precision cage.

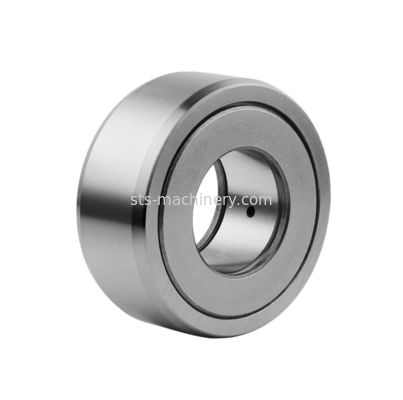

NAST...ZZ has a labyrinth seal consisting of a pair of side plates formed on both sides of the inner ring of model NAST.
R : Spherical outer ring
UU : With seal
Bearing No. | Dimensions(mm) | C N |
Co N |
Mass g |
||||||||||
ZZ | ZZUU | ZZR | ZZUUR | d | D | B | C | a | e | f | rsmin | |||
NAST6ZZ | NAST6ZZUU | NAST6ZZR | NAST6ZZUUR | 6 | 19 | 14 | 13.8 | 14 | 2.5 | 0.8 | 0.3 | 4120 | 4550 | 24.5 |
NAST8ZZ | NAST8ZZUU | NAST8ZZR | NAST8ZZUUR | 8 | 24 | 14 | 13.8 | 17.5 | 2.5 | 0.8 | 0.6 | 5680 | 5890 | 39 |
NAST10ZZ | NAST10ZZUU | NAST10ZZR | NAST10ZZUUR | 10 | 30 | 16 | 15.8 | 23.5 | 2.5 | 0.8 | 1 | 9700 | 9670 | 65 |
NAST12ZZ | NAST12ZZUU | NAST12ZZR | NAST12ZZUUR | 12 | 32 | 16 | 15.8 | 25.5 | 2.5 | 0.8 | 1 | 10400 | 10900 | 75 |
NAST15ZZ | NAST15ZZUU | NAST15ZZR | NAST15ZZUUR | 15 | 35 | 16 | 15.8 | 29 | 2.5 | 0.8 | 1 | 12300 | 14300 | 83 |
NAST17ZZ | NAST17ZZUU | NAST17ZZR | NAST17ZZUUR | 17 | 40 | 20 | 19.8 | 32.5 | 3 | 1 | 1 | 17400 | 20900 | 135 |
NAST20ZZ | NAST20ZZUU | NAST20ZZR | NAST20ZZUUR | 20 | 47 | 20 | 19.8 | 38 | 3 | 1 | 1 | 19200 | 24500 | 195 |
NAST25ZZ | NAST25ZZUU | NAST25ZZR | NAST25ZZUUR | 25 | 52 | 20 | 19.8 | 43 | 3 | 1 | 1 | 20700 | 28400 | 225 |
NAST30ZZ | NAST30ZZUU | NAST30ZZR | NAST30ZZUUR | 30 | 62 | 25 | 24.8 | 50.5 | 4 | 1.2 | 1 | 30300 | 45400 | 400 |
NAST35ZZ | NAST35ZZUU | NAST35ZZR | NAST35ZZUUR | 35 | 72 | 25 | 24.8 | 53.5 | 4 | 1.2 | 1 | 32200 | 50600 | 550 |
NAST40ZZ | NAST40ZZUU | NAST40ZZR | NAST40ZZUUR | 40 | 80 | 26 | 25.8 | 61.5 | 4 | 1.2 | 1.5 | 35700 | 61100 | 710 |
NAST45ZZ | NAST45ZZUU | NAST45ZZR | NAST45ZZUUR | 45 | 85 | 26 | 25.8 | 66.5 | 4 | 1.2 | 1.5 | 37100 | 66400 | 760 |
NAST50ZZ | NAST50ZZUU | NAST50ZZR | NAST50ZZUUR | 50 | 90 | 26 | 25.8 | 76 | 4 | 1.2 | 1.5 | 38700 | 71800 | 830 |
