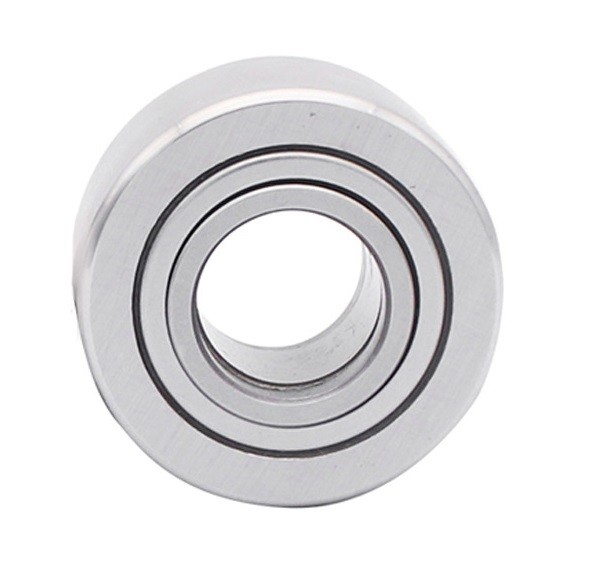

IKO Yoke Type Track Roller Bearings STO25

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

Applications Of Track Roller Bearings

  • Metals
  • Mining, mineral processing and cement
  • Railways
  • Material handling
  • Agriculture
  • Construction

Versions Of Track Roller Bearings

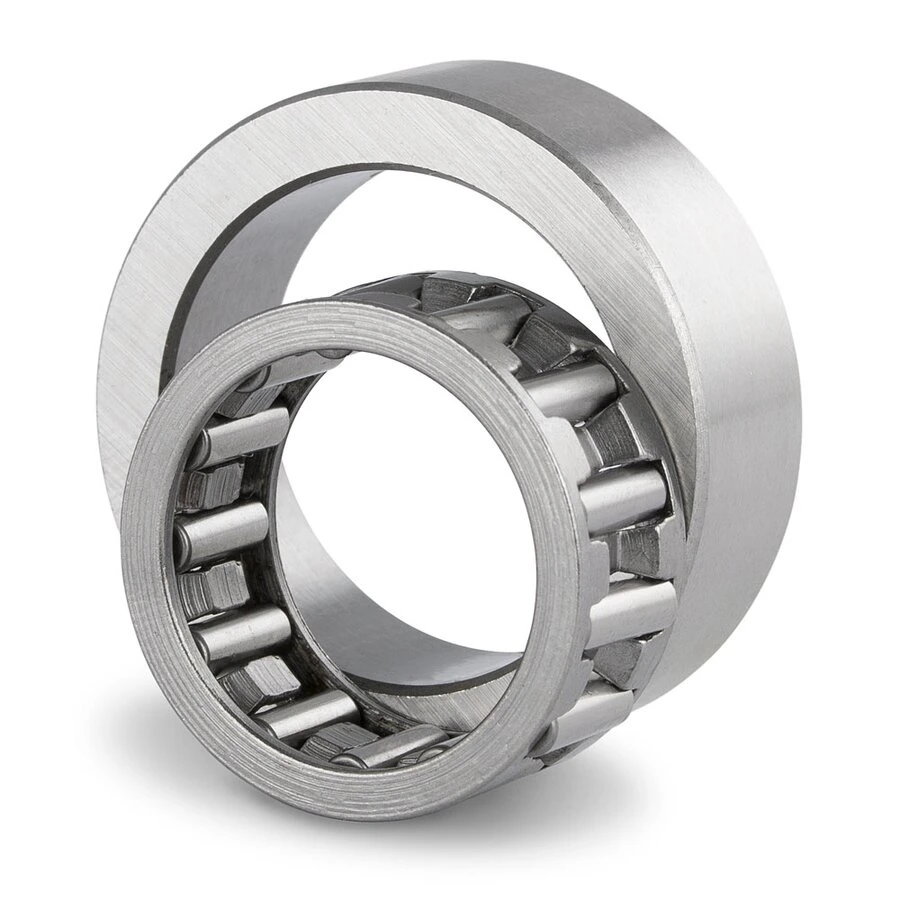

Support Rollers Without Flange Rings, Without An Inner Ring

  • RSTO Series
  • RNA Series
IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)

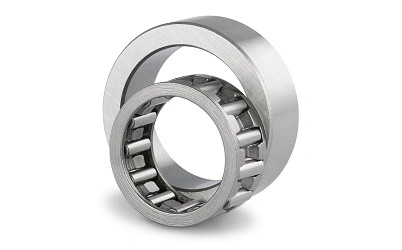

Support Rollers Without Flange Rings, With An Inner Ring

  • STO Series
  • NA Series
IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)

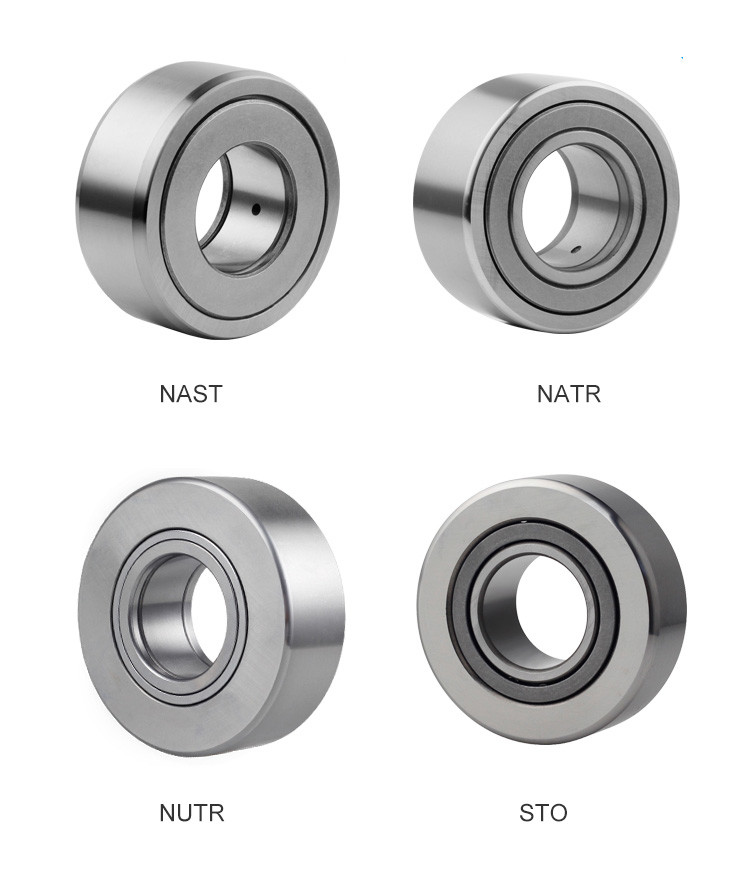

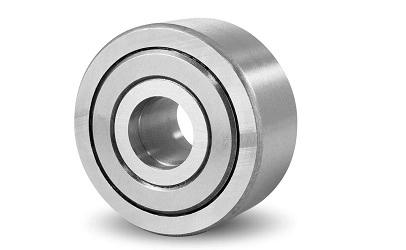

Support Rollers With Flange Rings, With An Inner Ring

  • NATR Series
  • NATV Series
  • PWTR Series
  • NUTR Series
  • NAST Series
  • CYR Series
IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)

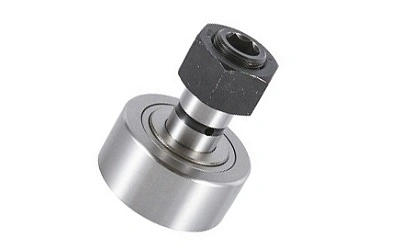

Cam Followers

  • KR,KRE,KRV,KRVE Series
  • NUKR,NUKRE Series
  • PWKR,PWKRE Series
  • CF,CFE,CFH Series
IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)
Product Parameters

Technical specification

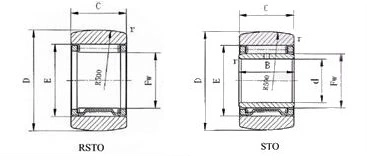

RSTO, STO series Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and suitable for cam drives, slideways, conveying equipment, etc.

The bearings are available with or without an inner ring as well as in open and sealed versions. Metric series, with caged needle rollers, available with cylindrical OD(suffix X).



IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)
IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)
IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)
Bearing No. Dimensions (mm) Basic Load Rating (KN) Limited Speed Mass
D C Fw E r
min
C Co rpm kg
RSTO 5 16 7.8 7 10 0.3 2.04 2.04 12800 0.009
RSTO 6 19 9.8 10 13 0.3 3.00 3.60 8000 0.013
RSTO 8 24 9.8 12 15 0.3 3.36 4.40 6400 0.021
RSTO 10 30 11.8 14 20 0.3 6.72 7.36 4400 0.042
RSTO 12 32 11.8 16 22 0.3 7.12 8.08 3600 0.049
RSTO 15 35 11.8 20 26 0.3 7.28 8.56 2640 0.050
RSTO 17 40 15.8 22 29 0.3 11.44 14.16 2240 0.088
RSTO 20 47 15.8 25 32 0.3 12.96 17.20 1920 0.130
RSTO 25 52 15.8 30 37 0.3 13.20 18.32 1440 0.150
RSTO 30 62 19.8 38 46 0.6 18.64 28.00 1040 0.255
RSTO 35 72 19.8 42 50 0.6 20.40 32.00 880 0.375
RSTO 40 80 19.8 50 58 1.0 19.20 31.20 680 0.420
RSTO 45 85 19.8 55 60 1.0 20.40 34.40 600 0.453
RSTO 50 90 19.8 60 68 1.0 20.80 37.20 520 0.481
Bearing No. Dimensions (mm) Basic Load Rating (KN) Limited Speed Mass
d D C B Fw E r min C Co rpm kg
STO 6 6 19 9.8 10 10 13 0.3 3.00 3.60 8000 0.017
STO 8 8 24 9.8 10 12 15 0.3 3.36 4.40 6400 0.026
STO 10 10 30 11.8 12 14 20 0.3 6.72 7.36 4400 0.049
STO 12 12 32 11.8 12 16 22 0.3 7.12 8.08 3600 0.057
STO 15 15 35 11.8 12 20 26 0.3 7.28 8.56 2640 0.063
STO 17 17 40 15.8 16 22 29 0.3 11.44 14.16 2240 0.107
STO 20 20 47 15.8 16 25 32 0.3 12.96 17.20 1920 0.152
STO 25 25 52 15.8 16 30 37 0.3 13.20 18.32 1440 0.177
STO 30 30 62 19.8 20 38 46 0.6 18.64 28.00 1040 0.308
STO 35 35 72 19.8 20 42 50 0.6 20.40 32.00 880 0.441
STO 40 40 80 19.8 20 50 58 1.0 19.20 31.20 680 0.530
STO 45 45 85 19.8 20 55 60 1.0 20.40 34.40 600 0.576
STO 50 50 90 19.8 20 60 68 1.0 20.80 37.20 520 0.617

Packaging & Shipping


IKO Yoke Type Track Roller Bearings(STO25 STO30 STO35 STO40 STO45 STO50)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
