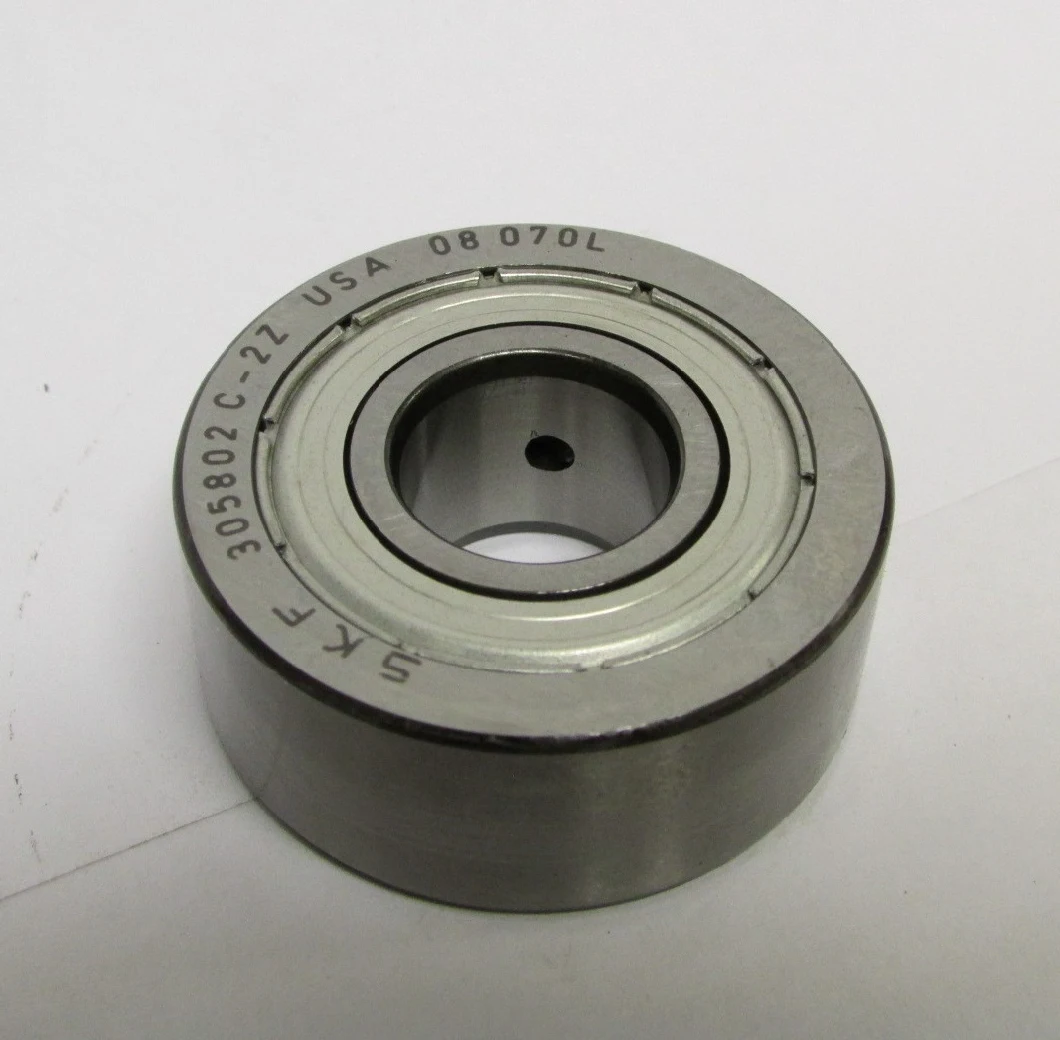

Double Row Track Bearing 305804C-2Z

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description
LR Series Cam rollers can be used in the heavy loads track or used as an idler wheel. They are widely used in the particular application that the friction should be reduced.

The outer diameter surface of rollers is shaped to the crowned runner surfaces with R500, so make the stresses well when rollers working.

Rollers take the internal structure design of deep groove ball bearings or double row angular contact ball bearings and have a particular thick-walled outer ring, so the rollers can accommodate higher loads.

Rollers are made of the high-quality bearing steel processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multipurposes grease. Rollers take the metal shields (suffix ZZ or KDD ) or rubber seals (suffix 2RS or NPP) to prevent the dust. Some types of the rollers can be made from the corrosion resistance stainless steel.
Product Parameters



Double Row Track Bearing (305800C-2Z 305801C-2Z 305802C-2Z 305803C-2Z 305804C-2Z 305805C-2Z 305806C-2Z 305807C-2Z)
Double Row Track Bearing (305800C-2Z 305801C-2Z 305802C-2Z 305803C-2Z 305804C-2Z 305805C-2Z 305806C-2Z 305807C-2Z)
Double Row Track Bearing (305800C-2Z 305801C-2Z 305802C-2Z 305803C-2Z 305804C-2Z 305805C-2Z 305806C-2Z 305807C-2Z)
Double Row Track Bearing (305800C-2Z 305801C-2Z 305802C-2Z 305803C-2Z 305804C-2Z 305805C-2Z 305806C-2Z 305807C-2Z)
Double Row Track Bearing (305800C-2Z 305801C-2Z 305802C-2Z 305803C-2Z 305804C-2Z 305805C-2Z 305806C-2Z 305807C-2Z)
Double Row Track Bearing (305800C-2Z 305801C-2Z 305802C-2Z 305803C-2Z 305804C-2Z 305805C-2Z 305806C-2Z 305807C-2Z)
Bearing No.
d
D
B
Mass
I N A
S K F
LR5200-2RS 10 32 14 70 LR5200 NPPU 305800C-2RS1
LR5201-2RS 12 35 15.9 80 LR5201 NPPU 305801C-2RS1
LR5202-2RS 15 40 15.9 110 LR5202 NPPU 305802C-2RS1
LR5203-2RS 17 47 17.5 170 LR5203 NPPU 305803C-2RS1
LR5204-2RS 20 52 20.6 230 LR5204 NPPU 305804C-2RS1
LR5205-2RS 25 62 20.6 340 LR5205 NPPU 305805C-2RS1
LR5206-2RS 30 72 23.8 510 LR5206 NPPU 305806C-2RS1
LR5207-2RS 35 80 27 660 LR5207 NPPU 305807C-2RS1
LR5208-2RS 40 85 30.2 750 LR5208 NPPU
LR5200-2Z 10 32 14 70 LR5200 KDDU 305800C-2Z
LR5201-2Z 12 35 15.9 80 LR5201 KDDU 305801C-2Z
LR5202-2Z 15 40 15.9 110 LR5202 KDDU 305802C-2Z
LR5203-ZZ 17 47 17.5 170 LR5203 KDDU 305803C-2Z
LR5204-2Z 20 52 20.6 230 LR5204 KDDU 305804C-2Z
LR5205-2Z 25 62 20.6 340 LR5205 KDDU 305805C-2Z
LR5206-2Z 30 72 23.8 510 LR5206 KDDU 305806C-2Z
LR5207-2Z 35 80 27 660 LR5207 KDDU 305807C-2Z
LR5208-2Z 40 85 30.2 750 LR5208 KDDU



Packaging & Shipping



Double Row Track Bearing (305800C-2Z 305801C-2Z 305802C-2Z 305803C-2Z 305804C-2Z 305805C-2Z 305806C-2Z 305807C-2Z)
