LR Series Cam rollers can be used in the heavy loads track or used as an idler wheel. They are widely used in the particular application that the friction should be reduced.

The outer diameter surface of rollers is shaped to the crowned runner surfaces with R500, so make the stresses well when rollers working.

Rollers take the internal structure design of deep groove ball bearings or double row angular contact ball bearings and have a particular thick-walled outer ring, so the rollers can accommodate higher loads.

Rollers are made of the high-quality bearing steel processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multipurposes grease. Rollers take the metal shields (suffix ZZ or KDD ) or rubber seals (suffix 2RS or NPP) to prevent the dust. Some types of the rollers can be made from the corrosion resistance stainless steel.

Track Roller Bearing(305700C-2RS1 305701C-2RS1 305702C-2RS1 305703C-2RS1 305704C-2RS1 305705C-2RS1 305706C-2RS1 305707C-2RS1)

Bearing No.	d	D	B	Mass	I N A	S K F
LR5200-X-2RS	10	32	14	70	LR5200 NPP	305700C-2RS1
LR5201-X-2RS	12	35	15.9	80	LR5201 NPP	305701C-2RS1
LR5202-X-2RS	15	40	15.9	110	LR5202 NPP	305702C-2RS1
LR5203-X-2RS	17	47	17.5	170	LR5203 NPP	305703C-2RS1
LR5204-X-2RS	20	52	20.6	230	LR5204 NPP	305704C-2RS1
LR5205-X-2RS	25	62	20.6	340	LR5205 NPP	305705C-2RS1
LR5206-X-2RS	30	72	23.8	510	LR5206 NPP	305706C-2RS1
LR5207-X-2RS	35	80	27	660	LR5207 NPP	305707C-2RS1
LR5200-X-2Z	10	32	14	70	LR5200 KDD	305700C-2Z
LR5201-X-2Z	12	35	15.9	80	LR5201 KDD	305701C-2Z
LR5202-X-2Z	15	40	15.9	110	LR5202 KDD	305702C-2Z
LR5203-X-2Z	17	47	17.5	170	LR5203 KDD	305703C-2Z
LR5204-X-2Z	20	52	20.6	230	LR5204 KDD	305704C-2Z
LR5205-X-2Z	25	62	20.6	340	LR5205 KDD	305705C-2Z
LR5206-X-2Z	30	72	23.8	510	LR5206 KDD	305706C-2Z
LR5207-X-2Z	35	80	27	660	LR5207 KDD	305707C-2Z
LR5208-X-2Z	40	85	30.2	750	LR5208 KDD

Track Roller Bearing(305700C-2RS1 305701C-2RS1 305702C-2RS1 305703C-2RS1 305704C-2RS1 305705C-2RS1 305706C-2RS1 305707C-2RS1)

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.

Please contact us immediately if you have any questions.

Place of Origin:	China
Certification:	ISO

Minimum Order Quantity:	1
Price:	1-10
Packaging Details:	General Export Packing
Delivery Time:	In stock
Payment Terms:	T/T, Western Union, PayPal

	Shanghai Tonsor Machinery Co., Ltd
	No. 1399, Minsheng Road, Pudong New District, Shanghai, China
	info@sts-machinery.com

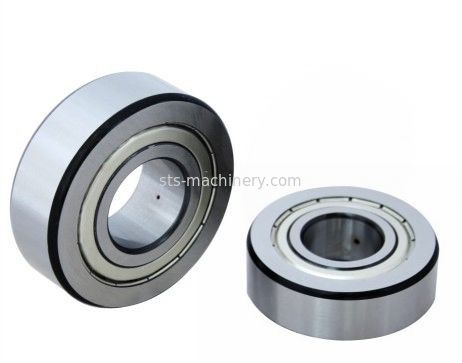

Track Roller Bearing 305703C-2RS1
