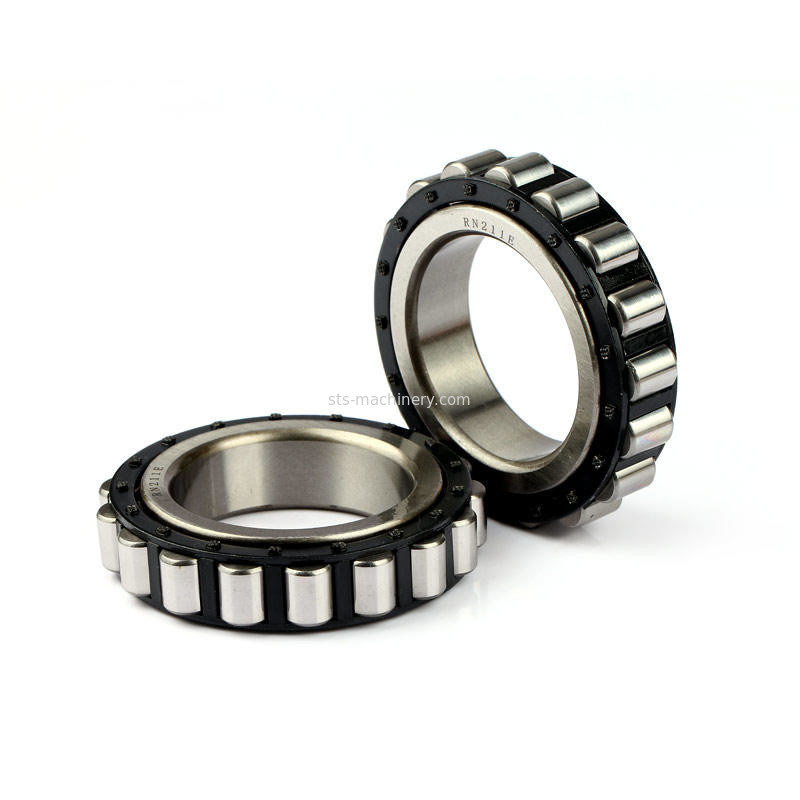

Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

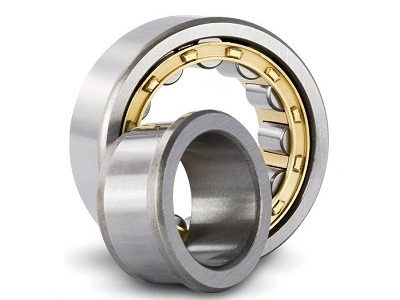

Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF, NH and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.

The bearing has a separable inner ring and outer ring structure.Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.

Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222

Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222
Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222
Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222

Product Parameters

Technical specification

Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Types NU, N, NNU, and NN are suitable as free-end bearings.
Types NJ and NF can sustain limited axial loads in one direction.
Types NH and NUP can be used as fixed-end bearings.
NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
The inner ring loose rib of an NUP-type cylindrical roller bearing should be mounted so that the marked side is on the outside.
Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222



Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222

Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222
Cylindrical Roller Bearing Without Outer Ring RN307 308 309 310EM RN204 RN205 RN206 RN207 RN208 209 RN211 RN219 RN222
Bearing Number Dimension (mm)
RN1010 50×72.5×16
RN1012 60×85.5×18
RN1014 70×100×20
RN1018 90×127×24
RN1024/P6 120×165×28
RN202TN1 15×30×11
RN202M 15×30×11
RN203 17×33.9×12
RN203M 17×33.9×12
RN204M 20×40×14
RN204 20×40×14
RN204EM 20×41.5×14
RN204E 20×41.5×14
RN205 25×45×15
RN205M 25×45×15
RN205EM 25×46.5×15
RN205E 25×46.5×15
RN205/Z1 25×45×15
RN206 30×53.5×16
RN206M 30×53.5×16
RN206F1 30×53.5×16
RN206 30×53.5×16
RN206EM 30×55.5×16
RN206E 30×55.5×16
RN207 35×61.8×17
RN207M 35×61.8×17
RN207EM 35×64×17
RN207E 35×64×17
RN207EF1 35×64×17
RN208 40×70×18
RN208M 40×70×18
RN208EM 40×71.5×18
RN208E 40×71.5×18
