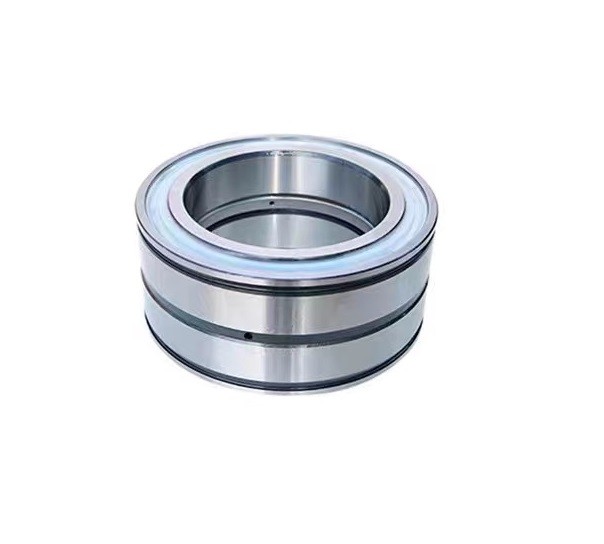

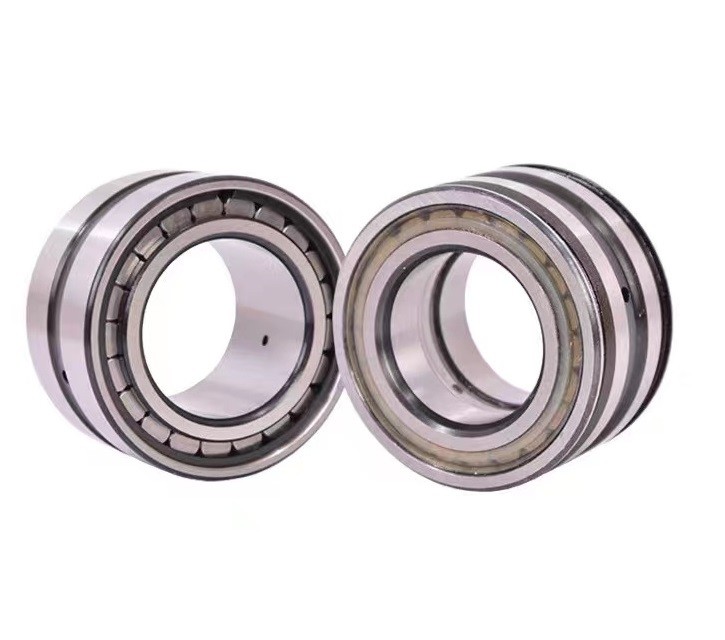

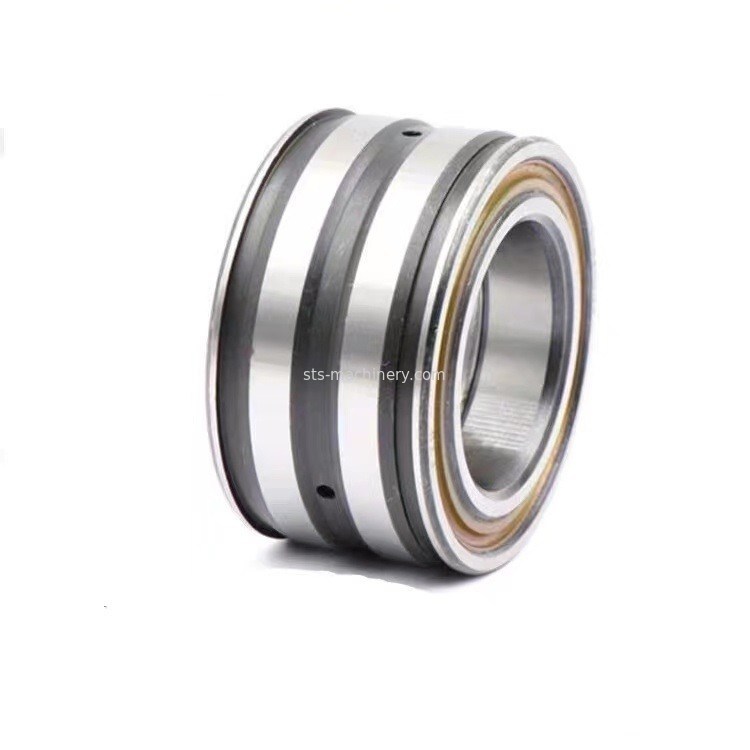

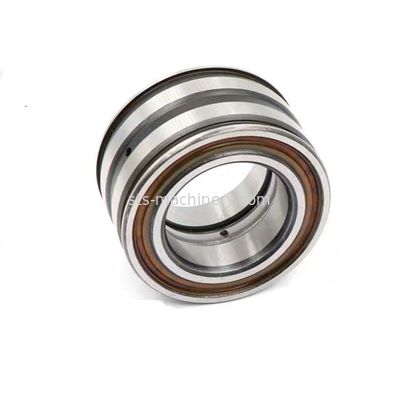

Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-100
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF, NH and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.

The bearing has a separable inner ring and outer ring structure.Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.

Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922 SL183022 SL182222 SL192322 SL182924)

Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922 SL183022 SL182222 SL192322 SL182924)
Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922 SL183022 SL182222 SL192322 SL182924)
Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922 SL183022 SL182222 SL192322 SL182924)

Product Parameters

Technical specification

Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Types NU, N, NNU, and NN are suitable as free-end bearings.
Types NJ and NF can sustain limited axial loads in one direction.
Types NH and NUP can be used as fixed-end bearings.
NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
The inner ring loose rib of an NUP-type cylindrical roller bearing should be mounted so that the marked side is on the outside.
Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922 SL183022 SL182222 SL192322 SL182924)



Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922 SL183022 SL182222 SL192322 SL182924)

Single row fully assembled cylindrical roller bearings Double Row Fully Loaded Cylindrical Roller Bearings Weight Dimensions(mm) Load Ratings
(KN)
MODEL MODEL MODEL MODEL KG d D B S Co Cor
SL183004 NCF3004 CV     0.11 20 42 16 1.5 30.5 26.5
SL182204 NCF2204 V     0.16 20 47 18 1 45.5 37.5
    SL185004 NNCF5004 V 0.2 20 42 30 1 53 53
SL183005 NCF3005 CV     0.12 25 47 16 1.5 35 32.5
SL182205 NCF2205 V     0.18 25 52 18 1 51 45
SL192305 NJG2305 VH     0.37 25 62 24 2 73 60
    SL185005 NNCF5005 V 0.23 25 47 30 1 60 65
SL183006 NCF3006 CV     0.2 30 55 19 2 45 43
SL182206 NCF2206 V     0.3 30 62 20 1 70 65
SL192306 NJG2306 VH     0.56 30 72 27 2 100 88
    SL185006 NNCF5006 V 0.35 30 55 34 1.5 78 84
SL183007 NCF3007 CV     0.26 35 62 20 2 55 55
SL182207 NCF2207 V     0.44 35 72 23 1 88 79
SL192307 NJG2307 VH     0.74 35 80 31 2 126 112
    SL185007 NNCF5007 V 0.46 35 62 36 1.5 94 109
SL183008 NCF3008 CV     0.31 40 68 21 2 66 68
SL182208 NCF2208 V     0.55 40 80 23 1 97 93
SL192308 NJG2308 VH     1.01 40 90 33 2 170 156
    SL185008 NNCF5008 V 0.56 40 68 38 1.5 113 136
SL183009 NCF3009 CV     0.4 45 75 23 2 70 76
SL182209 NCF2209 V     0.59 45 85 23 1 101 99
SL192309 NJG2309 VH     1.37 45 100 36 3 181 169
    SL185009 NNCF5009 V 0.71 45 75 40 1.5 120 151
SL183010 NCF3010 CV     0.43 50 80 23 2 88 96
SL182210 NCF2210 V     0.64 50 90 23 1 109 113
SL192310 NJG2310 VH     1.81 50 110 40 3 232 219
    SL185010 NNCF5010 V 0.76 50 80 40 1.5 151 191
SL183011 NCF3011 CV     0.64 55 90 26 2 120 136
SL182211 NCF2211 V     0.87 55 100 25 1 140 150
SL192311 NJG2311 VH     2.28 55 120 43 3 270 255
    SL185011 NNCF5011 V 1.16 55 90 46 1.5 206 275
SL182912 NCF2912 V     0.29 60 85 16 1 63 78
SL183012 NCF3012 CV     0.69 60 95 26 2 123 145
SL182212 NCF2212 V     1.18 60 110 28 1.5 169 180
SL192312 NJG2312 VH     2.88 60 130 46 3 285 280
    SL185012 NNCF5012 V 1.24 60 95 46 1.5 212 290
SL182913 NCF2913 V     0.31 65 90 16 1 67 86
SL183013 NCF3013 CV     0.73 65 100 26 2 130 159
SL182213 NCF2213 V     1.57 65 120 31 1.5 198 214
SL192313 NJG2313 VH     3.52 65 140 48 3.5 350 355
    SL185013 NNCF5013 V 1.32 65 100 46 1.5 223 320
SL182914 NCF2914 V     0.49 70 100 19 1 88 114
SL183014 NCF3014 CV     1.02 70 110 30 3 153 `76
SL182214 NCF2214 V     1.66 70 125 31 1.5 184 117
SL192314 NJG2314 VH     4.33 70 150 51 3.5 385 390
    SL185014 NNCF5014 V 1.85 70 110 54 3 265 355
SL182915 NCF2915 V     0.52 75 105 19 1 91 121
SL183015 NCF3015 CV     1.06 75 115 30 3 162 194
SL182215 NCF2215 V     1.75 75 130 31 1.5 190 241
SL192315 NJG2315 VH     5.3 75 160 55 3.5 460 465
    SL185015 NNCF5015 V 1.93 75 115 54 3 275 390
SL182916 NCF2916 V     0.55 80 110 19 1 94 129
SL183016 NCF3016 CV     1.43 80 125 34 4 173 225
SL182216 NCF2216 V     2.15 80 140 33 1.5 226 285
SL192316 NJG2316 VH     6.32 80 170 58 3.5 540 560
    SL185016 NNCF5016 V 2.59 80 125 60 3.5 295 450
SL182917 NCF2917 V     0.81 85 120 22 1 118 162
SL183017 NCF3017 CV     1.51 85 130 34 4 178 237
SL182217 NCF2217 V     2.74 85 150 36 1.5 255 325
SL192317 NJG2317 VH     7.32 85 180 60 4 570 620
    SL185017 NNCF5017 V 2.72 85 130 60 3.5 305 475
SL182918 NCF2918 V     0.84 90 125 22 1 122 172
SL183018 NCF3018 CV     1.97 90 140 37 4 208 280
SL182218 NCF2218 V     3.48 90 160 40 2.5 290 370
SL192318 NJG2318 VH     8.83 90 190 64 4 620 660
    SL185018 NNCF5018 V 3.62 90 140 67 4 355 560
SL182919 NCF2919 V     0.86 95 130 22 1 132 179
SL182219 NCF2219 V     4.17 95 170 43 2.5 340 435
SL192319 NJG2319 VH     10.2 95 200 67 4 650 720
SL182920 NCF2920 V     1.14 100 140 24 1.5 152 206
SL183020 NCF3020 CV     2.15 100 150 37 4 219 310
SL182220 NCF2220 V     5.13 100 180 46 2.5 395 520
SL192320 NJG2320 VH     13 100 215 73 4 790 860
    SL185020 NNCF5020 V 3.94 100 150 67 4 375 620
SL182922 NCF2922 V     1.23 110 150 24 1.5 155 220
SL183022 NCF3022 CV     3.5 110 170 45 5.5 285 395
SL182222 NCF2222 V     7.24 110 200 53 4 455 590
SL192322 NJG2322 VH     17 110 240 80 5 950 980
    SL185022 NNCF5022 V 6.32 110 170 80 5 490 790
SL182924 NCF2924 V     1.73 120 165 27 1.5 199 295
SL183024 NCF3024 CV     3.8 120 180 46 5.5 300 435
SL182224 NCF2224 V     9.08 120 215 58 4 540 730
SL192324 NJG2324 VH     22.3 120 260 86 5 1130 1240
    SL185024 NNCF5024 V 6.77 120 180 80 5 520 870
SL182926 NCF2926 V     2.33 130 180 30 2 238 355
SL183026 NCF3026 CV     5.65 130 200 52 5.5 435 620
SL182226 NCF2226 V     11.25 130 230 64 5 630 860
    SL185026 NNCF5026 V 10.2 130 200 95 5 740 1230
SL182928 NCF2928 V     2.42 140 190 30 2 260 385
SL183028 NCF3028 CV     6.04 140 210 53 5.5 455 680
SL182228 NCF2228 V     14.47 140 250 68 5 720 1020
    SL185028 NNCF5028 V 11.1 140 210 95 5 780 1360
SL182930 NCF2930 V     3.77 150 210 36 2.5 340 490
SL183030 NCF3030 CV     7.33 150 225 56 7 480 710
SL182230 NCF2230 V     18.43 150 270 73 6 830 1180
    SL185030 NNCF5030 V 13.3 150 225 100 6 810 1390
SL182932 NCF2932 V     4 160 220 36 2.5 350 520
SL183032 NCF3032 CV     8.8 160 240 60 7 550 820
SL182232 NCF2232 V     23 160 290 80 6 1030 1490
    SL185032 NNCF5032 V 16.2 160 240 109 6 952 1600
Packaging & Shipping

Cylindrical Roller Bearings(SL182218 SL192318 SL182919 SL182219 SL192319 SL182920 SL183020 SL182220 SL192320 SL182922 SL183022 SL182222 SL192322 SL182924)



Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
