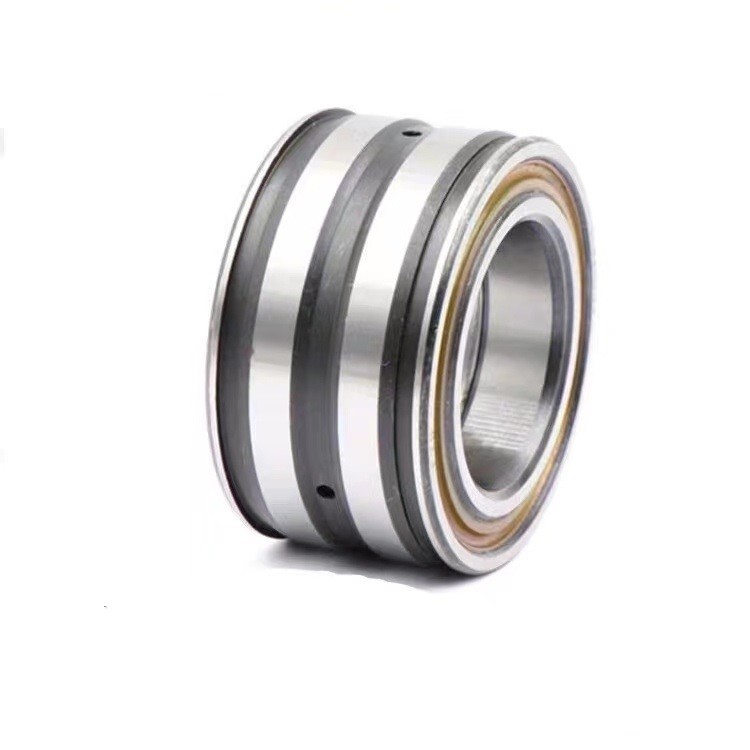

Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF, NH and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.
The bearing has a separable inner ring and outer ring structure.Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.
Technical specification
Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.
Single row fully assembled cylindrical roller bearings | Double Row Fully Loaded Cylindrical Roller Bearings | Weight | Dimensions(mm) | Load Ratings (KN) |
||||||
S K F MODEL | S K F MODEL | KG | d | D | B | S | Co | Cor | ||
SL183004 | NCF3004 CV | 0.11 | 20 | 42 | 16 | 1.5 | 30.5 | 26.5 | ||
SL182204 | NCF2204 V | 0.16 | 20 | 47 | 18 | 1 | 45.5 | 37.5 | ||
SL185004 | NNCF5004 V | 0.2 | 20 | 42 | 30 | 1 | 53 | 53 | ||
SL183005 | NCF3005 CV | 0.12 | 25 | 47 | 16 | 1.5 | 35 | 32.5 | ||
SL182205 | NCF2205 V | 0.18 | 25 | 52 | 18 | 1 | 51 | 45 | ||
SL192305 | NJG2305 VH | 0.37 | 25 | 62 | 24 | 2 | 73 | 60 | ||
SL185005 | NNCF5005 V | 0.23 | 25 | 47 | 30 | 1 | 60 | 65 | ||
SL183006 | NCF3006 CV | 0.2 | 30 | 55 | 19 | 2 | 45 | 43 | ||
SL182206 | NCF2206 V | 0.3 | 30 | 62 | 20 | 1 | 70 | 65 | ||
SL192306 | NJG2306 VH | 0.56 | 30 | 72 | 27 | 2 | 100 | 88 | ||
SL185006 | NNCF5006 V | 0.35 | 30 | 55 | 34 | 1.5 | 78 | 84 | ||
SL183007 | NCF3007 CV | 0.26 | 35 | 62 | 20 | 2 | 55 | 55 | ||
SL182207 | NCF2207 V | 0.44 | 35 | 72 | 23 | 1 | 88 | 79 | ||
SL192307 | NJG2307 VH | 0.74 | 35 | 80 | 31 | 2 | 126 | 112 | ||
SL185007 | NNCF5007 V | 0.46 | 35 | 62 | 36 | 1.5 | 94 | 109 | ||
SL183008 | NCF3008 CV | 0.31 | 40 | 68 | 21 | 2 | 66 | 68 | ||
SL182208 | NCF2208 V | 0.55 | 40 | 80 | 23 | 1 | 97 | 93 | ||
SL192308 | NJG2308 VH | 1.01 | 40 | 90 | 33 | 2 | 170 | 156 | ||
SL185008 | NNCF5008 V | 0.56 | 40 | 68 | 38 | 1.5 | 113 | 136 | ||
SL183009 | NCF3009 CV | 0.4 | 45 | 75 | 23 | 2 | 70 | 76 | ||
SL182209 | NCF2209 V | 0.59 | 45 | 85 | 23 | 1 | 101 | 99 | ||
SL192309 | NJG2309 VH | 1.37 | 45 | 100 | 36 | 3 | 181 | 169 | ||
SL185009 | NNCF5009 V | 0.71 | 45 | 75 | 40 | 1.5 | 120 | 151 | ||
SL183010 | NCF3010 CV | 0.43 | 50 | 80 | 23 | 2 | 88 | 96 | ||
SL182210 | NCF2210 V | 0.64 | 50 | 90 | 23 | 1 | 109 | 113 | ||
SL192310 | NJG2310 VH | 1.81 | 50 | 110 | 40 | 3 | 232 | 219 | ||
SL185010 | NNCF5010 V | 0.76 | 50 | 80 | 40 | 1.5 | 151 | 191 | ||
SL183011 | NCF3011 CV | 0.64 | 55 | 90 | 26 | 2 | 120 | 136 | ||
SL182211 | NCF2211 V | 0.87 | 55 | 100 | 25 | 1 | 140 | 150 | ||
SL192311 | NJG2311 VH | 2.28 | 55 | 120 | 43 | 3 | 270 | 255 | ||
SL185011 | NNCF5011 V | 1.16 | 55 | 90 | 46 | 1.5 | 206 | 275 | ||
SL182912 | NCF2912 V | 0.29 | 60 | 85 | 16 | 1 | 63 | 78 | ||
SL183012 | NCF3012 CV | 0.69 | 60 | 95 | 26 | 2 | 123 | 145 | ||
SL182212 | NCF2212 V | 1.18 | 60 | 110 | 28 | 1.5 | 169 | 180 | ||
SL192312 | NJG2312 VH | 2.88 | 60 | 130 | 46 | 3 | 285 | 280 | ||
SL185012 | NNCF5012 V | 1.24 | 60 | 95 | 46 | 1.5 | 212 | 290 | ||
SL182913 | NCF2913 V | 0.31 | 65 | 90 | 16 | 1 | 67 | 86 | ||
SL183013 | NCF3013 CV | 0.73 | 65 | 100 | 26 | 2 | 130 | 159 | ||
SL182213 | NCF2213 V | 1.57 | 65 | 120 | 31 | 1.5 | 198 | 214 | ||
SL192313 | NJG2313 VH | 3.52 | 65 | 140 | 48 | 3.5 | 350 | 355 | ||
SL185013 | NNCF5013 V | 1.32 | 65 | 100 | 46 | 1.5 | 223 | 320 | ||
SL182914 | NCF2914 V | 0.49 | 70 | 100 | 19 | 1 | 88 | 114 | ||
SL183014 | NCF3014 CV | 1.02 | 70 | 110 | 30 | 3 | 153 | `76 | ||
SL182214 | NCF2214 V | 1.66 | 70 | 125 | 31 | 1.5 | 184 | 117 | ||
SL192314 | NJG2314 VH | 4.33 | 70 | 150 | 51 | 3.5 | 385 | 390 | ||
SL185014 | NNCF5014 V | 1.85 | 70 | 110 | 54 | 3 | 265 | 355 | ||
SL182915 | NCF2915 V | 0.52 | 75 | 105 | 19 | 1 | 91 | 121 | ||
SL183015 | NCF3015 CV | 1.06 | 75 | 115 | 30 | 3 | 162 | 194 | ||
SL182215 | NCF2215 V | 1.75 | 75 | 130 | 31 | 1.5 | 190 | 241 | ||
SL192315 | NJG2315 VH | 5.3 | 75 | 160 | 55 | 3.5 | 460 | 465 | ||
SL185015 | NNCF5015 V | 1.93 | 75 | 115 | 54 | 3 | 275 | 390 | ||
SL182916 | NCF2916 V | 0.55 | 80 | 110 | 19 | 1 | 94 | 129 | ||
SL183016 | NCF3016 CV | 1.43 | 80 | 125 | 34 | 4 | 173 | 225 | ||
SL182216 | NCF2216 V | 2.15 | 80 | 140 | 33 | 1.5 | 226 | 285 | ||
SL192316 | NJG2316 VH | 6.32 | 80 | 170 | 58 | 3.5 | 540 | 560 | ||
SL185016 | NNCF5016 V | 2.59 | 80 | 125 | 60 | 3.5 | 295 | 450 | ||
SL182917 | NCF2917 V | 0.81 | 85 | 120 | 22 | 1 | 118 | 162 | ||
SL183017 | NCF3017 CV | 1.51 | 85 | 130 | 34 | 4 | 178 | 237 | ||
SL182217 | NCF2217 V | 2.74 | 85 | 150 | 36 | 1.5 | 255 | 325 | ||
SL192317 | NJG2317 VH | 7.32 | 85 | 180 | 60 | 4 | 570 | 620 | ||
SL185017 | NNCF5017 V | 2.72 | 85 | 130 | 60 | 3.5 | 305 | 475 | ||
SL182918 | NCF2918 V | 0.84 | 90 | 125 | 22 | 1 | 122 | 172 | ||
SL183018 | NCF3018 CV | 1.97 | 90 | 140 | 37 | 4 | 208 | 280 | ||
SL182218 | NCF2218 V | 3.48 | 90 | 160 | 40 | 2.5 | 290 | 370 | ||
SL192318 | NJG2318 VH | 8.83 | 90 | 190 | 64 | 4 | 620 | 660 | ||
SL185018 | NNCF5018 V | 3.62 | 90 | 140 | 67 | 4 | 355 | 560 | ||
SL182919 | NCF2919 V | 0.86 | 95 | 130 | 22 | 1 | 132 | 179 | ||
SL182219 | NCF2219 V | 4.17 | 95 | 170 | 43 | 2.5 | 340 | 435 | ||
SL192319 | NJG2319 VH | 10.2 | 95 | 200 | 67 | 4 | 650 | 720 | ||
SL182920 | NCF2920 V | 1.14 | 100 | 140 | 24 | 1.5 | 152 | 206 | ||
SL183020 | NCF3020 CV | 2.15 | 100 | 150 | 37 | 4 | 219 | 310 | ||
SL182220 | NCF2220 V | 5.13 | 100 | 180 | 46 | 2.5 | 395 | 520 | ||
SL192320 | NJG2320 VH | 13 | 100 | 215 | 73 | 4 | 790 | 860 | ||
SL185020 | NNCF5020 V | 3.94 | 100 | 150 | 67 | 4 | 375 | 620 | ||
SL182922 | NCF2922 V | 1.23 | 110 | 150 | 24 | 1.5 | 155 | 220 | ||
SL183022 | NCF3022 CV | 3.5 | 110 | 170 | 45 | 5.5 | 285 | 395 | ||
SL182222 | NCF2222 V | 7.24 | 110 | 200 | 53 | 4 | 455 | 590 | ||
SL192322 | NJG2322 VH | 17 | 110 | 240 | 80 | 5 | 950 | 980 | ||
SL185022 | NNCF5022 V | 6.32 | 110 | 170 | 80 | 5 | 490 | 790 | ||
SL182924 | NCF2924 V | 1.73 | 120 | 165 | 27 | 1.5 | 199 | 295 | ||
SL183024 | NCF3024 CV | 3.8 | 120 | 180 | 46 | 5.5 | 300 | 435 | ||
SL182224 | NCF2224 V | 9.08 | 120 | 215 | 58 | 4 | 540 | 730 | ||
SL192324 | NJG2324 VH | 22.3 | 120 | 260 | 86 | 5 | 1130 | 1240 | ||
SL185024 | NNCF5024 V | 6.77 | 120 | 180 | 80 | 5 | 520 | 870 | ||
SL182926 | NCF2926 V | 2.33 | 130 | 180 | 30 | 2 | 238 | 355 | ||
SL183026 | NCF3026 CV | 5.65 | 130 | 200 | 52 | 5.5 | 435 | 620 | ||
SL182226 | NCF2226 V | 11.25 | 130 | 230 | 64 | 5 | 630 | 860 | ||
SL185026 | NNCF5026 V | 10.2 | 130 | 200 | 95 | 5 | 740 | 1230 | ||
SL182928 | NCF2928 V | 2.42 | 140 | 190 | 30 | 2 | 260 | 385 | ||
SL183028 | NCF3028 CV | 6.04 | 140 | 210 | 53 | 5.5 | 455 | 680 | ||
SL182228 | NCF2228 V | 14.47 | 140 | 250 | 68 | 5 | 720 | 1020 | ||
SL185028 | NNCF5028 V | 11.1 | 140 | 210 | 95 | 5 | 780 | 1360 | ||
SL182930 | NCF2930 V | 3.77 | 150 | 210 | 36 | 2.5 | 340 | 490 | ||
SL183030 | NCF3030 CV | 7.33 | 150 | 225 | 56 | 7 | 480 | 710 | ||
SL182230 | NCF2230 V | 18.43 | 150 | 270 | 73 | 6 | 830 | 1180 | ||
SL185030 | NNCF5030 V | 13.3 | 150 | 225 | 100 | 6 | 810 | 1390 | ||
SL182932 | NCF2932 V | 4 | 160 | 220 | 36 | 2.5 | 350 | 520 | ||
SL183032 | NCF3032 CV | 8.8 | 160 | 240 | 60 | 7 | 550 | 820 | ||
SL182232 | NCF2232 V | 23 | 160 | 290 | 80 | 6 | 1030 | 1490 | ||
SL185032 | NNCF5032 V | 16.2 | 160 | 240 | 109 | 6 | 952 | 1600 |
