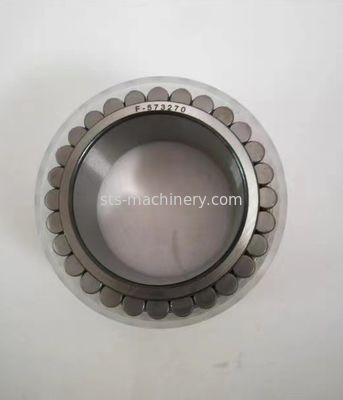

Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-100
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF, NH and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.

The bearing has a separable inner ring and outer ring structure.Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.

Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)

Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)
Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)
Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)
Product Parameters

Technical specification

Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Types NU, N, NNU, and NN are suitable as free-end bearings.
Types NJ and NF can sustain limited axial loads in one direction.
Types NH and NUP can be used as fixed-end bearings.
NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
The inner ring loose rib of an NUP-type cylindrical roller bearing should be mounted so that the marked side is on the outside.
Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)



Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)

MODEL weight(kg) d(mm) Dr(mm) B(mm)
RSL185004 0.12 20 36 30
RSL185005 0.144 25 42 30
RSL185006 0.27 30 49 34
RSL185007 0.28 35 55 36
RSL185008 0.349 40 61 38
RSL185009 0.4 45 66 40
RSL185010 0.46 50 72 40
RSL185011 0.86 55 83 46
RSL185012 0.895 60 86 46
RSL185013 0.94 65 93 46
RSL185014 1.12 70 100 54
RSL185015 1.35 75 107 54
RSL185016 1.8 80 116 60
RSL185017 1.85 85 121 60
RSL185018 2.6 90 130 67
RSL185020 2.6 100 139 67
Packaging & Shipping

Cylindrical Roller Bearings(RSL185012 RSL185013 RSL185014 RSL185015 RSL185016 RSL185017 RSL185018 RSL185020)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
