Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-100
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

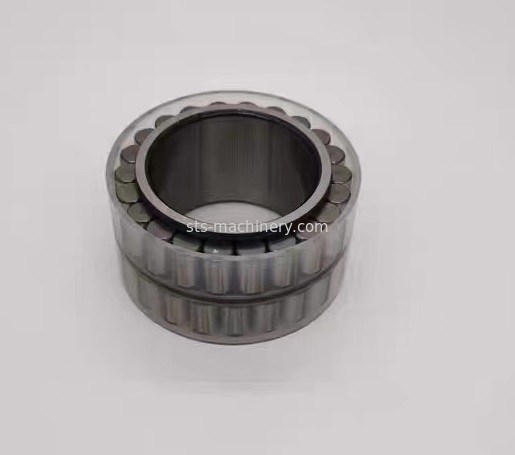

Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF, NH and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.

The bearing has a separable inner ring and outer ring structure.Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.

Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508 2183-2439 2668 2496 2579 2634 2434)

Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508 2183-2439 2668 2496 2579 2634 2434)
Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508 2183-2439 2668 2496 2579 2634 2434)
Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508 2183-2439 2668 2496 2579 2634 2434)
Product Parameters

Technical specification

Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Types NU, N, NNU, and NN are suitable as free-end bearings.
Types NJ and NF can sustain limited axial loads in one direction.
Types NH and NUP can be used as fixed-end bearings.
NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
The inner ring loose rib of an NUP-type cylindrical roller bearing should be mounted so that the marked side is on the outside.
Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508 2183-2439 2668 2496 2579 2634 2434)



Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508 2183-2439 2668 2496 2579 2634 2434)

MODEL d(mm) Dr(mm) B(mm)
2699 18 32 21
2435 22 36 30
2535 - 2834 22 38 23
2400 24 40 26
2597 24 40 34
2686 25 40 26
2613 25 40 32
2519 28 43 27
2776 28 44 34
2594 30 46 32
2687 30 48 40
2510 30 49 26
2178 30 49 24
2651 30 49 25
2198 30 49 26
2683 30 49 30
2508 32 46 25
2183 - 2439 32 46 28
2668 32 48 34
2496 32 51 25
2579 32 51 29
2634 34 50 29
2434 35 49 28
2488 - 2723 35 52 27
2470 35 55 36
2520 35 55 36
2706 35 55 36
2721 35 59 27
2528 35 64 27
2164 38 52 28
2504 38 52 30
2806 38 52 30
2464 38 54 30
2458 38 54 30
2669 38 57 38
2168 40 57 34
2827 40 57 34
2729 40 60 31
2179 40 61 28
2188 40 61 28
2180 40 61 32
2650 40 61 36
2506 40 61 38
2567 40 75 78
2412 42 60 37
2777 42 60 37
2592 44 61 34
2401 44 62 37
2559 45 61 32
2425 45 61 36
2647 45 65 34
2419 - 2722 45 66 38
2828 45 66 38
2619 45 83 85
2807 46 69 45
2530 50 67 32
2720 50 67 40
2719 50 69 40
2492 50 69 32
2609 50 69 38
2590 50 69 43
2645 50 72 31
2466 50 72 37
2518 50 72 39
2190 - 2465 50 72 40
2432 - 2596 50 72 40
2649 50 75 40
2798 50 81 32
2698 55 76 40
2593 55 77 41
2191 - 2444 55 83 46
2509-2685-2819 55 83 47
2731 55 85 41
2620 55 94 100
2558 - 2674 55 88 52
2532 - 2724 60 83 46
2820 60 83 46
2495 - 2566 60 83 47
2821 60 83 50
2805 60 83 65
2799 60 89 52
2656 65 89 48
2652-2783-2816 65 93 46
2527 65 93 58
2617 65 109 110
2700 - 2702 70 95 54
2507 70 100 54
2735 75 115 31x2
2640 75 127 120
2703 80 111 62
2610 80 112 60
2657 80 122 70
2641 80 141 130
2633 85 121 70
2682 85 121 60
2815 85 121 68
2734 90 130 72
2642 95 155 150
2814 100 139 67
2841 100 139 62
2736 110 156 80
2655 130 183 95
2681 140 197 95
Packaging & Shipping

Cylindrical Roller Bearings(2699 2435 2535-2834 2400 2597 2686 2613 2519 2776 2594 2687 2510 2178 2651 2198 2683 2508 2183-2439 2668 2496 2579 2634 2434)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
