Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-200
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

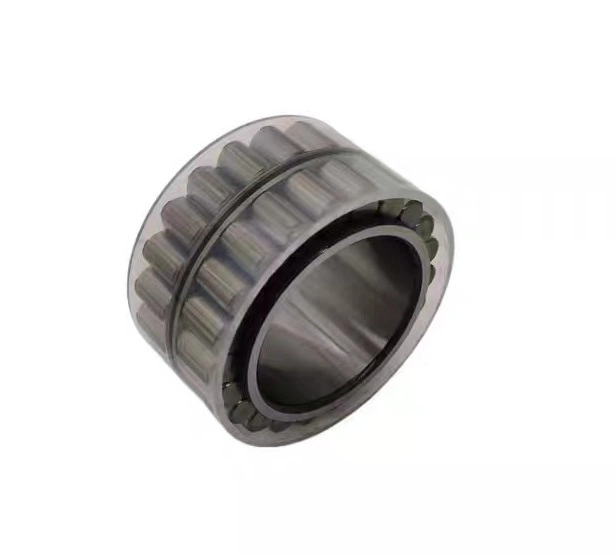

Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF, NH and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.

The bearing has a separable inner ring and outer ring structure.Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.

Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626 2813 2646 2727 2627 2578 2684 2661 2675)

Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626 2813 2646 2727 2627 2578 2684 2661 2675)
Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626 2813 2646 2727 2627 2578 2684 2661 2675)
Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626 2813 2646 2727 2627 2578 2684 2661 2675)
Product Parameters

Technical specification

Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Types NU, N, NNU, and NN are suitable as free-end bearings.
Types NJ and NF can sustain limited axial loads in one direction.
Types NH and NUP can be used as fixed-end bearings.
NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
The inner ring loose rib of an NUP-type cylindrical roller bearing should be mounted so that the marked side is on the outside.
Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626 2813 2646 2727 2627 2578 2684 2661 2675)



Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626 2813 2646 2727 2627 2578 2684 2661 2675)

MODEL d(mm) Dr(mm) B(mm)
2671 15 27 14.0
2662 17 28 19.0
2663 18 30 20.0
2181 18 30 13.0
2522 19 33 19.0
2654 20 33 18.0
2664 20 33 20.0
2486 20 33 16.0
2512 20 35 14.0
2165 20 36 16.0
2829 20 36 16.0
2725 20 40 19.0
2665 22 34 23.0
2666 24 38 23.0
2775 24 38 25.0
2523 24 40 24.0
2625 - 2794 25 42 12.0
2404 25 42 16.0
2193 25 46 18.0
2678 25 46 18.0
2767 - 2795 25 46 18.0
2785 25 46 22.0
2726 25 53 28.0
2667 27 41 25.0
2405 30 49 19.0
2529 30 50 14.0
2524 30 54 31.0
2677 30 55 20.0
2830 30 55 20.0
2842 30 68 31.5
2676 35 63 23.0
2832 35 63 23.0
2707 35 73 35.0
2503 38 54 20.0
2728 40 67 27.0
2843 40 81 37.5
2645 50 72 31.0
2704 50 81 34.0
2790 50 109 50.0
2679 55 88 25.0
2626 60 86 26.0
2813 60 99 28.0
2646 65 93 26.0
2727 65 120 60.0
2627 70 100 30.0
2578 75 107 30.0
2684 75 107 30.0
2661 85 121 34.0
2675 85 133 36.0
2628 90 130 37.0
2808 90 130 37.0
2791 90 176 80.0
2653 100 139 37.0
2768 130 207 64.0
2680 140 264 102.0
2787 325 383 43.0
2788 375 444 48.0
2786 430 506 55.0
2789 485 575 66.0
2159 30 58 81
2660 35 58 98
2189 40 76 100
2199 50 83 115
Packaging & Shipping

Cylindrical Roller Bearings(2667 2405 2529 2524 2677 2830 2842 2676 2832 2707 2503 2728 2843 2645 2704 2790 2679 2626 2813 2646 2727 2627 2578 2684 2661 2675)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
