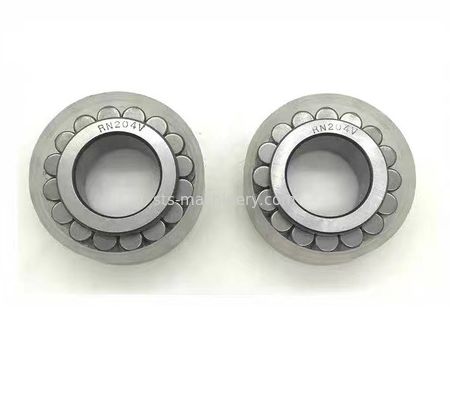

Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-100
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

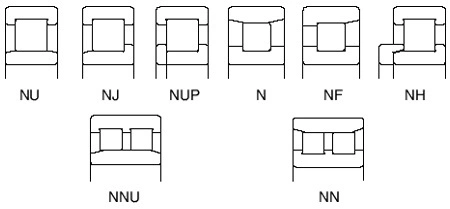

Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF, NH and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.

The bearing has a separable inner ring and outer ring structure.Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.

Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346 F-229076 F-229072.2 F-236487 F-227450)

Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346 F-229076 F-229072.2 F-236487 F-227450)
Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346 F-229076 F-229072.2 F-236487 F-227450)
Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346 F-229076 F-229072.2 F-236487 F-227450)
Product Parameters

Technical specification

Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Types NU, N, NNU, and NN are suitable as free-end bearings.
Types NJ and NF can sustain limited axial loads in one direction.
Types NH and NUP can be used as fixed-end bearings.
NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
The inner ring loose rib of an NUP-type cylindrical roller bearing should be mounted so that the marked side is on the outside.
Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346 F-229076 F-229072.2 F-236487 F-227450)



Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346 F-229076 F-229072.2 F-236487 F-227450)

MODEL inner diameter(mm) outer diameter(mm) height(mm)
567079B 36 54 22
F-385328 36 54 22
F-230698.1 50 72 37
F-208101 60 83 46
F-213617 55 77 41
F-238902 55 94 100
F-209297 65 89 48
F-573270 50 69 32
F-213616 50 69 32
F-238900 40 75 78
F-238901 45 83 85
F-204781 40 61 35.5
F-204782 45 66 37.5
F-204783 50 72 39
F-208098 35 52 26.5
F-208099 40 57 34
F-208101 60 83 46
F-208266 50 72 31
F-210390 28 43 26.5
F-210408 22 38 22.5
F-212543 5o 75 40
F-213617 55 77 41
F-217411 65 93 55
F-219012 45 65 34
F-224619 40 61 39.5
F-229070 25 46 22
F-49285 40 61 32
F-554377 38 54 29.5
F-229071 25 53 28
F-229074.1 35 73 35
F-229077.2 50 109 50
F-209297 65 89 48
F-219593 25 42 12
F-219590 30 50 14
F-218867 45 66 40
F-226012.2 75 105 60
F-201346 50 90 23
F-229076 45 93 45
F-229072.2 30 60 28
F-236487 29 42 31.5
F-227450 32 46 28
F-229075 40 81 37.5
F-217922 18 30 13
F-217843 20 33 18
F-238905 95 155 150
RNN28*44.45*34 28 44 34
F-56718 40 80 23
BC1B320784A 40 80 23
NUP408023 40 80 23
F-224580 42 80 23
NUP428023 42 80 23
F-207813 52 106 35
NUP5210635 52 106 35
F-230876 100 139 37
CRB133720 100 139 37
NUP5511035 50 110 35
RSL183013X3 65 100 28
F-202578 35 57 22
F-202577 30 48 18.5
Packaging & Shipping

Cylindrical Roller Bearings(F-229071 F-229074.1 F-229077.2 F-209297 F-219593 F-219590 F-218867 F-226012.2 F-201346 F-229076 F-229072.2 F-236487 F-227450)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
