| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-20 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |

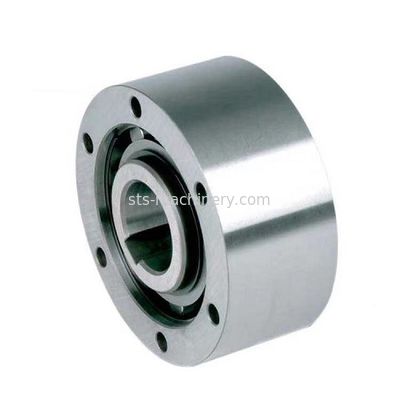

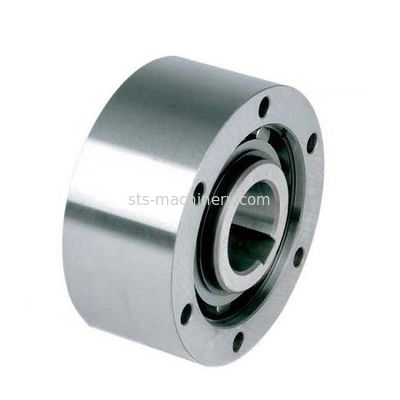

The GC-A series is a bearing-free support roller one-way clutch with the same external dimensions as the standard bearing dimensions. Use bearing installation to withstand axial and radial load.
Standard installation method is that the GC-A series are discharged beside the bearing with the same position and the same tolerance requirements. Inner ring and outer ring are connected with machine piece keys.
Often used in packaging, printing, food, medical, textile, chemical industry, elevator, conveyor and other machinery and equipment.
| Type | Nominal Torque Nm |
Overrunning Limiting Speed r/min |
Dimension mm |
Weight Kg |
|||||
| Inner Race | Outer Race | D H7 |
L | bw×tw | d(H7) | bn×tn | |||
| GC-A1237 | 12 | 1500 | 3100 | 37 | 20 | 4×2.5 | 12 | 4×1.8 | 0.11 |
| GC-A1547 | 40 | 1100 | 2100 | 47 | 30 | 4×2.5 | 15 | 4×1.8 | 0.30 |
| GC-A2062 | 105 | 1000 | 2400 | 62 | 34 | 5×3.0 | 20 | 5×2.3 | 0.55 |
| GC-A2580 | 205 | 850 | 2000 | 80 | 37 | 5×3.0 | 25 | 5×23 | 0.98 |
| GC-A3090 | 360 | 750 | 1700 | 90 | 44 | 6×3.5 | 30 | 6×18 | 1.50 |
| GC-A35100 | 513 | 650 | 1400 | 100 | 48 | 6×3.5 | 35 | 6×2.8 | 2.00 |
| GC-A40110 | 738 | 600 | 1200 | 110 | 56 | 8×4.0 | 40 | 8×33 | 2.80 |
| GC-A45120 | 810 | 500 | 1000 | 120 | 96 | 10×5.0 | 45 | 10×3.3 | 3.30 |
| GC-A50130 | 1530 | 450 | 850 | 130 | 63 | 10×5.0 | 50 | 10×3.3 | 4.20 |
| GC-A55140 | 1890 | 420 | 700 | 140 | 67 | 12×5.0 | 55 | 12×3.3 | 5.20 |
| GC-A60150 | 2520 | 400 | 580 | 150 | 78 | 12×5.0 | 60 | 12×3.3 | 6.80 |
| GC-A70170 | 4320 | 300 | 450 | 170 | 95 | 14×5.5 | 70 | 14×3.8 | 10.5 |
| GC-A2585 | 260 | 800 | 1800 | 85 | 28 | 5×3 | 25 | 8×3 | 0.9 |
| GC-A3580 | 200 | 850 | 2000 | 80 | 37 | 5×3 | 35 | 5×23 | 0.9 |
