| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-20 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |

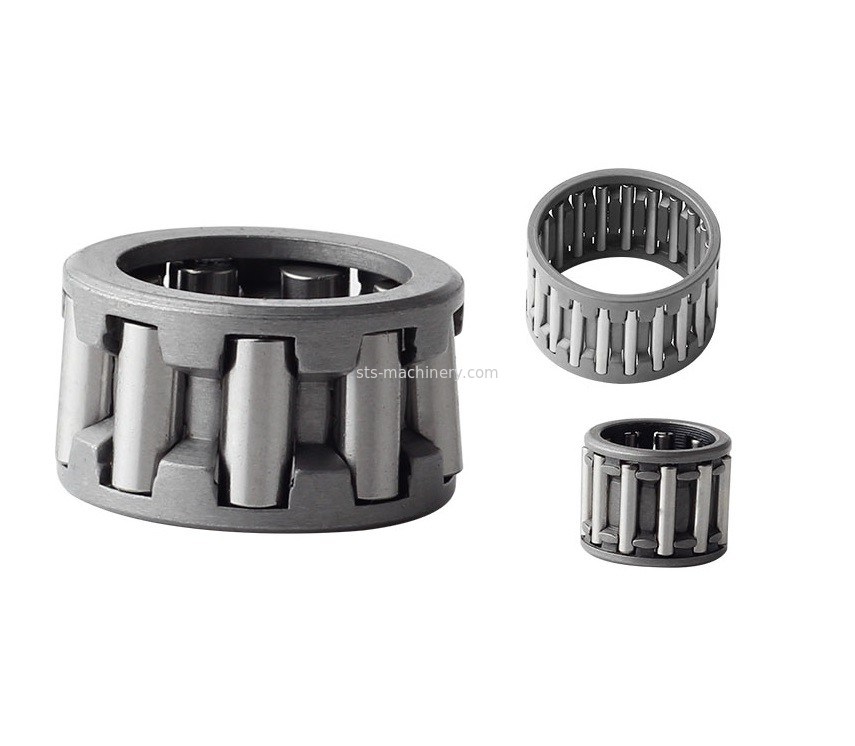

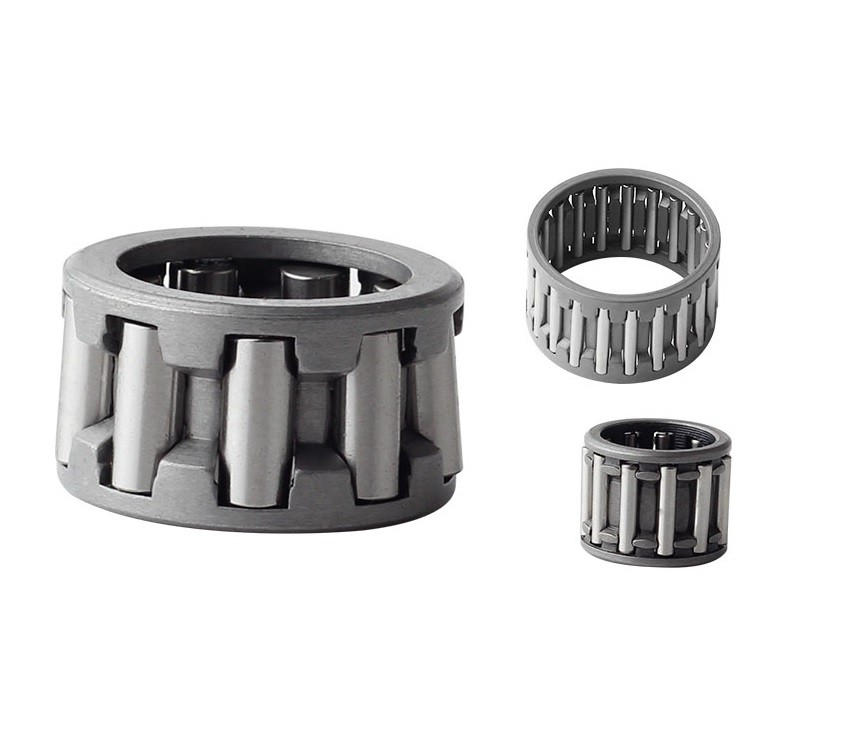

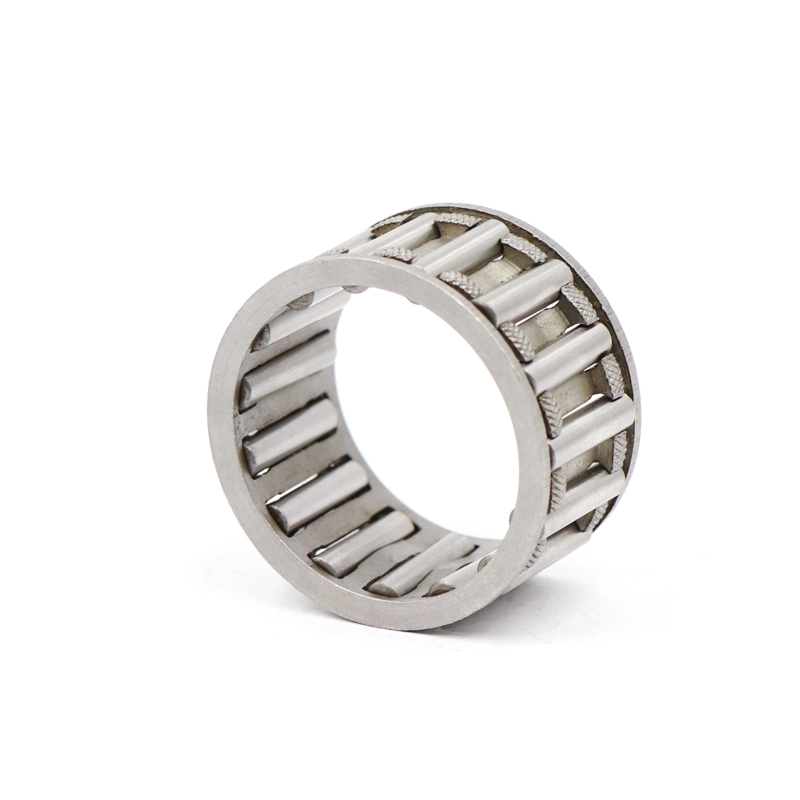

Needle roller and cage assemblies are self-contained, ready-to-mount bearings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space.
Needle roller and cage assemblies are single or double row units comprising cages and needle rollers.
We can offer K,KZK,KBK,KT..EG,KTV..EG,WJC and customized series.
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Limited Speed | ||||
| Fw | Ew | Bc | C | Co | rpm | ||
| WJC-060806 | C060806 | 9.525 | 12.700 | 9.525 | 2.193 | 2.990 | 38400 |
| WJC-060808 | 9.525 | 12.700 | 12.700 | 3.113 | 4.699 | 38400 | |
| WJC-081008 | C081008 | 12.700 | 15.875 | 12.700 | 3.631 | 6.194 | 28000 |
| WJC-081010 | 12.700 | 15.875 | 15.875 | 4.699 | 8.615 | 28000 | |
| WJC-091108 | C091108 | 14.288 | 17.462 | 12.700 | 3.952 | 7.191 | 24800 |
| C091110 | 14.288 | 17.462 | 15.875 | 4.080 | 7.330 | 24800 | |
| WJC-101208 | C101208 | 15.875 | 19.050 | 12.700 | 4.094 | 7.725 | 21600 |
| C101210 | 15.875 | 19.050 | 15.875 | 9.007 | 13.635 | 23520 | |
| WJ-101410 | 15.875 | 22.225 | 15.875 | 12.424 | 20.577 | 23520 | |
| WJ-101414 | 15.875 | 22.225 | 22.225 | 16.800 | 25.600 | 20000 | |
| C111308 | 17.462 | 20.638 | 12.700 | 5.200 | 9.400 | 20000 | |
| WJ-121616 | C121616 | 19.050 | 25.400 | 25.400 | 15.700 | 29.121 | 19200 |
| C131608 | 20.638 | 25.400 | 12.700 | 9.200 | 16.300 | 18000 | |
| WJ-131714 | C131714 | 20.638 | 26.988 | 22.225 | 14.596 | 27.127 | 17600 |
| WJ-141816 | C141816 | 22.225 | 28.575 | 25.400 | 17.124 | 33.962 | 16160 |
| C161908 | 25.400 | 30.163 | 12.700 | 11.300 | 20.200 | 15000 | |
| WJ-162112 | C162112 | 25.400 | 33.334 | 19.050 | 16.340 | 28.694 | 14400 |
| WJ-162116 | C162116 | 25.400 | 33.334 | 25.400 | 21.538 | 40.940 | 14400 |
| WJ-162120 | 25.400 | 33.334 | 31.750 | 26.308 | 53.044 | 14400 | |
| C182212 | 28.575 | 34.925 | 19.050 | 15.800 | 26.700 | 13000 | |
| WJ-182416 | C182416 | 28.575 | 38.100 | 25.400 | 24.813 | 44.856 | 12800 |
| WJ-182420 | C182420 | 28.575 | 38.100 | 31.750 | 30.545 | 58.740 | 12800 |
| C202412 | 31.750 | 38.100 | 19.050 | 17.900 | 30.200 | 12000 | |
| WJ-202612 | C202612 | 31.750 | 41.275 | 19.050 | 19.438 | 33.784 | 11200 |
| WJ-202616 | C202616 | 31.750 | 41.275 | 25.400 | 25.810 | 48.772 | 11200 |
| WJ-202620 | 31.750 | 41.275 | 31.750 | 31.791 | 63.724 | 11200 | |
| WJ-202624 | C202624 | 31.750 | 41.275 | 38.100 | 37.380 | 78.676 | 11200 |
| C202812 | 31.750 | 44.450 | 19.050 | 20.200 | 38.400 | 10400 | |
| WJ-222816 | 34.925 | 44.450 | 25.400 | 26.771 | 52.332 | 10400 | |
| WJ-222820 | C222820 | 34.925 | 44.450 | 31.750 | 32.966 | 68.352 | 10400 |
| WJ-243016 | C243016 | 38.100 | 47.625 | 25.400 | 27.412 | 55.892 | 9600 |
| WJ-243020 | C243020 | 38.100 | 47.625 | 31.750 | 34.069 | 73.336 | 9600 |
| WJ-243024 | C243024 | 38.100 | 47.625 | 38.400 | 40.228 | 90.424 | 9600 |
| WJ-243028 | 38.100 | 47.625 | 44.450 | 45.924 | 107.156 | 9600 | |
| WJ-283412 | C283412 | 44.450 | 53.975 | 19.050 | 22.891 | 45.924 | 7920 |
| WJ-283416 | C283416 | 44.450 | 53.975 | 25.400 | 30.438 | 66.572 | 7920 |
| WJ-283424 | C283424 | 44.450 | 53.925 | 38.100 | 44.144 | 107.156 | 7920 |
| WJ-323812 | 50.800 | 60.325 | 19.050 | 24.813 | 53.400 | 6880 | |
| WJ-323816 | C323816 | 50.800 | 60.325 | 25.400 | 33.001 | 76.896 | 6880 |
| WJ-323820 | 50.800 | 60.325 | 31.750 | 40.584 | 100.392 | 6880 | |
| WJ-323824 | C323824 | 50.800 | 60.325 | 38.100 | 47.704 | 123.888 | 6880 |
| WJ-333916 | C333916 | 52.388 | 61.912 | 25.400 | 33.500 | 80.100 | 6640 |
| WJ-344016 | C344016 | 53.975 | 63.500 | 25.400 | 29.904 | 71.556 | 6400 |
| WJ-344024 | C344024 | 53.975 | 63.500 | 38.100 | 46.280 | 121.040 | 6400 |
| WJ-354112 | 55.562 | 65.088 | 19.050 | 25.988 | 58.028 | 6240 | |
| WJ-354116 | 55.562 | 65.088 | 25.400 | 34.532 | 84.016 | 6240 | |
| WJ-364216 | C364216 | 57.150 | 66.675 | 25.400 | 31.364 | 74.760 | 6000 |
| C364220 | 57.150 | 66.675 | 31.750 | 38.200 | 92.500 | 6000 | |
| C364224 | 57.150 | 66.675 | 38.100 | 42.500 | 125.300 | 6000 | |
| WJ-384424 | C384424 | 60.325 | 69.850 | 38.100 | 48.060 | 131.720 | 5680 |
| WJ-404616 | C404616 | 63.500 | 73.025 | 25.400 | 32.574 | 81.168 | 5360 |
| C404620 | 63.500 | 73.025 | 25.400 | 40.200 | 100.400 | 5360 | |
| WJ-404624 | C404624 | 63.500 | 73.025 | 38.100 | 49.128 | 137.060 | 5360 |
| WJ-445016 | C445016 | 69.850 | 79.375 | 25.400 | 33.713 | 87.576 | 4880 |
| WJ-485416 | C485416 | 76.200 | 85.725 | 25.400 | 34.852 | 93.984 | 4480 |
| WJ-485424 | C485424 | 76.200 | 85.725 | 38.100 | 50.196 | 150.588 | 4480 |
| WJ-525816 | 82.550 | 92.070 | 25.400 | 35.956 | 100.036 | 4080 | |
| WJ-525824 | 82.550 | 92.070 | 38.100 | 51.976 | 160.912 | 4080 | |
| WJ-566216 | 88.900 | 98.425 | 25.400 | 37.024 | 106.444 | 3760 | |
| WJ-566416 | 88.900 | 101.600 | 25.400 | 46.636 | 117.124 | 3840 | |
| WJ-566424 | 88.900 | 101.600 | 38.100 | 66.928 | 186.900 | 3840 | |
| WJ-647216 | 101.600 | 114.300 | 25.400 | 48.772 | 129.584 | 3360 | |
| WJ-647224 | 101.600 | 114.300 | 38.100 | 70.132 | 207.192 | 3360 | |
| WJ-809624 | 127.000 | 152.400 | 38.100 | 124.600 | 287.292 | 2720 | |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
