Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified
roller/raceway profile prevents stress peaks to extend bearing service life.
We supply needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate
for a wide variety of operating conditions and applications.
Drawn Cup Needle Roller Bearings
Drawn cup needle roller bearings are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends
or a closed end.
They are characterized by a very low sectional height and high load carrying capacity. Drawn cup needle roller bearings
are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly,
but where a very compact and economical bearing arrangement is required.
Open End Drawn Cup Needle Roller Bearings
Metric:HK ,HK…RS,HK…2RS series
Inch:SCE,SCE…P,SCE…PP series
Closed End Drawn Cup Needle Roller Bearings
Metric:BK,BK…RS
Inch:BCE,BCH,BCE…P,BCH…P
Full Complement Drawn Cup Needle Roller Bearings
HN series
F series
B series

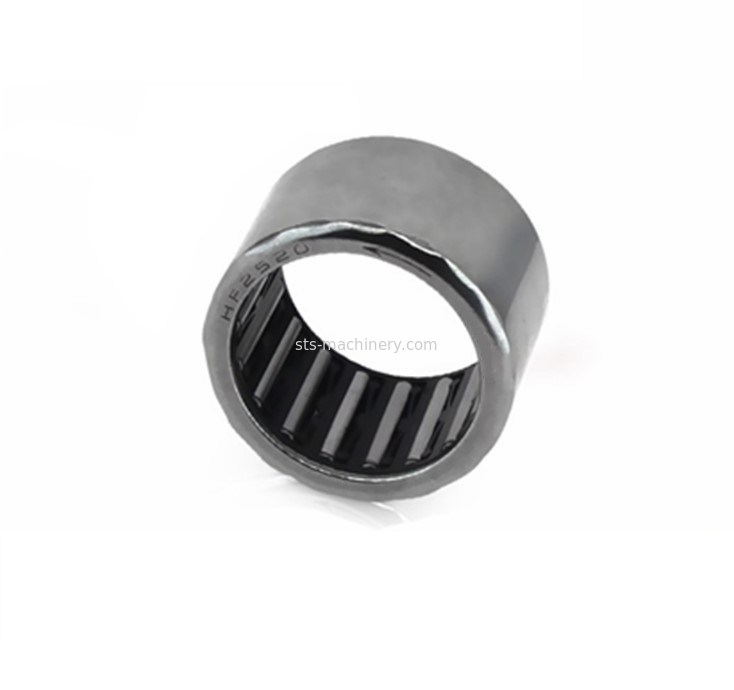

One-Way Clutch
HF series
HFL series
| Bearing No. | Boundary Dimensions (mm) | Driving torque | Limited Speed | Shell rotating | Basic Load Rating (KN) | Mass | |||||||
| with reed | metal reed | Fw | D | C | r min |
Nm | 2rpm | 3rpm | C | Co | kg | ||
| metric size | |||||||||||||
| HFL0308KF | 3 | 6.5 | 8 | 0.3 | 0.18 | 36000 | 6400 | 0.001 | |||||
| HFL0408KF | 4 | 8.0 | 8 | 0.3 | 0.34 | 27200 | 6400 | 0.002 | |||||
| HFL0408KFR | 4 | 8.0 | 8 | 0.3 | 0.10 | 27200 | 6400 | 0.002 | |||||
| HFL0606KFR | 6 | 10.0 | 6 | 0.3 | 0.50 | 18400 | 10400 | 0.001 | |||||
| HFL0615KF | HFL0615 | 6 | 10.0 | 15 | 0.3 | 1.76 | 18400 | 10400 | 0.004 | ||||
| HFL0615KFR | HFL0615R | 6 | 10.0 | 15 | 0.3 | 0.50 | 18400 | 10400 | 0.004 | ||||
| HFL0806KFR | 8 | 12.0 | 6 | 0.3 | 0.70 | 13600 | 9600 | 0.002 | |||||
| HFL0822KF | HFL0822 | FCBL-8-K | 8 | 12.0 | 22 | 0.3 | 3.15 | 13600 | 9600 | 2.80 | 3.28 | 0.007 | |
| HFL0822KFR | HFL0822R | 8 | 12.0 | 22 | 0.3 | 1.00 | 13600 | 9600 | 2.80 | 3.28 | 0.007 | ||
| FCB-8 | 8 | 14.0 | 20 | 4.00 | 0.000 | ||||||||
| HFL1022KF | HFL1022 | 10 | 14.0 | 22 | 0.3 | 5.30 | 11200 | 8800 | 3.00 | 3.72 | 0.008 | ||
| FCB-10 | 10 | 16.0 | 20 | 5.70 | 0.000 | ||||||||
| HFL1226KF | HFL1226 | FCB-12 | 12 | 18.0 | 26 | 0.3 | 12.20 | 8800 | 6400 | 4.64 | 5.36 | 0.018 | |
| HFL1426KF | HFL1426 | 14 | 20.0 | 26 | 0.3 | 17.30 | 7600 | 6400 | 5.04 | 6.24 | 0.020 | ||
| HFL1626KF | HFL1626 | FCB-16 | 16 | 22.0 | 26 | 0.3 | 20.50 | 6800 | 6000 | 5.52 | 7.20 | 0.022 | |
| HFL1826KF | HFL1826 | 18 | 24.0 | 26 | 0.3 | 24.10 | 6000 | 6000 | 5.92 | 8.16 | 0.025 | ||
| HFL2026KF | HFL2026 | FCB-20 | 20 | 26.0 | 26 | 0.3 | 28.50 | 5600 | 5200 | 6.32 | 9.12 | 0.027 | |
| HFL2530KF | HFL2530 | FCB-25 | 25 | 32.0 | 30 | 0.3 | 66.00 | 4400 | 4400 | 7.84 | 11.20 | 0.044 | |
| HFL3030KF | HFL3030 | FCB-30 | 30 | 37.0 | 30 | 0.3 | 90.00 | 3600 | 3600 | 8.64 | 13.52 | 0.051 | |
| HFL3530KF | HFL3530 | 35 | 42.0 | 30 | 0.3 | 121.00 | 3120 | 3120 | 9.12 | 15.04 | 0.058 | ||
| Inch size | |||||||||||||
| HFLZ061014KF | RCB061014 | HFLZ061014KF | RC 061014FS | 9.525 | 15.875 | 22.225 | 5.1 | ||||||
| HFLZ081214KF | RCB081214 | HFLZ081214KF | RC081214FS | 12.700 | 19.050 | 22.225 | 8.3 | ||||||
| HFLZ101416KF | RCB101416 | HFLZ101416KF | RC101416FS | 15.875 | 22.225 | 25.400 | 16.1 | ||||||
| RCB121616 | RC121616FS | 19.050 | 25.400 | 25.400 | 22.1 | ||||||||
| RCB162117 | RC162117FS | 25.400 | 33.338 | 26.990 | 46.5 | ||||||||
