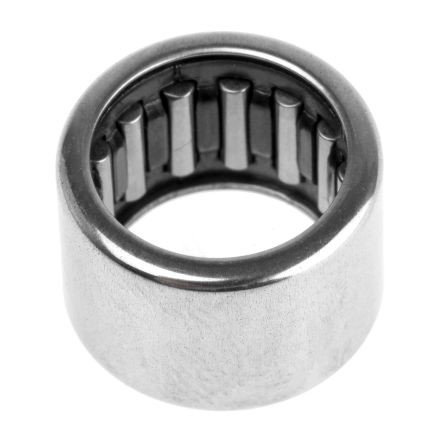

B Series Full Complement Drawn Cup Needle Roller Bearings(B1612 B1616 B186 B188 B1810 B1812 B1816 B1910 B1916 B208 )

Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified
roller/raceway profile prevents stress peaks to extend bearing service life.

We supply needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate
for a wide variety of operating conditions and applications.

• Drawn cup needle roller bearings
• Needle roller and cage assemblies
• Alignment needle roller bearings
• Needle roller bearings with machined rings
• Needle roller bearing components
• Needle roller thrust bearings
• Cam followers

Product Parameters

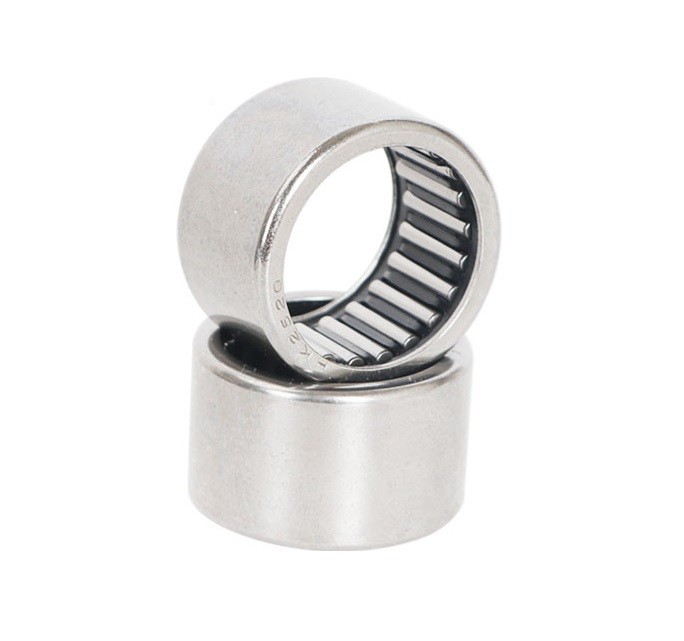

Drawn Cup Needle Roller Bearings
Drawn cup needle roller bearings are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends
or a closed end.
They are characterized by a very low sectional height and high load carrying capacity. Drawn cup needle roller bearings
are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly,
but where a very compact and economical bearing arrangement is required.

Open End Drawn Cup Needle Roller Bearings
Metric:HK ,HK…RS,HK…2RS series
Inch:SCE,SCE…P,SCE…PP series

Closed End Drawn Cup Needle Roller Bearings
Metric:BK,BK…RS
Inch:BCE,BCH,BCE…P,BCH…P

Full Complement Drawn Cup Needle Roller Bearings
HN series
F series
B series

One-Way Clutch
HF series
HFL series

Part Number	Dimension (mm)
	Fw	D	C
B45	6.35	11.113	7.92
B46	6.35	11.113	9.53
B47	6.35	11.113	11.13
B55	7.938	12.7	7.92
B56	7.938	12.7	9.53
B57	7.938	12.7	11.13
B59	7.938	12.7	14.27
B65	9.525	14.288	7.92
B66	9.525	14.288	9.53
B67	9.525	14.288	11.13
B68	9.525	14.288	12.7
B69	9.525	14.288	14.27
B610	9.525	14.288	15.88
B76	11.113	15.875	9.53
B77	11.113	15.875	11.13
B78	11.113	15.875	12.7
B710	11.113	15.875	15.88
B85	12.7	17.463	7.92
B86	12.7	17.463	9.53
B87	12.7	17.463	11.13
B88	12.7	17.463	12.7
B810	12.7	17.463	15.88
B812	12.7	17.463	19.05
B95	14.288	19.05	7.92
B96	14.288	19.05	9.53
B97	14.288	19.05	11.13
B98	14.288	19.05	12.7
B910	14.288	19.05	15.88
B912	14.288	19.05	19.05
B105	15.875	20.638	7.92
B107	15.875	20.638	11.13
B108	15.875	20.638	12.7
B1010	15.875	20.638	15.88
B1012	15.875	20.638	19.05
B116	17.463	22.212	9.53
B118	17.463	22.212	12.7
B1110	17.463	22.212	15.88
B1112	17.463	22.212	19.05
B126	19.05	25.4	9.53
B128	19.05	25.4	12.7
B1210	19.05	25.4	15.88
B1212	19.05	25.4	19.05
B136	20.638	26.988	9.53
B138	20.638	26.988	12.7
B1314	20.638	26.988	22.23
B1316	20.638	26.988	25.4
B1320	20.638	26.988	31.75
B146	22.225	28.575	9.53
B148	22.225	28.575	12.7
B1412	22.225	28.575	19.05
B1416	22.225	28.575	25.4
B1418	22.225	28.575	28.58
B158	23.813	30.163	12.7
B1516	23.813	30.163	25.4
B166	25.4	31.75	9.53
B167	25.4	31.75	11.13
B168	25.4	31.75	12.7
B1610	25.4	31.75	15.88
B1612	25.4	31.75	19.05
B1616	25.4	31.75	25.4
B186	28.575	34.925	9.53
B188	28.575	34.925	12.7
B1810	28.575	34.925	15.88
B1812	28.575	34.925	19.05
B1816	28.575	34.925	25.4
B1910	30.163	38.1	15.88
B1916	30.163	38.1	25.4
B208	31.75	38.1	12.7
B2010	31.75	38.1	15.88
B2012	31.75	38.1	19.05
B2016	31.75	38.1	25.4
B2020	31.75	38.1	31.75
B218	33.338	41.275	12.7
B2110	33.338	41.275	15.88
B2120	33.338	41.275	31.75
B228	34.925	41.275	12.7
B2212	34.925	41.275	19.05
B2216	34.925	41.275	25.4
B2220	34.925	41.275	31.75
B248	38.1	47.625	12.7
B2410	38.1	47.625	15.88
B2412	38.1	47.625	19.05
B2414	38.1	47.625	22.23
B2416	38.1	47.625	25.4
B2420	38.1	47.625	31.75
B268	41.275	50.8	12.7
B2610	41.275	50.8	15.88
B2616	41.275	50.8	25.4
B2620	41.275	50.8	31.75
B2812	44.45	53.975	19.05
B2816	44.45	53.975	25.4
B2820	44.45	53.975	31.75
B2824	44.45	53.975	38.1
B308	47.625	57.15	12.7
B3010	47.625	57.15	15.888
B3012	47.625	57.15	19.05
B3016	47.625	57.15	25.4
B328	50.8	60.325	12.7
B3210	50.8	60.325	15.88
B3214	50.8	60.325	22.23
B3216	50.8	60.325	25.4
B3220	50.8	60.325	31.75
B3224	50.8	60.325	38.1
B3228	50.8	60.325	44.45
B348	53.975	63.5	12.7
B3412	53.975	63.5	19.05
B3416	53.975	63.5	25.4
B3420	53.975	63.5	31.75
B3424	53.975	63.5	38.1
B3612	57.15	66.675	19.05
B3616	57.15	66.675	25.4
B3620	57.15	66.675	31.75
B3624	57.15	66.675	38.1
B4216	66.675	76.2	25.4
B4410	69.85	79.375	15.88
B4412	69.85	79.375	19.05
B4416	69.85	79.375	25.4
B4420	69.85	79.375	31.75
B5612	88.9	101.6	19.05
B8812	139.7	152.4	19.05
