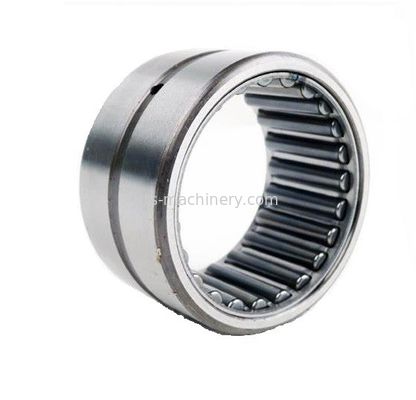

HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 )

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified
roller/raceway profile prevents stress peaks to extend bearing service life.

We supply needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate
for a wide variety of operating conditions and applications.

HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
Product Parameters

Drawn Cup Needle Roller Bearings
Drawn cup needle roller bearings are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends
or a closed end.
They are characterized by a very low sectional height and high load carrying capacity. Drawn cup needle roller bearings
are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly,
but where a very compact and economical bearing arrangement is required.

Open End Drawn Cup Needle Roller Bearings
Metric:HK ,HK…RS,HK…2RS series
Inch:SCE,SCE…P,SCE…PP series

Closed End Drawn Cup Needle Roller Bearings
Metric:BK,BK…RS
Inch:BCE,BCH,BCE…P,BCH…P

Full Complement Drawn Cup Needle Roller Bearings
HN series
F series
B series


One-Way Clutch
HF series
HFL series

HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)
Part Number Dimension (mm)
Fw D C
HJ101812 15.875 28.575 19.05
HJ122012 19.050 31.750 19.05
HJ122016 19.050 31.750 25.40
HJ142212 22.225 34.925 19.05
HJ142216 22.225 34.925 25.40
HJ162412 25.400 38.100 19.05
HJ162416 25.400 38.100 25.40
HJ182616 28.575 41.275 25.40
HJ182620 28.575 41.275 31.75
HJ202816 31.750 44.450 25.40
HJ202820 31.750 44.450 31.75
HJ223016 34.925 47.625 25.40
HJ223020 34.925 47.625 31.75
HJ243316 38.100 52.388 25.40
HJ243320 38.100 52.388 31.75
HJ263516 41.275 55.563 25.40
HJ263520 41.275 55.563 31.75
HJ283716 44.450 58.738 25.40
HJ283720 44.450 58.738 31.75
HJ303920 47.625 61.913 31.75
HJ324116 50.800 65.088 25.40
HJ324120 50.800 65.088 31.75
HJ364824 57.150 76.200 38.10
HJ364828 57.150 76.200 44.45
HJ405224 63.500 82.550 38.10
HJ405228 63.500 82.550 44.45
HJ 445616 69.850 88.900 25.40
HJ445624 69.850 88.900 38.10
HJ445628 69.850 88.900 44.45
HJ486024 76.200 95.250 38.10
HJ486028 76.200 95.250 44.45
HJ526828 82.550 107.950 44.45
HJ 526832 82.550 107.950 50.80
HJ567232 88.900 114.300 50.80
HJ607632 95.250 120.650 50.80
HJ648032 101.600 127.000 50.80
HJ688432 107.950 133.350 50.80
HJ729636 114.300 152.400 57.15
HJ729640 114.300 152.400 63.50
HJ8010432 127.000 165.100 50.80
HJ8010436 127.000 165.100 57.15
HJ8010440 127.000 165.100 63.50
HJ8811240 139.700 177.800 63.50
HJ8811248 139.700 177.800 76.20
HJ9211648 146.050 184.150 76.20
HJ9612040 152.400 190.500 63.50
HJ9612048 152.400 190.500 76.20
HJ10412840 165.100 203.200 63.50
HJ10412848 165.100 203.200 76.20
HJ11614648 184.150 231.775 76.20
HJ12415448 196.850 244.475 76.20
HJ13216248 209.550 257.175 76.20
HJ14017048 222.250 269.875 76.20
HJ14817848 234.950 282.575 76.20
Packaging & Shipping

HJ Inch Series Machined Heavy Duty Needle Bearings(HJ101812 HJ122012 HJ122016 HJ142212 HJ142216 HJ162412 HJ162416 HJ182616 HJ182620)

Our Advantages

1. We have over 10 years' experience.

2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.

3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.

4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.

5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
