NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

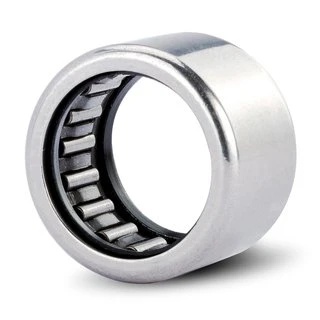

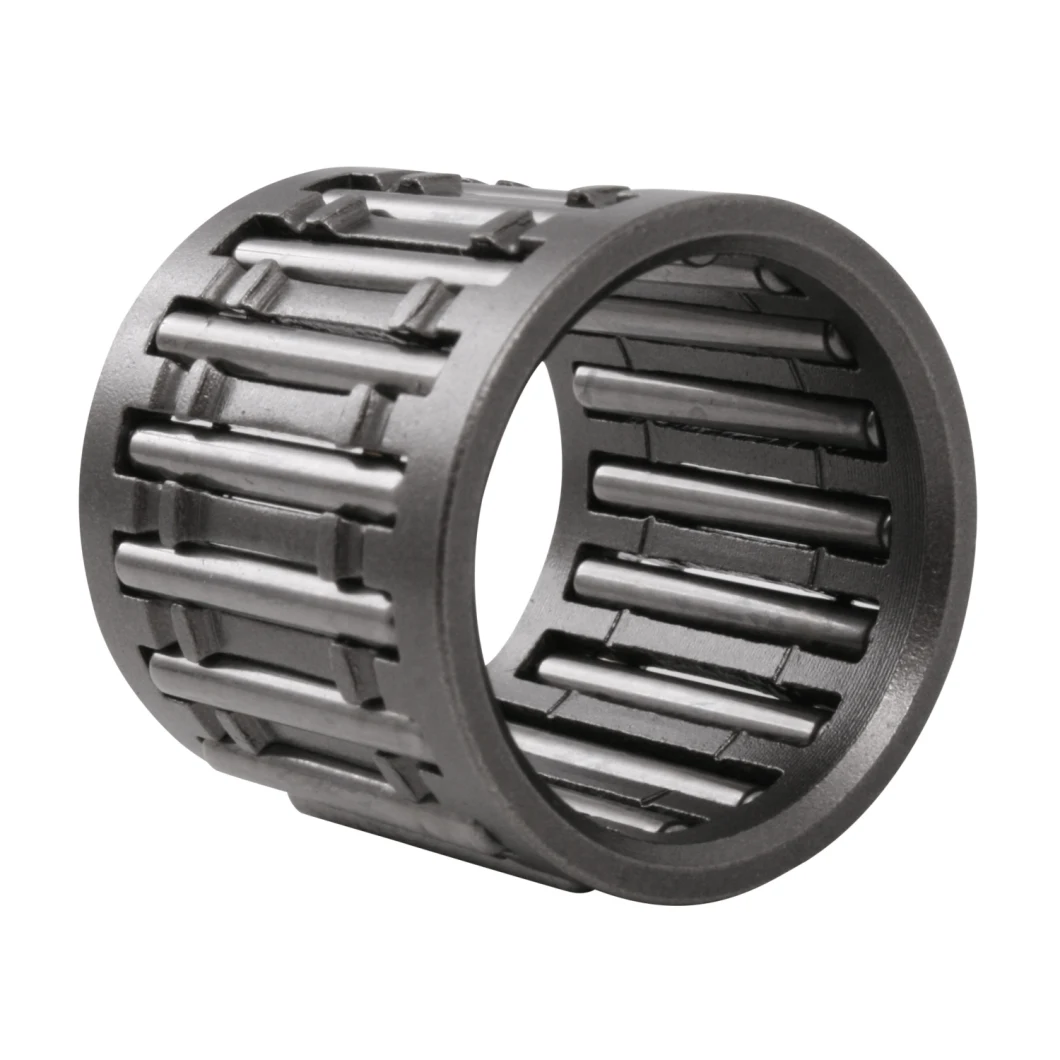

Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified
roller/raceway profile prevents stress peaks to extend bearing service life.

We supply needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate
for a wide variety of operating conditions and applications.

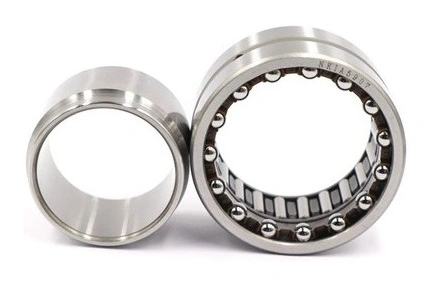

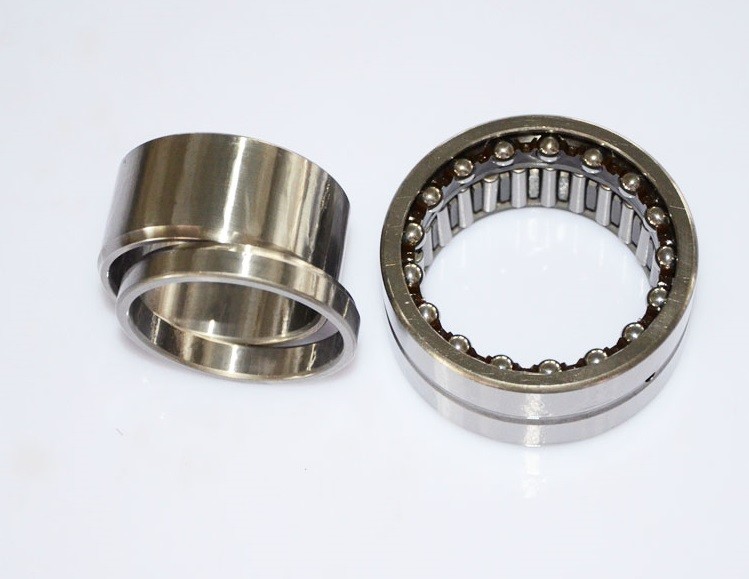

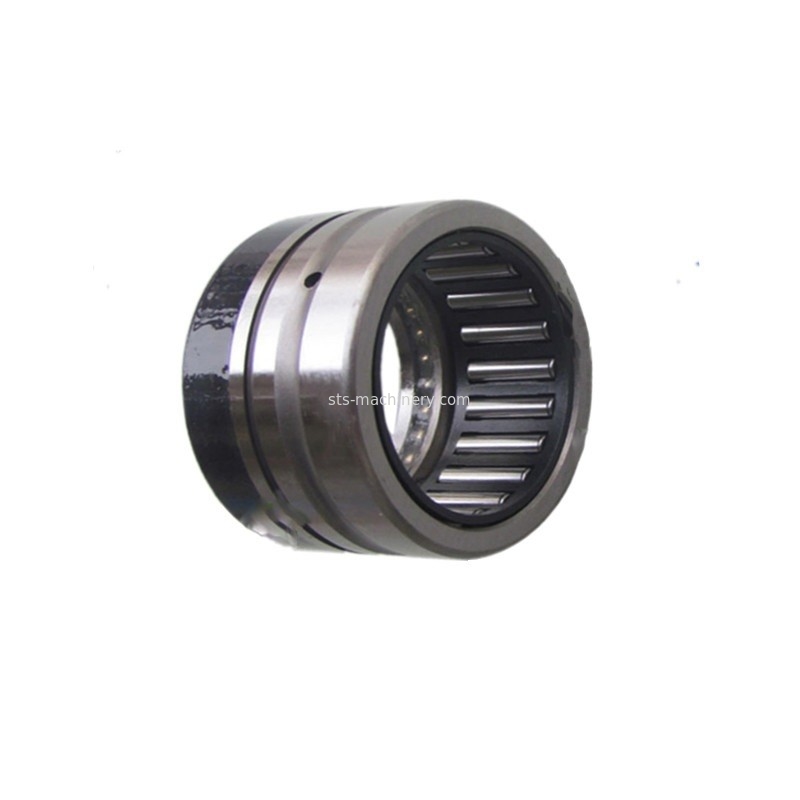

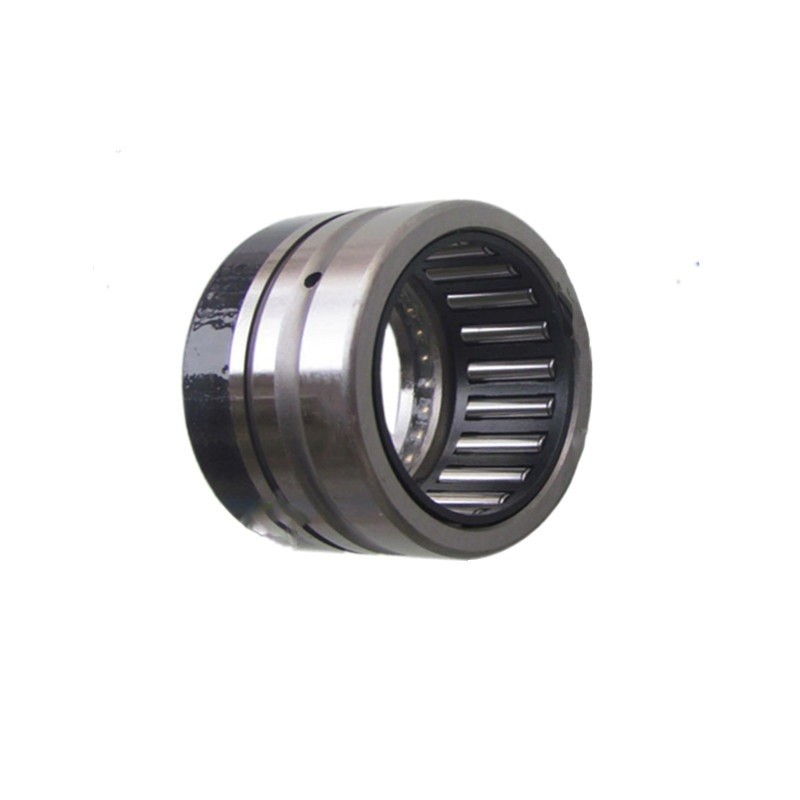

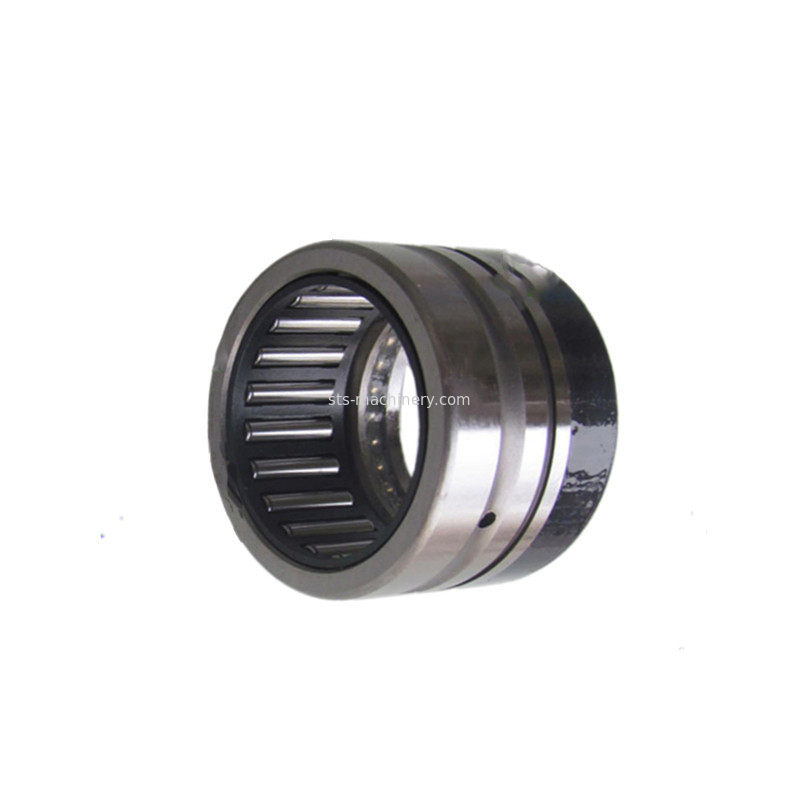

NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
Product Parameters

Combined Type Needle Roller Bearings are combinations of a radial bearing and a thrust bearing. Caged needle roller bearings are used as radial bearings and thrust ball bearings or thrust roller bearings are used as thrust bearings. They are compact and very economical, and can be subjected to radial loads and axial loads simultaneously.

They are widely used for machine tools, textile machinery, and industrial machinery.


Combined needle roller bearings consist of a radial needle roller bearing combined with a thrust bearing and are consequently able to take up both radial and axial loads. Combined needle roller bearings provide the means to produce locating bearing arrangements in a minimum of radial space. They are particularly useful where the axial loads are too heavy, speeds too high, or lubrication inadequate for simple thrust washers to be suitable, and other types of locating bearing take up too much room.

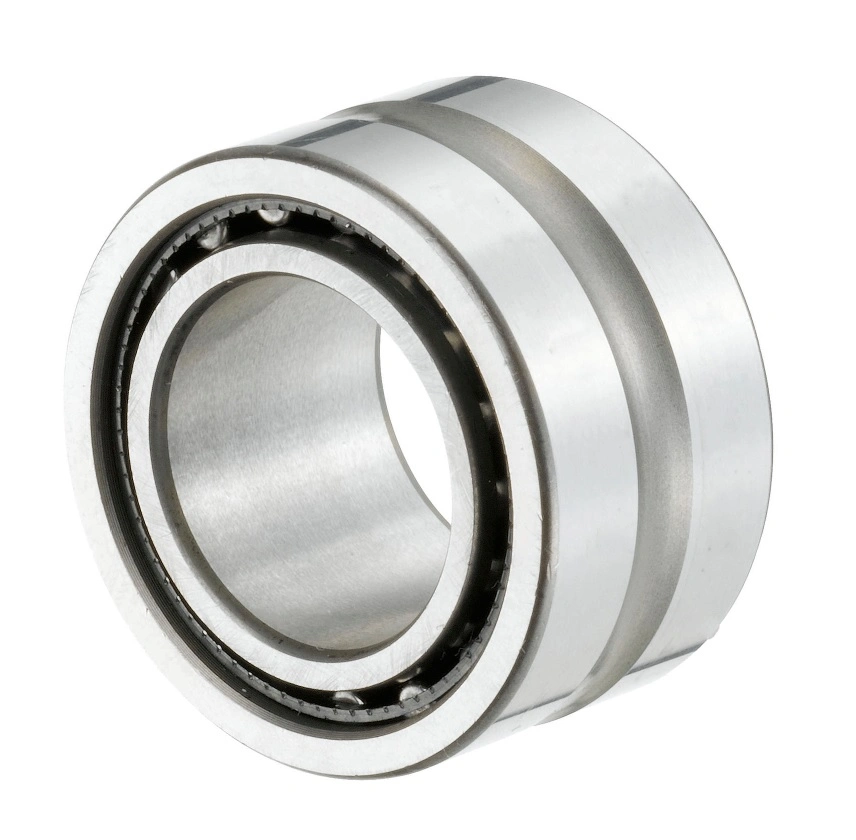

Combined with thrust ball bearing
Combined with thrust roller bearing

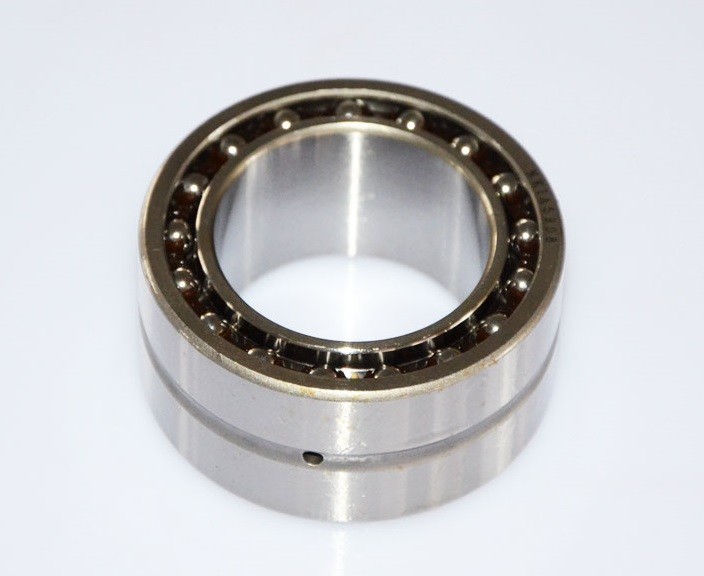

Combined with angular contact ball bearing
Combined with three-point contact ball bearing

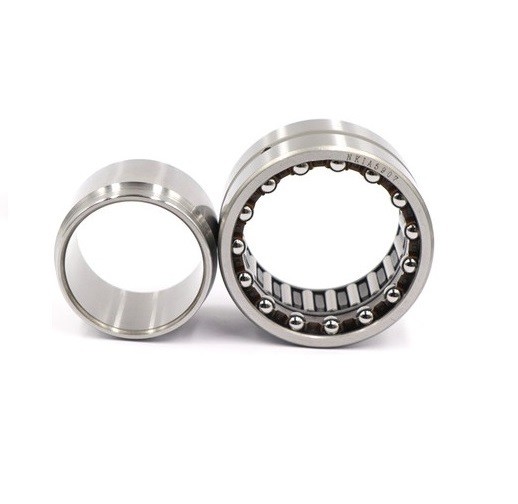

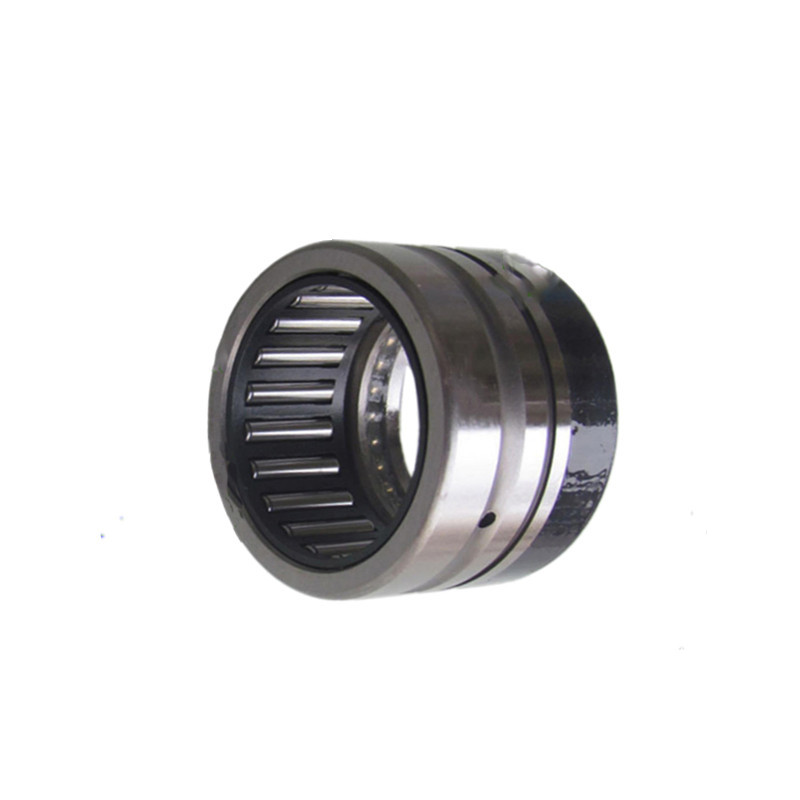

NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
NKIB Series Combined Needle Roller Bearings(NKIB5901 NKIB5902 NKIB5903 NKIB5904 NKIB59/22 NKIB5905 NKIB5906)
Part Number Dimension(mm)
d F D B C
NKIB5901 12 16 24 17.5 16
NKIB5902 15 20 28 20 18
NKIB5903 17 22 30 20 18
NKIB5904 20 25 37 25 23
NKIB59/22 22 28 39 25 23
NKIB5905 25 30 42 25 23
NKIB5906 30 35 47 25 23
NKIB5907 35 42 55 30 27
NKIB5908 40 48 62 34 30
NKIB5909 45 52 68 34 30
NKIB5910 50 58 72 34 30
NKIB5911 55 63 80 38 34
NKIB5912 60 68 85 38 34
NKIB5913 65 72 90 38 34
NKIB5914 70 80 100 45 40
