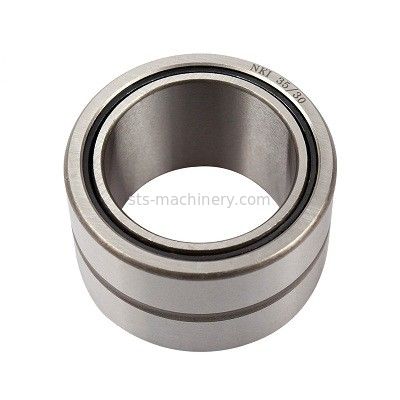

NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 )

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified
roller/raceway profile prevents stress peaks to extend bearing service life.

We supply needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate
for a wide variety of operating conditions and applications.

NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
Product Parameters

Needle roller bearings are rolling bearings with a low radial section height and high load carrying capacity, which are used as non-locating bearings and are part of the group of radial needle roller bearings.

These bearings comprise machined outer rings, needle roller and cage assemblies and removable inner rings, i.e. they can be supplied with or without an inner ring in accordance with the application .

NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)
Part Number Dimension(mm)
d F D B
NKI5/12TV 5 8 15 12
NKI5/12TN 5 8 15 12
NKI5/16TV 5 8 15 16
NKI5/16TN 5 8 15 16
NKI6/12TV 6 9 16 12
NKI6/12TN 6 9 16 12
NKI6/16TV 6 9 16 16
NKI6/16TN 6 9 16 16
NKI7/12TV 7 10 17 12
NKI7/12TN 7 10 17 12
NKI7/16TV 7 10 17 16
NKI7/16TN 7 10 17 16
NKI9/12 9 12 19 12
NKI9/16 9 12 19 16
NKI10/16 10 14 22 16
NKI10/20 10 14 22 20
NKI12/16 12 16 24 16
NKI12/20 12 16 24 20
NKI15/16 15 19 27 16
NKI15/20 15 19 27 20
NKI17/16 17 21 29 16
NKI17/20 17 21 29 20
NKI20/16 20 24 32 16
NKI20/20 20 24 32 20
NKI22/16 22 26 34 16
NKI22/20 22 26 34 20
NKI25/20 25 29 38 20
NKI25/30 25 29 38 30
NKI28/20 28 32 42 20
NKI28/30 28 32 42 30
NKI30/20 30 35 45 20
NKI30/30 30 35 45 30
NKI32/20 32 37 47 20
NKI32/30 32 37 47 30
NKI35/20 35 40 50 20
NKI35/30 35 40 50 30
NKI38/20 38 43 53 20
NKI38/30 38 43 53 30
NKI40/20 40 45 55 20
NKI40/30 40 45 55 30
NKI42/20 42 47 57 20
NKI42/30 42 47 57 30
NKI45/25 45 50 62 25
NKI45/35 45 50 62 35
NKI50/25 50 55 68 25
NKI50/35 50 55 68 35
NKI55/25 55 60 72 25
NKI55/35 55 60 72 35
NKI60/25 60 68 82 25
NKI60/35 60 68 82 35
NKI65/25 65 73 90 25
NKI65/35 65 73 90 35
NKI70/25 70 80 95 25
NKI70/35 70 80 95 35
NKI75/25 75 85 105 25
NKI75/35 75 85 105 35
NKI80/25 80 90 110 25
NKI80/35 80 90 110 35
NKI85/26 85 95 115 26
NKI85/36 85 95 115 36
NKI90/26 90 100 120 26
NKI90/36 90 100 120 36
NKI95/26 95 105 125 26
NKI95/36 95 105 125 36
NKI100/30 100 110 130 30
NKI100/40 100 110 130 40
Packaging & Shipping

NKI Machined Needle Roller Bearings with Inner Ring(NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16)



Our Advantages

1. We have over 10 years' experience.

2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.

3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.

4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.

5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
