SCE Inch Series Drawn Cup Needle Roller Bearings SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified
roller/raceway profile prevents stress peaks to extend bearing service life.

We supply needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate
for a wide variety of operating conditions and applications.

SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
Product Parameters

Drawn Cup Needle Roller Bearings

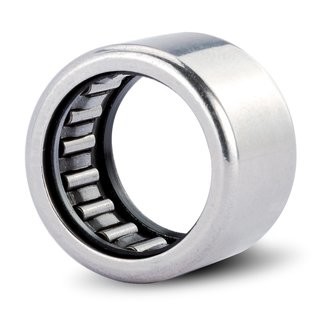

Drawn cup needle roller bearings are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends
or a closed end.
They are characterized by a very low sectional height and high load carrying capacity. Drawn cup needle roller bearings
are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly,
but where a very compact and economical bearing arrangement is required.

Open End Drawn Cup Needle Roller Bearings
Metric:HK ,HK…RS,HK…2RS series
Inch:SCE,SCE…P,SCE…PP series

Closed End Drawn Cup Needle Roller Bearings
Metric:BK,BK…RS
Inch:BCE,BCH,BCE…P,BCH…P

Full Complement Drawn Cup Needle Roller Bearings
HN series
F series
B series


One-Way Clutch
HF series
HFL series



SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)
Part Number Dimension(mm)
Fw D C
SCE24TN 3.175 6.35 6.35
SCE2-1/2-4 3.969 7.15 6.35
SCE2-1/2-4TN 3.969 7.15 6.35
SCE34TN 4.762 8.731 6.35
SCE36TN 4.762 8.731 9.53
SCE36 4.762 8.731 9.53
SCE44 6.35 11.12 6.35
SCE45 6.35 11.112 7.938
SCE47 6.35 11.112 11.112
SCE55 7.938 12.7 7.938
SCE57 7.938 12.7 11.112
SCE59 7.938 12.7 14.29
SCE65 9.525 14.288 7.94
SCE66 9.525 14.288 9.52
SCE67 9.525 14.288 11.112
SCE68 9.525 14.288 12.7
SCE610 9.525 14.288 15.88
SCE78 11.112 15.875 12.7
SCE710 11.112 15.875 15.875
SCE85 12.7 17.462 7.94
SCE86 12.7 17.462 9.52
SCE87 12.7 17.462 11.11
SCE88 12.7 17.462 12.7
SCE810 12.7 17.462 15.88
SCE812 12.7 17.462 19.05
SCE95 14.288 19.05 7.938
SCE96 14.288 19.05 9.52
SCE97 14.288 19.05 11.13
SCE98 14.288 19.05 12.7
SCE910 14.288 19.05 15.88
SCE912 14.288 19.05 19.05
SCE105 15.875 20.638 7.94
SCE107 15.875 20.638 11.112
SCE107-1/2 15.875 20.638 11.91
SCE108 15.875 20.638 12.7
SCE1010 15.875 20.638 15.875
SCE1012 15.875 20.638 19.05
SCE116 17.462 22.225 9.525
SCE118 17.462 22.225 12.7
SCE1110 17.462 22.225 15.875
SCE1112 17.462 22.225 19.05
SCE126 19.05 25.4 9.525
SCE128 19.05 25.4 12.7
SCE1210 19.05 25.4 15.875
SCE1212 19.05 25.4 19.05
SCE136 20.638 26.988 9.525
SCE138 20.638 26.988 12.7
SCE1312 20.638 26.988 19.05
SCE1314 20.638 26.988 22.225
SCE146 22.225 28.575 9.525
SCE148 22.225 28.575 12.7
SCE1412 22.225 28.575 19.05
SCE1416 22.225 28.575 25.4
SCE1516 23.812 30.162 25.4
SCE166 25.4 31.75 9.525
SCE168 25.4 31.75 12.7
SCE1612 25.4 31.75 19.05
SCE1616 25.4 31.75 25.4
SCE186 28.575 34.925 9.525
SCE188 28.575 34.925 12.7
SCE1812 28.575 34.925 19.05
SCE1816 28.575 34.925 25.4
SCE1916 30.162 38.1 25.4
SCE208 31.75 38.1 12.7
SCE2010 31.75 38.1 15.875
SCE2012 31.75 38.1 19.05
SCE2016 31.75 38.1 25.4
SCE2020 31.75 38.1 31.75
SCE2110 33.338 41.725 15.875
SCE228 34.925 41.275 12.7
SCE2212 34.925 41.275 19.05
SCE2216 34.925 41.275 25.4
SCE2220 34.925 41.275 31.75
SCE248 38.1 47.625 12.7
SCE2410 38.1 47.625 15.875
SCE2412 38.1 47.625 19.05
SCE2414 38.1 47.625 22.225
SCE2416 38.1 47.625 25.4
SCE2420 38.1 47.625 31.75
SCE2610 41.275 50.8 15.875
SCE2620 41.275 50.8 31.75
SCE2812 44.45 53.975 19.05
SCE2816 44.45 53.975 25.4
SCE2820 44.45 53.975 31.75
SCE2824 44.45 53.975 38.1
SCE328 50.8 60.325 12.7
SCE3210 50.8 60.325 15.875
SCE3216 50.8 60.325 25.4
SCE3220 50.8 60.325 31.75
SCE348 53.975 63.5 12.7
SCE3410 53.975 63.5 15.875
SCE3416 53.975 63.5 25.4
SCE3612 57.15 66.675 19.05
SCE3616 57.15 66.675 25.4
SCE4412 69.85 79.375 19.05
SCE5612 88.9 101.6 19.05
Packaging & Shipping

SCE Inch Series Drawn Cup Needle Roller Bearings(SCE88 SCE810 SCE812 SCE95 SCE96 SCE97 SCE98 SCE910 SCE912 SCE105 SCE107)

Our Advantages



1. We have over 10 years' experience.

2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.

3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.

4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.

5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
