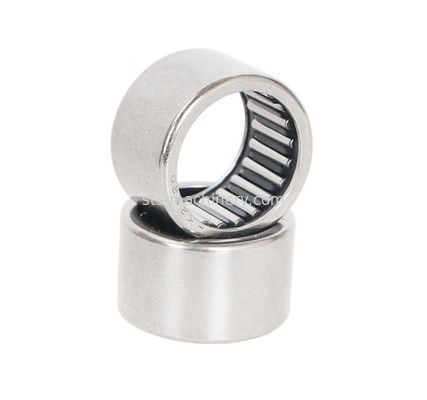

HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 )

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified
roller/raceway profile prevents stress peaks to extend bearing service life.

We supply needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate
for a wide variety of operating conditions and applications.

HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)
HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)
HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)
HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)
HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)
HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)
Product Parameters

Drawn Cup Needle Roller Bearings
Drawn cup needle roller bearings are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends
or a closed end.
They are characterized by a very low sectional height and high load carrying capacity. Drawn cup needle roller bearings
are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly,
but where a very compact and economical bearing arrangement is required.

Open End Drawn Cup Needle Roller Bearings
Metric:HK ,HK…RS,HK…2RS series
Inch:SCE,SCE…P,SCE…PP series

Closed End Drawn Cup Needle Roller Bearings
Metric:BK,BK…RS
Inch:BCE,BCH,BCE…P,BCH…P

Full Complement Drawn Cup Needle Roller Bearings
HN series
F series
B series


One-Way Clutch
HF series
HFL series

HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)
HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)



Part Number Dimension(mm)
Fw D C
HMK0810 8 15 10
HMK0815 8 15 15
HMK0820 8 15 20
HMK0912 9 16 12
HMK0916 9 16 16
HMK1010 10 17 10
HMK1012 10 17 12
HMK1015 10 17 15
HMK1020 10 17 20
HMK1212 12 19 12
HMK1215 12 19 15
HMK1220 12 19 20
HMK1225 12 19 25
HMK1416 14 22 16
HMK1420 14 22 20
HMK1510 15 22 10
HMK1512 15 22 12
HMK1515 15 22 15
HMK1520 15 22 20
HMK1525 15 22 25
HMK1616 16 24 16
HMK1620 16 24 20
HMK1715 17 24 15
HMK1720 17 24 20
HMK1725 17 24 25
HMK1813 18 25 13
HMK1815 18 25 15
HMK1817 18 25 17
HMK1819 18 25 19
HMK1820 18 25 20
HMK1825 18 25 25
HMK1916 19 27 16
HMK1920 19 27 20
HMK2015 20 27 15
HMK2020 20 27 20
HMK2025 20 27 25
HMK2030 20 27 30
HMK2116 21 29 16
HMK2120 21 29 20
HMK2210 22 29 10
HMK2215 22 29 15
HMK2220 22 29 20
HMK2225 22 29 25
HMK2230 22 29 30
HMK2420 24 31 20
HMK2428 24 31 28
HMK2510 25 33 10
HMK2515 25 33 15
HMK2520 25 33 20
HMK2525 25 33 25
HMK2530 25 33 30
HMK2616 26 34 16
HMK2620 26 34 20
HMK2820 28 37 20
HMK2830 28 37 30
HMK2920 29 38 20
HMK2930 29 38 30
HMK3013 30 40 13
HMK3015 30 40 15
HMK3020 30 40 20
HMK3025 30 40 25
HMK3030 30 40 30
HMK3220 32 42 20
HMK3230 32 42 30
HMK3512 35 45 12
HMK3515 35 45 15
HMK3520 35 45 20
HMK3525 35 45 25
HMK3530 35 45 30
HMK3720 37 47 20
HMK3730 37 47 30
HMK3815 38 48 15
HMK3820 38 48 20
HMK3825 38 48 25
HMK3830 38 48 30
HMK3845 38 48 45
HMK4015 40 50 15
HMK4020 40 50 20
HMK4025 40 50 25
HMK4030 40 50 30
HMK4040 40 50 40
HMK4520 45 55 20
HMK4525 45 55 25
HMK4530 45 55 30
HMK4540 45 55 40
HMK5012 50 62 12
HMK5015 50 62 15
HMK5020 50 62 20
HMK5025 50 62 25
HMK5030 50 62 30
HMK5040 50 62 40
HMK5045 50 62 45
Packaging & Shipping

HMK Heavy Duty Drawn Cup Needle Roller Bearings(HMK1715 HMK1720 HMK1725 HMK1813 HMK1815 HMK1817 HMK1819 HMK1820 HMK1825 HMK1916 HMK1920 HMK2015)

Our Advantages

1. We have over 10 years' experience.

2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.

3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.

4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.

5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
