| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-20 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |
Bottom roller bearings are used for supporting bottom roller in ring spinning frames and speed frames of textile industries. Every bearing is ground to strict quality norms which ensures accurate running of the bearing.with 'm'section nylon cage.;these bearings can be found in hydroelectric generators ,vertical motors ,propeller axle of vessels ,tower cranes and squeezing presses.

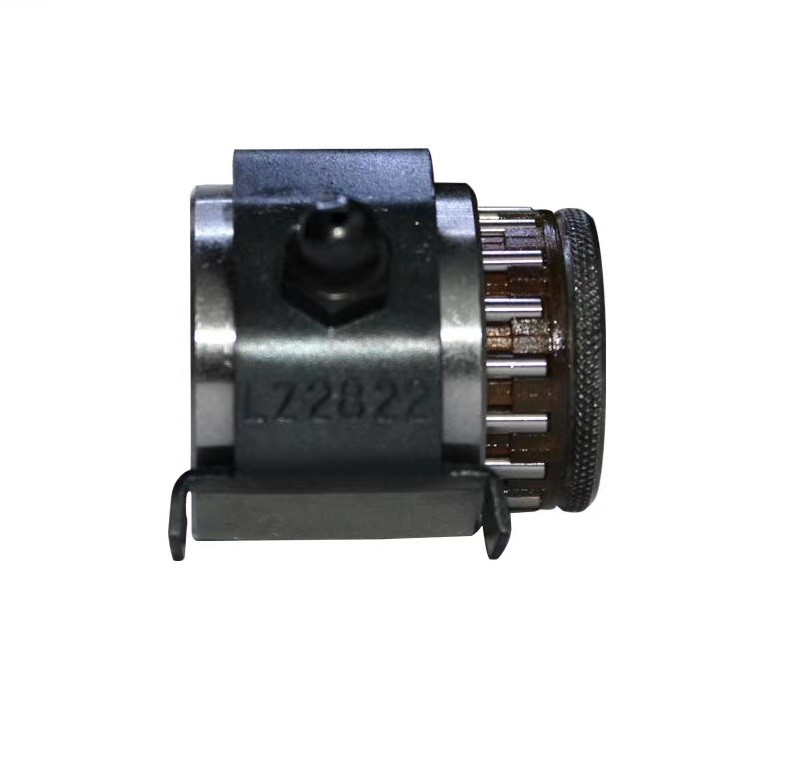

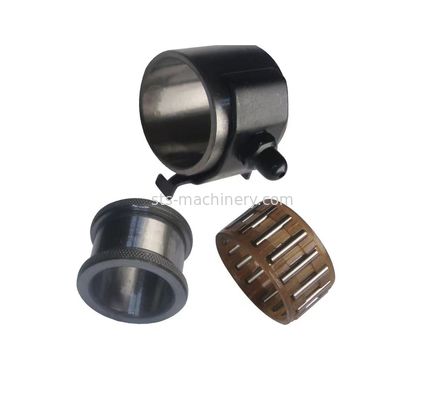

These are needle roller bearings that support the bottom rollers (fluted rollers) on fine spinning machines, roving frames or drawing frames.
| Model No. | d (mm) | D (mm) | B (mm) | B1 (mm) | L/N |
| UL11.28 | 14.2 | 28 | 10.2 | 18 | 22.5 |
| UL28-0211159 | 15 | 28 | 13 | 23 | 24.2 |
| UL28-0021164 | 16 | 28 | 13 | 23 | 24.2 |
| UZ282 | 16.295 | 28 | 17 | 20 | 5.9 |
| UL32-023114 | 16.295 | 32 | 17 | 20 | 5.9 |
| UL28-003590 | 16.5 | 28 | 19 | 22 | 5.9 |
| UL28-000416 | 16.5 | 28 | 19 | 22 | 20.2 |
| UL28-000417 | 16.5 | 28 | 19 | 22 | 22.2 |
| UL28-000418 | 16.5 | 28 | 19 | 22 | 24.2 |
| UL28-0010047 | 16.5 | 28 | 19 | 22 | 26.2 |
| UL28-0010080 | 16.5 | 28 | 23 | 23 | 22.2 |
| UL28-0010083 | 16.5 | 28 | 23 | 23 | 24.2 |
| UZ 32 - STR | 16.5 | 32 | 19 | 23 | 20.6 |
| UL32-019169 | 18.5 | 32 | 19 | 22 | 5.9 |
| UL30-0007871 | 18.5 | 30 | 19 | 22 | 5.9 |
| UL30-028276 | 18.5 | 30 | 19 | 22 | 5.9 |
| UL30 - 003665 | 18.5 | 30 | 19 | 22 | 5.9 |
| UL30-002610 | 18.5 | 30 | 19 | 22 | 22.2 |
| UL30-0018195 | 18.5 | 30 | 19 | 22 | 26.2 |
| UL36-014782 | 18.5 | 36 | 19 | 22 | 5.9 |
| UL32-0013400 | 19 | 32 | 20 | 23 | 5.9 |
| UL32-0015143 | |||||
| UL32-000421 | 19 | 32 | 20 | 23 | 22.2 |
| UL32-000422 | 19 | 32 | 20 | 23 | 24.2 |
| UL32-000423 | 19 | 32 | 20 | 23 | 25.2 |
| UL32-0012499 | 19 | 32 | 20 | 23 | 26.2 |
| UN3210-1D | 19 | 32 | 20 | 23 | - |
| UN3210-2D | 19 | 32 | 20 | 23 | - |
| UL36-0016442 | 21 | 36 | 22 | 25 | 5.9 |
| UL 40 - 025408 | 23 | 40 | 21 | 24 | 5.9 |
| UL32-036128 | " | 32 | " | 22 | 5.9 |
