| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-10 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |

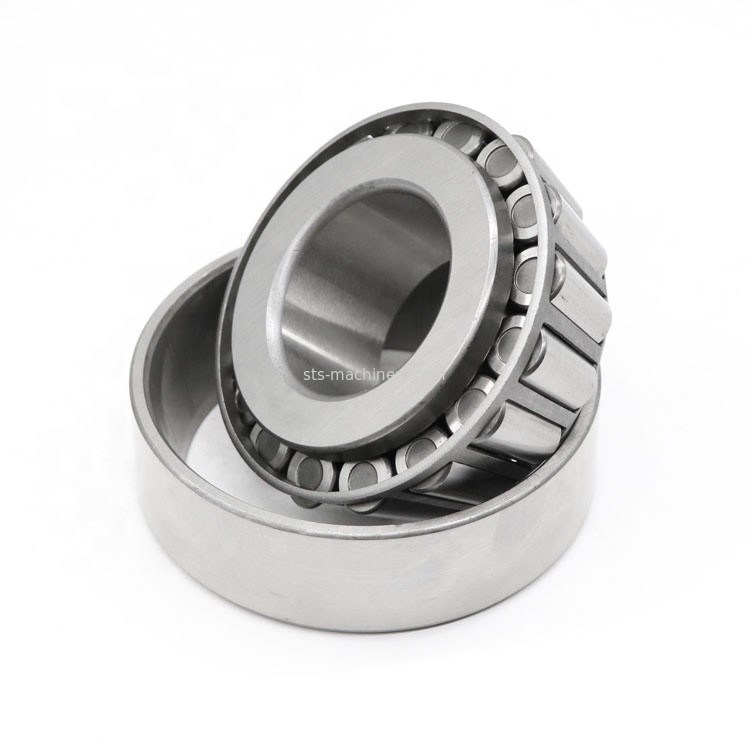

Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation.
We supply Single row tapered roller bearings, Double row tapered roller bearings, Four row taperedroller bearings.
Applications
Single row tapered roller bearings are typically used in applications with combined loads. Single row tapered roller bearings can also be used in sets. Single row tapered roller bearings can be matched face-to-face, back-to-back or in tandem to deliver specific advantages depending on operating conditions.
Double row tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills and machines in the mining industry.
Four row tapered roller bearings are used almost exclusively in work roll applications such as rolling mills.
Technical specification
Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
| ANSI Standard* | DIN 620* | ISO 492* |
| ABEC 1 | P0 | Class Normal |
| ABEC 3 | P6 | Class 6 |
| ABEC 5 | P5 | Class 5 |
| ABEC 7 | P4 | Class 4 |
| ABEC 9 | P2 | Class 2 |
| Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | |||||||
| d | D | B | C | T | r min |
r1 min |
C | Co | kg | |
| H715345/H715311 | 71.438 | 136.525 | 46.038 | 36.512 | 46.038 | 3.50 | 3.3 | 232.00 | 368.00 | 3.053 |
| HH221449/HH221410 | 101.600 | 190.500 | 57.531 | 46.038 | 57.150 | 8.00 | 3.3 | 445.00 | 610.00 | 6.890 |
| HM88649/HM88610 | 34.925 | 72.233 | 25.400 | 19.842 | 25.400 | 2.30 | 2.3 | 58.00 | 69.00 | 0.491 |
| HM89449/HM89410 | 36.512 | 76.200 | 28.575 | 23.020 | 29.370 | 3.50 | 3.3 | 106.10 | 79.20 | 0.620 |
| HM212047/HM212011 | 63.500 | 122.238 | 38.354 | 29.718 | 38.100 | 7.00 | 3.3 | 187.00 | 244.00 | 1.340 |
| HM212049/HM212011 | 66.675 | 122.238 | 38.354 | 29.718 | 38.100 | 3.50 | 3.3 | 187.00 | 244.00 | 1.850 |
| HM518445/HM518410 | 88.900 | 152.400 | 39.688 | 30.162 | 39.688 | 6.40 | 3.3 | 253.00 | 365.00 | 2.110 |
| HM218248/HM218210 | 89.974 | 146.975 | 40.000 | 40.000 | 32.500 | 7.00 | 3.5 | 227.00 | 340.00 | 2.550 |
| HM220149/HM220110 | 99.975 | 156.975 | 42.000 | 34.000 | 42.000 | 8.00 | 3.5 | 298.00 | 410.00 | 2.860 |
| J16154/J16285 | 39.000 | 72.014 | 20.638 | 16.637 | 21.400 | 3.10 | 1.1 | 74.42 | 56.01 | 0.354 |
| JL69349/JL69310 | 38.000 | 63.000 | 17.000 | 13.500 | 17.000 | 3.50 | 1.3 | 39.00 | 53.00 | 0.199 |
| JL819349/JL819310 | 95.000 | 135.000 | 20.000 | 14.000 | 20.000 | 4.50 | 2.0 | 133.00 | 69.20 | 0.830 |
| JLM104948/JLM104910 | 50.000 | 82.000 | 21.501 | 17.000 | 21.501 | 3.00 | 0.5 | 70.00 | 94.00 | 0.419 |
| JLM813049/JLM813010 | 70.000 | 110.000 | 25.000 | 20.500 | 26.000 | 1.00 | 2.5 | 102.00 | 156.00 | 0.868 |
| JM205149A/JM205110 | 50.000 | 90.000 | 28.000 | 23.000 | 28.000 | 3.00 | 2.5 | 105.00 | 138.00 | 0.720 |
| JM207049A/JM207010 | 55.000 | 95.000 | 29.000 | 23.500 | 29.000 | 6.00 | 2.5 | 110.00 | 150.00 | 0.256 |
| JM515649/10 | 80.000 | 130.000 | 34.000 | 28.500 | 35.000 | 3.20 | 2.5 | 252.00 | 151.00 | 1.749 |
| JM716649/JM716610 | 85.000 | 130.000 | 29.000 | 24.000 | 30.000 | 3.00 | 2.5 | 135.00 | 214.00 | 1.348 |
| JM720249/JM720210 | 100.000 | 155.000 | 35.000 | 28.000 | 36.000 | 3.00 | 2.5 | 235.00 | 370.00 | 2.380 |
| JM822049/JM822010 | 110.000 | 165.000 | 35.000 | 26.500 | 35.000 | 3.00 | 2.5 | 191.00 | 315.00 | 2.443 |
| JP12049/12010 | 120.000 | 170.000 | 25.000 | 19.500 | 27.000 | 1.742 | ||||
| K-HM518445/K-HM518410 | 88.900 | 152.400 | 39.688 | 30.162 | 39.688 | 6.40 | 3.3 | 361.20 | 242.40 | 2.850 |
| L44643/10 | 25.400 | 50.292 | 14.732 | 10.668 | 14.224 | 1.30 | 1.3 | 32.20 | 27.80 | 0.126 |
| L44649/10 | 26.988 | 50.292 | 14.732 | 10.668 | 14.224 | 3.50 | 1.3 | 32.20 | 27.80 | 0.119 |
| L45449/10 | 29.000 | 50.292 | 14.732 | 10.668 | 14.224 | 3.50 | 1.3 | 34.00 | 24.80 | 0.113 |
| L68149/L68111 | 34.988 | 59.974 | 16.764 | 11.938 | 15.875 | 3.90 | 1.3 | 47.50 | 35.30 | 0.180 |
| LM11749/LM11710 | 17.462 | 39.878 | 14.605 | 10.668 | 13.843 | 1.30 | 1.3 | 22.60 | 22.50 | 0.080 |
| LM11949/LM11910 | 19.050 | 45.237 | 16.637 | 12.065 | 15.494 | 1.30 | 1.3 | 30.00 | 29.00 | 0.120 |
| LM67048/LM67010 | 31.750 | 59.131 | 16.764 | 11.811 | 15.875 | 5.00 | 1.3 | 32.00 | 36.00 | 0.175 |
| LM48548/LM48510 | 34.925 | 65.088 | 18.288 | 13.970 | 18.034 | 4.90 | 1.3 | 47.00 | 56.00 | 0.246 |
| LM48549X/10 | 34.925 | 65.088 | 18.288 | 13.970 | 18.034 | 2.36 | 1.3 | 57.50 | 46.00 | 0.257 |
| LM29749/LM29710 | 38.100 | 65.088 | 18.288 | 13.970 | 18.034 | 2.30 | 1.3 | 44.00 | 57.00 | 0.238 |
| LM29749/LM29711 | 38.100 | 65.088 | 18.288 | 15.748 | 19.812 | 2.30 | 1.3 | 44.00 | 57.00 | 0.251 |
| LM300849/LM300811 | 40.988 | 67.975 | 18.000 | 13.500 | 17.500 | 3.50 | 1.5 | 62.10 | 43.50 | 0.243 |
| LM501349/LM501310 | 41.275 | 73.431 | 19.812 | 14.732 | 19.558 | 3.50 | 0.8 | 56.00 | 70.00 | 0.335 |
| LM501349/LM501314 | 41.275 | 73.431 | 19.812 | 16.604 | 21.430 | 3.50 | 0.8 | 56.00 | 70.00 | 0.323 |
| LM102949/10 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 3.50 | 0.8 | 79.00 | 51.40 | 0.308 |
| LM603049/LM603011 | 45.242 | 77.788 | 19.842 | 15.080 | 19.842 | 3.50 | 0.8 | 72.30 | 56.50 | 0.365 |
| LM603049/LM603012 | 45.242 | 77.788 | 19.842 | 16.667 | 21.430 | 3.50 | 0.8 | 58.00 | 74.00 | 0.377 |
| LM603049/LM603014 | 45.242 | 79.974 | 19.842 | 15.080 | 19.842 | 0.398 | ||||
| LM603049A/LM603014 | 45.242 | 79.974 | 19.842 | 15.080 | 19.842 | 0.80 | 1.0 | 73.80 | 57.60 | 0.398 |
| LM104949/LM104910 | 50.800 | 82.550 | 22.225 | 16.510 | 21.590 | 3.50 | 1.3 | 70.00 | 94.00 | 0.419 |
| M12649/10 | 21.430 | 50.005 | 18.288 | 13.970 | 17.526 | 0.172 | ||||
| M86647/M86610 | 28.575 | 64.292 | 21.433 | 16.670 | 21.433 | 1.50 | 1.5 | 64.00 | 53.00 | 0.350 |
| M88043/M88010 | 30.162 | 68.262 | 22.225 | 17.462 | 22.225 | 2.30 | 1.5 | 71.40 | 56.20 | 0.407 |
| M88649/M88610 | 30.162 | 64.292 | 21.433 | 16.670 | 21.433 | 1.50 | 1.5 | 47.00 | 56.00 | 0.338 |
| M5R2-124 | 39.688 | 89.980 | 22.128 | 20.856 | 25.580 | 5.00 | 2.5 | 59.00 | 124.00 | 0.747 |
| M802048/M802011 | 41.275 | 82.550 | 25.645 | 20.193 | 26.543 | 3.50 | 3.3 | 81.00 | 104.00 | 0.623 |
| TR081004 | 40.000 | 95.000 | 36.000 | 28.000 | 36.250 | 2.50 | 20 | 139.00 | 167.00 | 1.000 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
