| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-200 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |

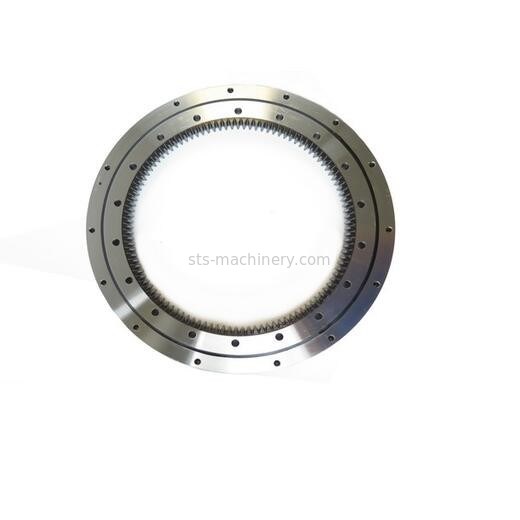

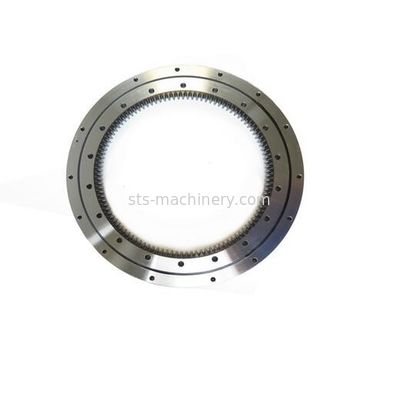

Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar. Because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.
| Model | Boundary dimensions(mm) | Inner ring | Outer ring |
Mounting dimensions (mm) |
basic dynamic load rating(N) |
basic static |
Mass (g) |
||||||
| d | D | B | (1) rmin |
PCD1 | Mounting holes | PCD2 | Mounting holes | da | Da | C | C0 | ||
| CRBTF105AT | 10 | 43 | 5 | 0.15 | 16 | 6-M2.5 through | 35 | 6-Φ2.9 through Φ5.5 counter bore depth2.8 |
21.5 | 28 | 1500 | 1410 | 46 |
| CRBTF205 AT | 20 | 53 | 5 | 0.15 | 26 | 6-M2.5 through | 45 | 6-Φ2.9 through Φ5.5 counter bore depth2.8 |
31.5 | 38 | 1890 | 2150 | 66 |
| CRBTF305AT | 30 | 63 | 5 | 0.15 | 36 | 8-M2.5 through | 55 | 8-Φ2.9 through Φ5.5 counter bore depth2.8 |
41.5 | 47.5 | 2140 | 2750 | 83 |
| CRBTF405AT | 40 | 73 | 5 | 0.15 | 46 | 8-M2.5 through | 65 | 8-Φ2.9 through Φ5.5 counter bore depth2.8 |
51.5 | 58 | 2440 | 3490 | 103 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
