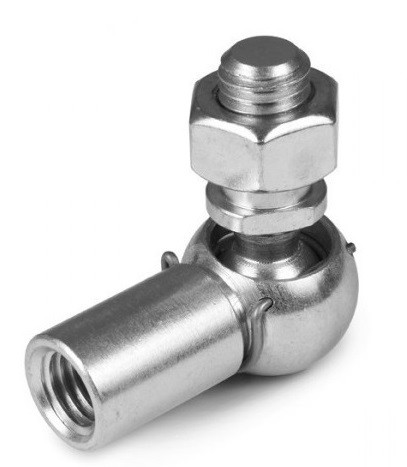

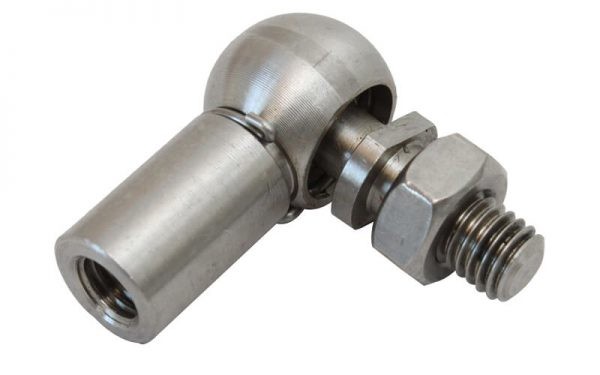

Angle Joints DIN71802 For Pneumatic Cylinder

Basic Information
Place of Origin: China
Certification: ISO
Model Number: DIN71802
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

AS/BS/CS type with safety clip on the ball housing

Spanner surface for type C and CS on the ball stud

Ball housing with or without spanner surface upon request.

With or without sealing cap upon request.

Left-hand thread in the housing possible.

Product Parameters

Ball housing,low carbon steel,zinc plated,yellow/clear or white-blue passivated.

Ball stud,low carbon steel,zinc plated,yellow/clear or white-blue passivated.

Clip,spring steel.

Alternative:stainless steel.

Special type upon request.
Dimensions are in mm.

Angle Joints DIN71802 For Pneumatic Cylinder
Angle Joints DIN71802 For Pneumatic Cylinder
Angle Joints DIN71802 For Pneumatic Cylinder



Ball Dia d1 d2 I2 I3 e d5 I1 a WAF Weight
Kg/1000pcs for type
h9   ±0.3 ±0.3 Min. h11 ±0.2 ±0.3 h14 A and AS B and BS
C and CS
8 M5 10.2 9 10.2 5 4 22 7 15.2 12.85
7.5 13.35
10 M6 12.5 11 11.5 6 4.5 25 8 25.2 21.3
8 22
13 M8 16.5 13 14 8 5 30 11 53.1 43.1
10 45
16 M10 20 16 15.5 10 6 35 13 103.8 82.3
M12 13 86.6
19 M14 28 20 21.5 14 12 45 16 220.9 181
M16 18 188.7
