SQ Series Ball Joint Rod Ends Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SQ
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

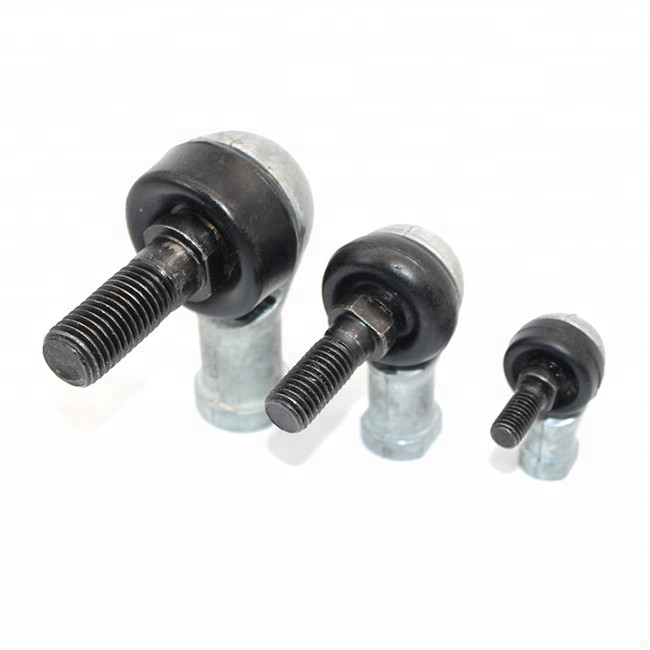

Ball joints with metric and inch threads are commonly used on control linkages in automotive, marine, and construction and industrial equipment applications.

There are DIN,SAE and ISO standard ball joints, you can consult us in regarding these dimensional and technical data.

SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
Product Parameters

Technical specification

Housing,High strength zinc alloy;

Ball,bearing steel GCr15,equivalent to steel SAE 52100 ;

Shank,alloy steel 40Cr;

Dust Cover,NBR rubber

Left hand thread,please add suffix'L',e.g. SQL10D

SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)



SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)
Bearing No. L D M Thread S1 L1 l L 2 d1 D2 W d2 M1 M2 l1 d4 Da Static load
capacity KN
Yield strength
KN
SQ5D 35 16 29.0 M5X0.8 27 14 4.0 9 11 9 5 21 10 8 9 11.112 9.22 2.25
SQ6D 40 19 35.5 M6X1 30 14 5.0 10 13 11 6 26 11 11 10 12.700 12.10 3.53
SQ8D 48 23 42.5 M8X1.25 36 17 5.0 12.5 16 14 8 31 14 12 12 15.875 19.10 6.57
SQ10D 57 27 50.5 M10X1.25 43 21 6.5 15 19 17 10 37 17 15 14 19.050 27.50 10.70
SQ10BD 57 27 56.5 M10X1.5 43 21 6.5 15 19 17 10 43 17 21 14 19.050 27.50 10.70
SQ12D 66 31 57.5 M12X1.25 50 25 6.5 17.5 22 19 12 42 19 17 19 22.225 37.50 16.40
SQ12BD 66 31 64.5 M12X1.75 50 25 6.5 17.5 22 19 12 49 19 24 19 22.225 37.50 16.40
SQ14D 75 35 73.5 M14X1.5 57 26 8.0 20 25 22 14 56 21.5 22 19 25.400 48.90 19.80
SQ14BD 75 35 79.5 M14X2 57 26 8.0 20 25 22 14 62 21.5 28 19 25.400 48.90 19.80
SQ16D 84 39 79.5 M16X1.5 64 32 8.0 22 27 22 16 60 23.5 23 22 25.400 48.90 26.90
SQ16BD 84 39 85.5 M16X2 64 32 8.0 22 27 22 16 66 23.5 29 22 25.400 48.90 26.90
SQ18D 93 44 90.0 M18X1.5 71 34 10.0 25 31 27 18 68 26.5 25 23 28.575 61.90 33.30
SQ20D 99 44 90.0 M20X1.5 77 35 10.0 27.5 34 30 20 68 27 25 29 28.575 61.90 45.90
SQ22D 109 50 95.0 M22X1.5 84 41 12.0 30 37 32 22 70 28 26 27 31.750 75.40 48.00
Packaging & Shipping

SQ Series Ball Joint Rod Ends  Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D SQ20D SQ22D)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
