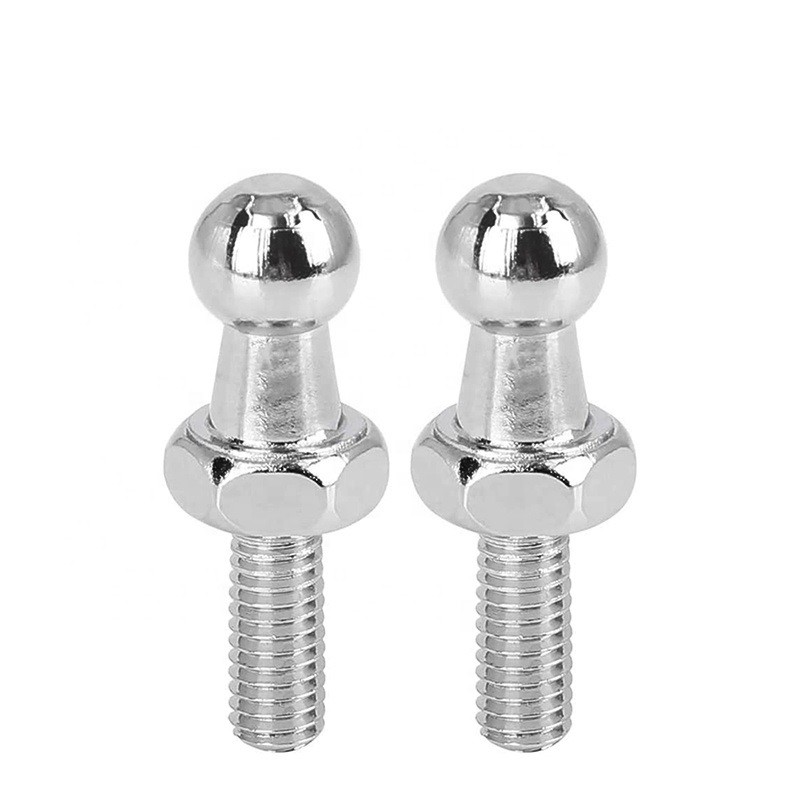

Low Carbon Steel /Stainless Steel Ball Stud DIN71803

Basic Information
Place of Origin: China
Certification: ISO
Model Number: DIN71803
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

There are Angle Joints DIN71802,Stainless Steel Angle Joint DIN71802,Hexagonal Ball Joints DIN71802,Angle Joints-Long version,Axial Joints similar to DIN71802,Ball Socket DIN71805,Ball Stud DIN71803,Special Ball Socket with slit and customized types.

Low Carbon Steel /Stainless Steel Ball Stud DIN71803
Low Carbon Steel /Stainless Steel Ball Stud DIN71803
Low Carbon Steel /Stainless Steel Ball Stud DIN71803
Low Carbon Steel /Stainless Steel Ball Stud DIN71803
Low Carbon Steel /Stainless Steel Ball Stud DIN71803
Low Carbon Steel /Stainless Steel Ball Stud DIN71803



Product Parameters

Material: Low carbon steel,
Alternative, stainless steel 304 or 316.
Ball hardened ≥52HRC or≥550HV 30.
Surface protection, zinc plate, withe/white-blue or yellow passivated.
Left hand thread in the housing are available.
Special versions upon request.

Dimensions are in mm.

Low Carbon Steel /Stainless Steel Ball Stud DIN71803
Low Carbon Steel /Stainless Steel Ball Stud DIN71803
Low Carbon Steel /Stainless Steel Ball Stud DIN71803

d1 d2 l1 c d3 d5 d6 l2 l3 l4 l5 SW Weight
Kg/1000pcs
h9 ±0.2 0.4/0 h14 h11 0/-0.4 ±0.3 ±0.3 ±0.3 max h14 A and C B
8 M5 4 2 8 5 3 10.2 9 12.5 4 7 4.55 3.85
7.5 4.35
10 M6 4.5 2.2 10 6 4 12.5 11 15.5 4 8 8.50 7.10
8 7.80
13 M8 5 2.4 13 8 6 16.5 13 18.5 5.3 11 17.70 14.20
10 16.00
16 M10 6 2.7 16 10 8 20 16 23 7.3 13 35.10 23.50
M12 13 29.60
19 M14 12 3 19 14 10 28 20 28.5 10.8 16 71.20 56.20
M16 18 63.70
