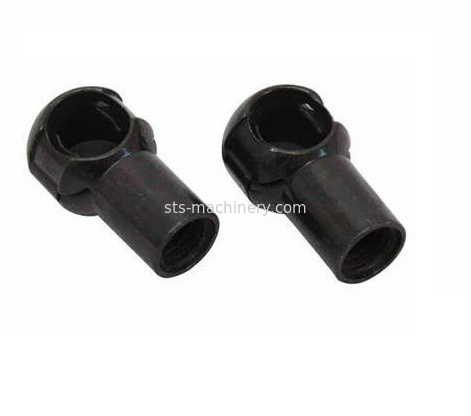

Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: FG
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

There are Angle Joints DIN71802,Stainless Steel Angle Joint DIN71802,Hexagonal Ball Joints DIN71802,Angle Joints-Long version,Axial Joints similar to DIN71802,Ball Socket DIN71805,Ball Stud DIN71803,Special Ball Socket with slit and customized types.

Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)



Product Parameters
Material:
Housing: Carbon steel.
Clip: Spring steel
Surface Treatment: Phosphatized and oiled
Optional: Galvanized, passivated in white-blue or black.

Dimensions are in mm.
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Special Ball Socket With Slit (FG1001 FG1002 FG1003 FG1004 FG1301)
Part No. Ball Dia. length to the center of the ball (a) Thread Depth of Thread e Radial Trigger Force Axial Trigger Force
FG1001 10 18 M6 ≥8 ≥1200 ≥3500
FG1002 10 18 M8 ≥8.5 ≥1200 ≥3500
FG1003 10 19 M6 ≥8.5 ≥1200 ≥3500
FG1004 10 25 M6 11.5 ≥1200 ≥3500
FG1301 13 30 M8 14
FG1302 13 25 M8 9
