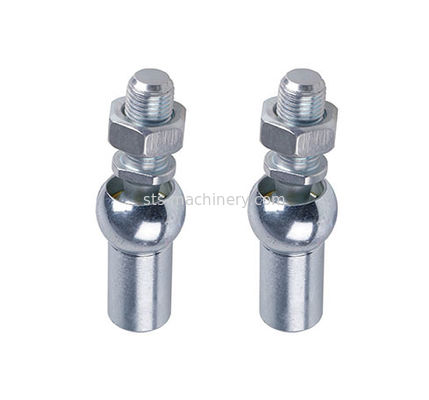

Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints

Basic Information
Place of Origin: China
Certification: ISO
Model Number: DIN71802
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

There are Angle Joints DIN71802,Stainless Steel Angle Joint DIN71802,Hexagonal Ball Joints DIN71802,Angle Joints-Long version,Axial Joints similar to DIN71802,Ball Socket DIN71805,Ball Stud DIN71803,Special Ball Socket with slit and customized types.

Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802



Product Parameters
Material, low carbon steel.
Alternative,stainless steel 304 or 316.
Surface protection, zinc plate, withe/white-blue or yellow passivated.
The manufacturer reserves the right to supply the ball socket with or without spanner surface.
Left hand thread in the housing are available.
Special versions upon request.

Dimensions are in mm.
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802
Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802

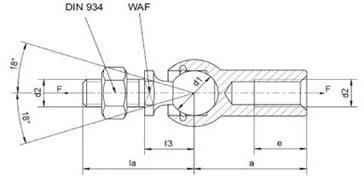

Part No. d1 d2 a la l3 e WAF Extraction force Weight
F in N Kg/pcs
AJ8 8 M5 22 19.2 9 10.2 7 30 0.015
AJ10 10 M6 25 23.5 11 11.5 8 40 0.025
AJ13 13 M8 30 29.5 13 14 11 60 0.053
AJ16 16 M10 35 36 16 15.5 13 80 0.104
AJ19 19 M14x1.5 45 48 20 21.5 16 100 0.221
Packaging & Shipping



Zinc Plate, Withe/White-blue Or Yellow Passivated Axial Joints Similar To DIN71802




Our Advantages


1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
