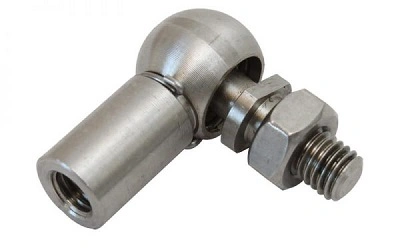

Stainless Steel Angle Joint DIN71802

Basic Information
Place of Origin: China
Certification: ISO
Model Number: DIN71802
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

There are Angle Joints DIN71802,Stainless Steel Angle Joint DIN71802,Hexagonal Ball Joints DIN71802,Angle Joints-Long version,Axial Joints similar to DIN71802,Ball Socket DIN71805,Ball Stud DIN71803,Special Ball Socket with slit and customized types.

Stainless Steel Angle Joint DIN71802
Stainless Steel Angle Joint DIN71802
Stainless Steel Angle Joint DIN71802
Stainless Steel Angle Joint DIN71802
Stainless Steel Angle Joint DIN71802
Stainless Steel Angle Joint DIN71802



Product Parameters

Ball Housing,Stainless steel AISI304,316,316L.

Ball Stud,Stainless steel AISI304,316,316L.

Clip,Stainless steel AISI304,316,etc.

For left-hand thread,please add LH(ex.CS10M6SSLH).

For fine-pitch thread,please add FG(ex.CS16M10SSFG) or CS16M10x1.25SS.

Special type upon request.
Dimensions are in mm.

Stainless Steel Angle Joint DIN71802
Stainless Steel Angle Joint DIN71802
Stainless Steel Angle Joint DIN71802




Ball Dia d1 d2 I2 I3 e d5 I1 a WAF Weight
Kg/1000pcs for type
h9   ±0.3 ±0.3 Min. h11 ±0.2 ±0.3 h14 A and AS B and BS
C and CS
8 M5 10.2 9 10.2 5 4 22 7 15.2 12.85
7.5 13.35
10 M6 12.5 11 11.5 6 4.5 25 8 25.2 21.3
8 22
13 M8 16.5 13 14 8 5 30 11 53.1 43.1
10 45
16 M10 20 16 15.5 10 6 35 13 103.8 82.3
M12 13 86.6
19 M14 28 20 21.5 14 12 45 16 220.9 181
M16 18 188.7
Packaging & Shipping


Stainless Steel Angle Joint DIN71802




Our Advantages


1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
